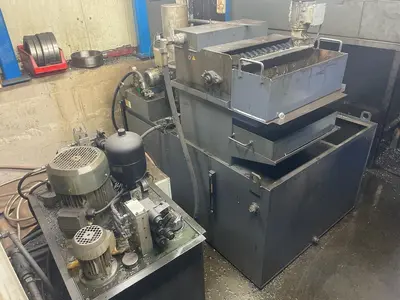

Heidenhain TNC530 CNC ControlChip ConveyorCooling - Low & High PressureA Few Working Tools Included

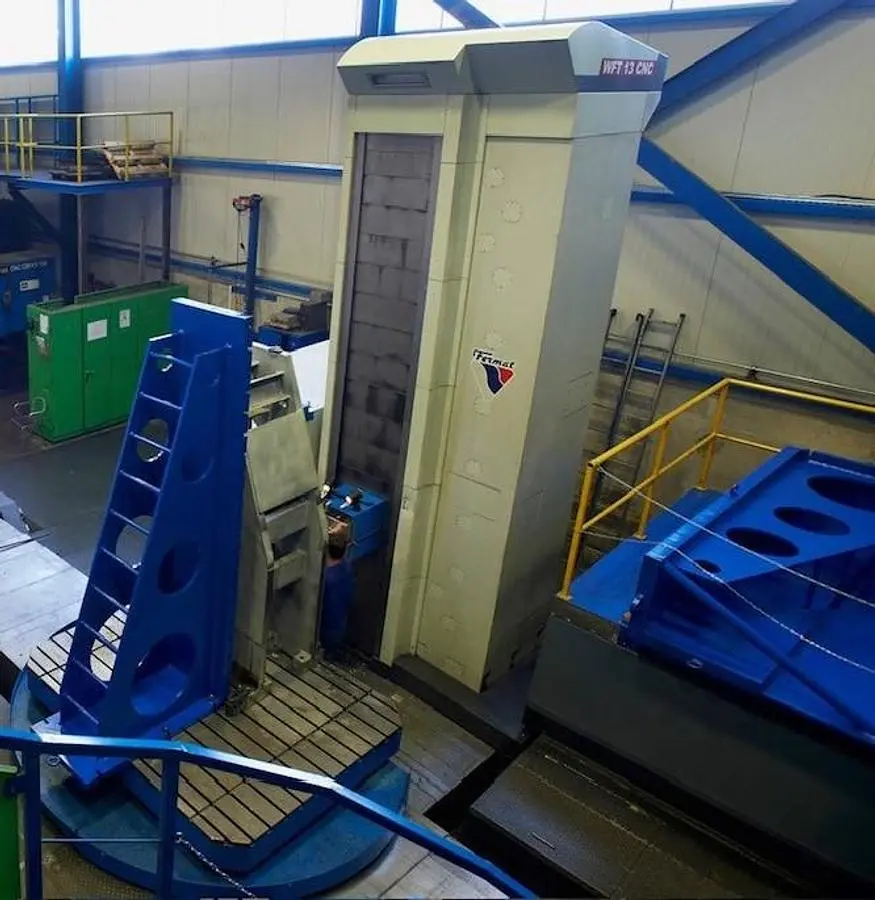

Manufacturer: Fermat
Model: WFT 13
Year: 2012
Condition: Used
Stock Number: 5654350
Spindle diameter: 130 mm
Spindle speeds: 3,000 rpm
X axis travel: 5,000 mm
Y axis travel: 3,500 mm
Z axis travel: 2,000 mm

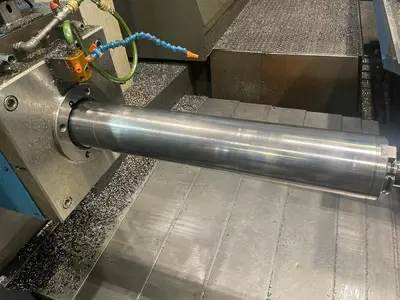

W axis travel (spindle): 730 mm

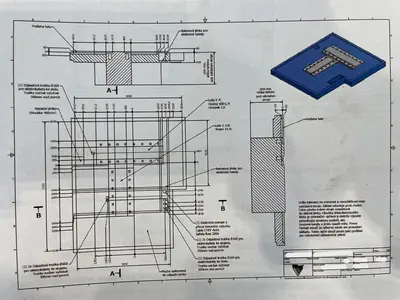

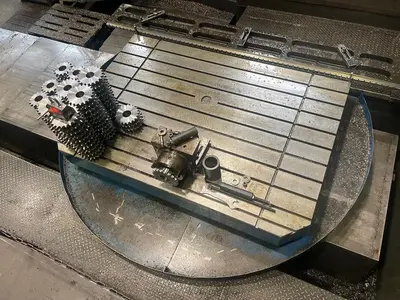

Table dimensions: 2,400 x 2,000 mm
Table capacity: 20,000 kg
Spindle power: 37 kW
Spindle torque: 2008 Nm
Spindle Motor: 37 kVA
Slide dimensions: 400 x 400 mm
Spindle taper: ISO 50 - DIN 69871
Pull studs: DIN 69872
Input: 80 kVA
Machine dimensions: 11.2 x 12.44 x 6.35 m
Machine weight: 58,100 kg
Working feeds: 1 - 8,000 mm/min
Travel speeds X/Y: 12,000 mm/min
Travel speeds Z/W: 10,000 mm/min
