USED 2001 MINSTER MRH20-50S/MSH30-50-7
Overview
Description
MINSTER MRH20-50S/MSH30-50-7 Coil Reels & Straighteners - High Precision Handling
Specifications
Coil Weight: 20000 pounds
Coil Width: 50 inches
Coil Thickness: .180 inches
Minster Coil Feed Line Specifications
Model MRH20-50S / Model MSH40-50-7 / Coil Car Model MCCH-35
High Strength Steel Rated Coil Capacity

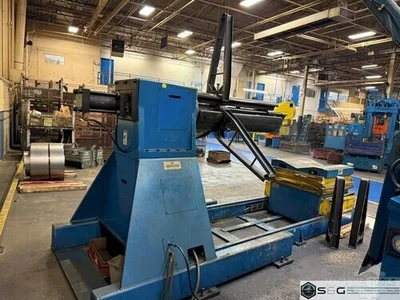

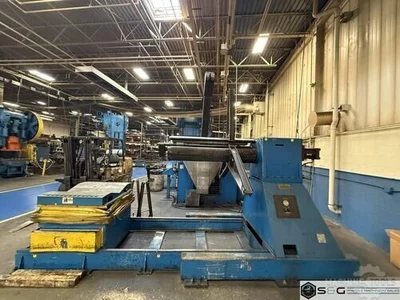

35,000 lbs. Maximum Coil Weight50" Maximum Coil Width2" Minimum Coil Width.025" - .500" Coil Capacity.180" @ 50" Maximum Thickness (40,000 Yield Strength).080" @ 50" Maximum Thickness (100,000 Yield Strength)72" Maximum Coil O.D.20-24" Coil I.D. RangeLeft to Right Feed DirectionMinster Pull Off Coil Reel Model MRH20-50S with Coil Car Model MCCH-35
Three leaf mandrel with coil keeper arms
Hydraulic mandrel expansion
Air brake mounted on main spindle
Adjustable tensioning
Threading drive for jog forward and reverse
Self contained hydraulic pump unit
Traveling coil load car
Powered lift and travel

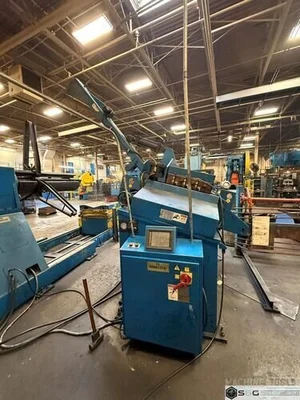

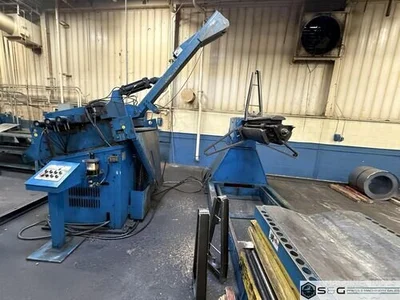

MINSTER Powered Coil Straightener Model No.: MSH-40-50-7
Entry pinch roll assembly x 6.28" diameter
Air operated upper pinch roll adjustment
Seven powered straightener rolls x 4" diameter
Motorized upper straightening roll adjustments
Roll depth display on main HMI
Adjustable stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table with spade extension
Coil end-debender roll
Exit cascade loop support rollers
Automatic lubrication system
Variable speed drive
Operator's control station
Jog forward and reverse w/ remote pendant
End of stock sensor
Auto / Run cycle
Variable speed loop control Contact S&G Press today for premium used Minster coil feed equipment solutions.
Optimize your metal forming operations with this high-performance Minster Coil Feed Line, featuring the MRH20-50S Pull Off Coil Reel and MSH40-50-7 Powered Straightener. Engineered for High Strength Steel (HSS), this heavy-duty system handles a 35,000 lbs. coil capacity and widths up to 50".
The Minster MSH-40-50-7 straightener utilizes seven 4" diameter rolls and motorized adjustments to ensure precision flatness for materials up to .500" thick. Paired with the MCCH-35 Coil Car, this line offers seamless hydraulic loading and advanced loop control.
