USED 2013 FUJI MACHINE AMERICA ANW-35

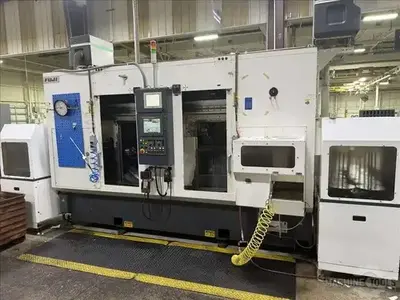

Fuji ANW-35 Twin Spindle CNC Lathe

Max. Swing: 10"
Max. Turning Diameter: 10"
Max. Turning Length: 4.3"
Chuck: (2) 8" 3-Jaw
X-Axis Travel: 8.9"
Z-Axis Travel: 15.9"
Travel Speeds (X & Z): 787 IPM
Number of Spindles: 2 Opposed
Spindle Nose: A2-6
Spindle Bore: 2.2"
Spindle Speed: 30-3500 RPM
Spindle Motor: 25 HP
Each Robot's Capacity: 22 Lbs
Max. Loader Carousel Part Diameter: 10"
Max. Loader Carousel Part Stacked Height: 12"
Operating Time: 8,876 Hours

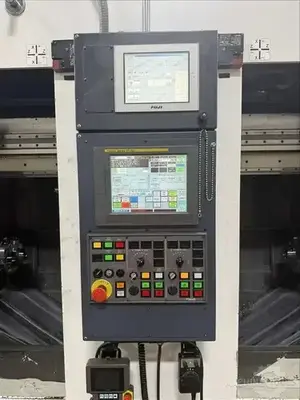

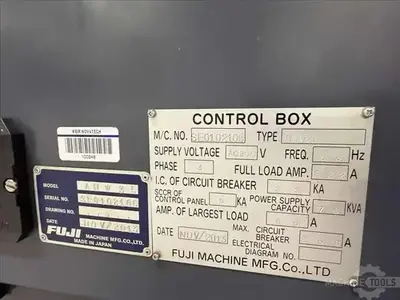

Fanuc 0i-TD CNC Control

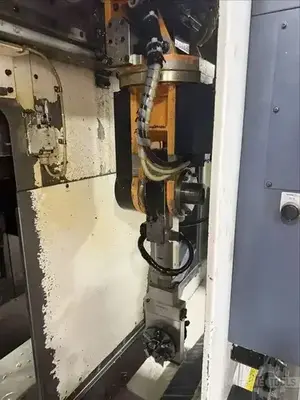

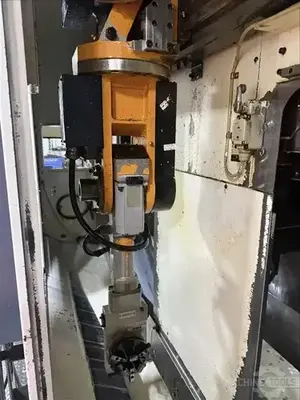

Fuji Robot Loader

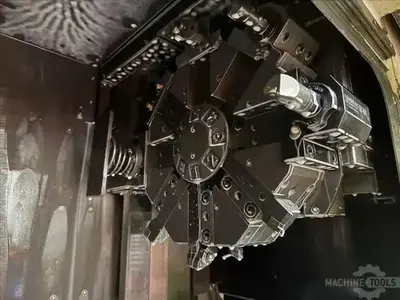

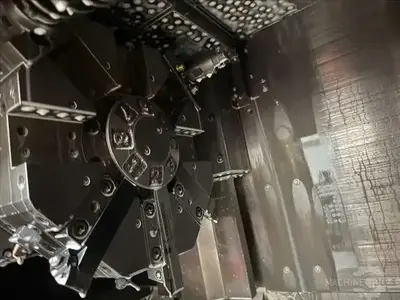

Dual 8-Position Turrets
Hardened and Ground Box Way Construction

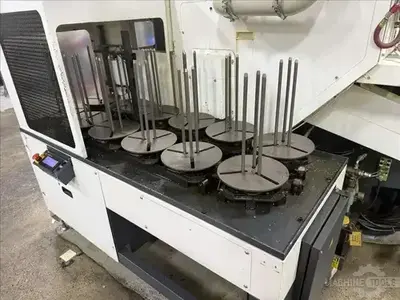

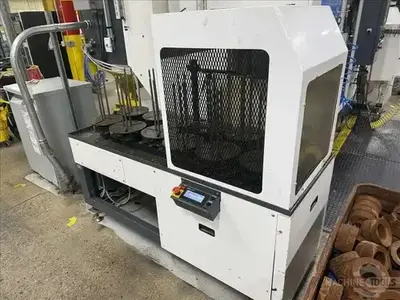

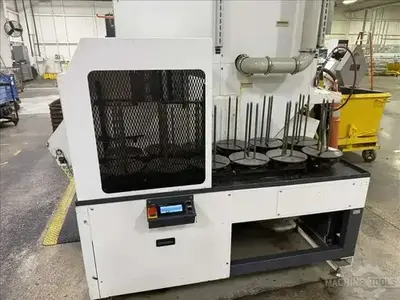

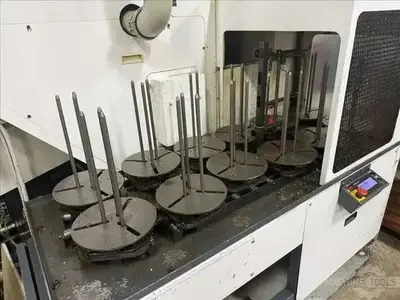

(12) Station Load and Unloader
Chip Conveyor
Coolant System
Parts Catcher
