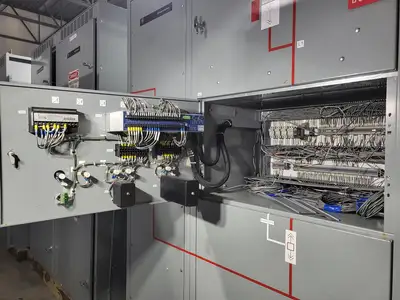

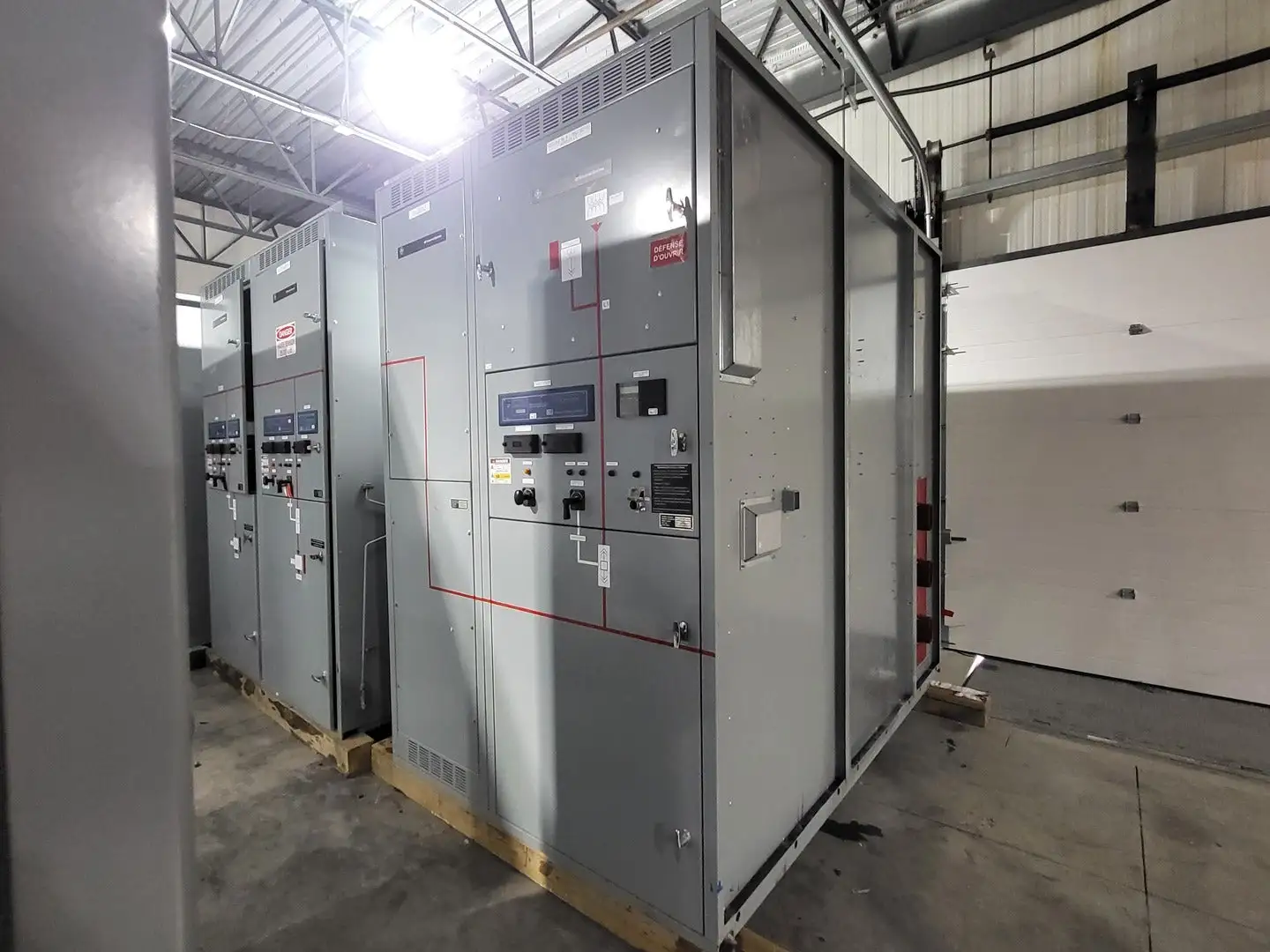

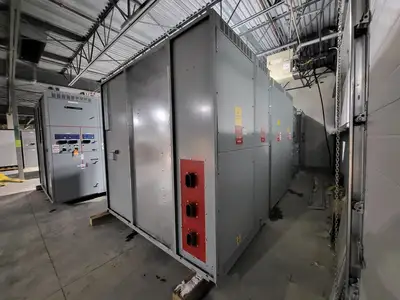

25kV 1200A 3ph Switchgear Unit w/ Power Vac Breaker VB1 27.0-16-0

Amps: 1200 amps
# of Poles: 3
Phase: 3-phase
Voltage Rating: 25000 V
Amp Rating Cont: 1200 A
Short Circuit Rating: 16 kA symmetrical
Phase: 3 ph
BIL: 125 kV
Power Vac Breaker VB1 27.0-16-0
Rated Max Voltage: 28 kV
Rated Amp: 1200 A
Frequency: 60 Hz
Impulse Withstand: 125 kV
Int Time: 5 CYC
Rated Short Circuit Amp: 16 kA
Rated Voltage Range Factor: 1.0
Close & Latch Capability Amp: 42 kA

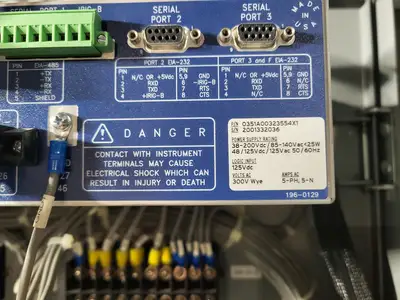

Distribution Protection Relay SEL-351A
Mounting: Panel mount
Ports: Three EIA-232 ports, an EIA-485 port
Outputs: 8 (1 Alarm)
Inputs: 6
Power Supply Rating: 38-200 VDC / 85 - 140 VAC, < 25 Watts
Logic Input: 125 VDC
Current Input: 5 A phase, 5 A neutral

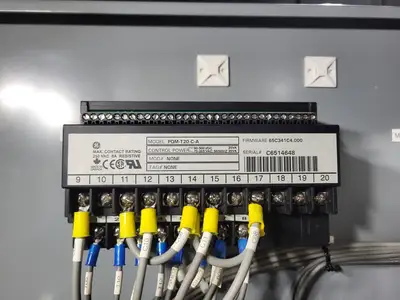

Power Quality Meter PQM-T20-C-A
Control Power: 90 - 300 VDC, 20 VA // 70 - 265 VAC, 20 VA
Additional
(2) ABB Test Switches
