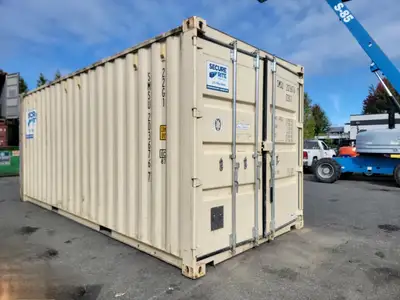

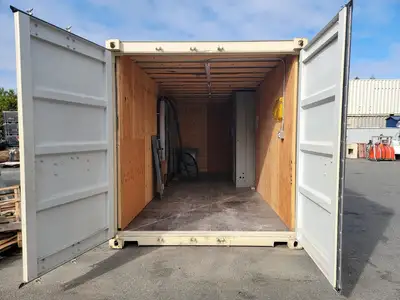

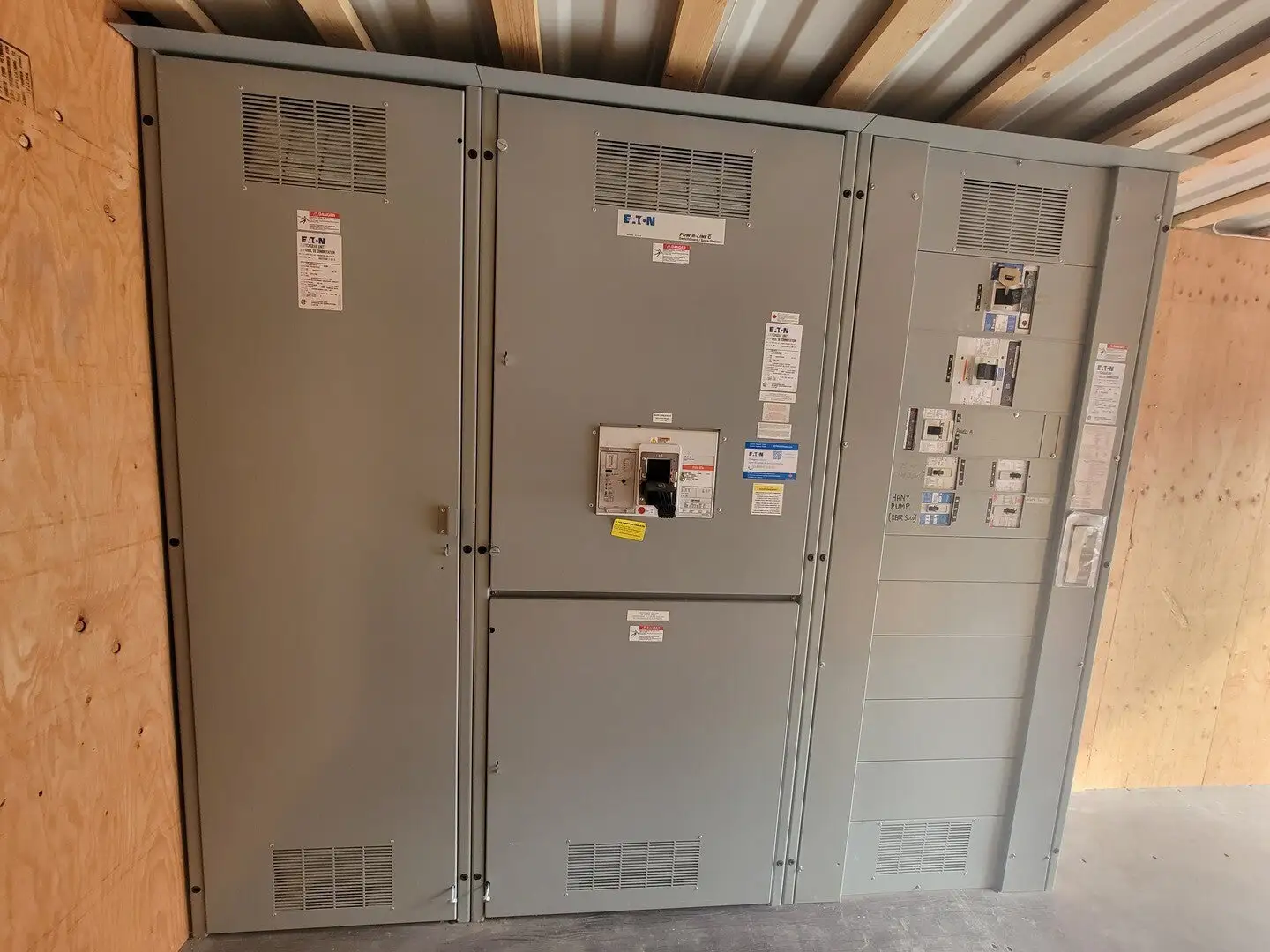

2000A 480Y/277V Eaton Switchgear Power Distribution Center w/ 45kVA Transformer & Panels (Containerized)

Manufacturer: Eaton
Type: Low Voltage Switchgear
Sections: 3 Sections
Bus Rating: 2000 Amps
Voltage: 480Y/277V
Phase: 3 Phase, 4 Wire
Frequency: 60 Hz
Short Circuit Rating: 65 kA
Enclosure Type: Type 2
Manufacturer: Eaton
Model: RGH 65k
Rating: 2000 Amps
Poles: 3 Pole
Voltage Rating: Up to 600V

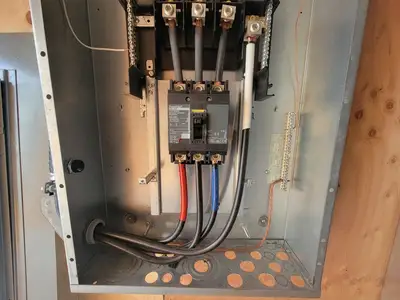

800A - Eaton Series C (HMDL)
400A - Eaton HKD
150A - Eaton FD
90A - Federal Pioneer
60A - Eaton HFD
50A - Eaton HFD
Additional branch breakers installed in panelboards
Manufacturer: Rex Power Magnetics
Capacity: 45 kVA
Phase: 3 Phase
Primary Voltage: 480V Delta
Secondary Voltage: 208Y/120V
Frequency: 60 Hz
Enclosure: Type 3R
Insulation Class: 220°C

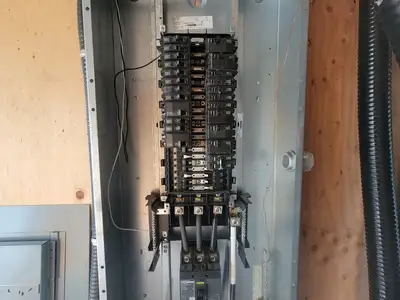

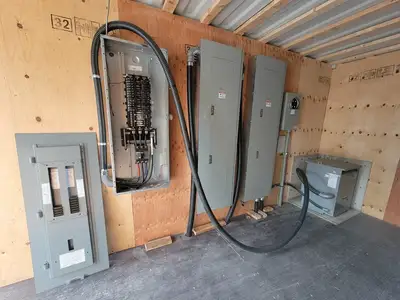

Manufacturer: Square D (Schneider Electric)
Type: NQ / NQOD Panelboards
Enclosure: Type 1
Configuration: Multi-circuit distribution panels
Application: Branch circuit distribution (lighting, receptacles, equipment)
Eaton Meter Socket / Service Entry Section
Pre-installed feeder cabling and conduit
Grounding and bonding system
Fully wired and integrated assembly
