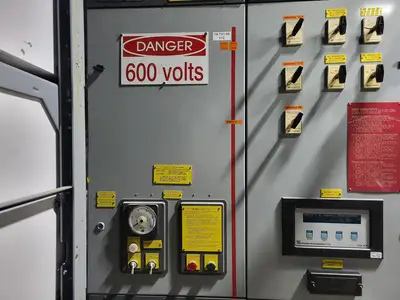

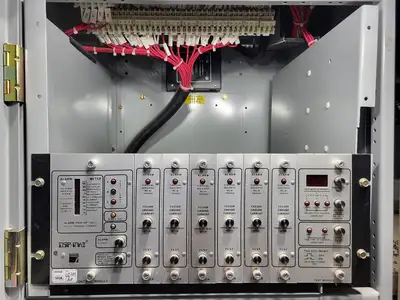

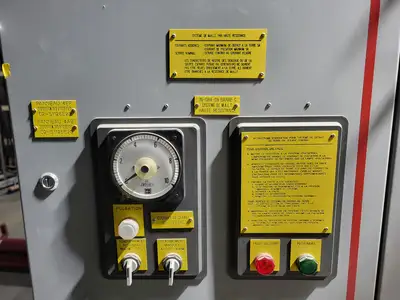

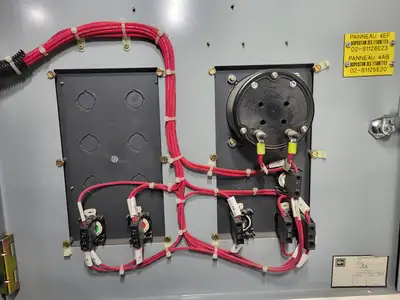

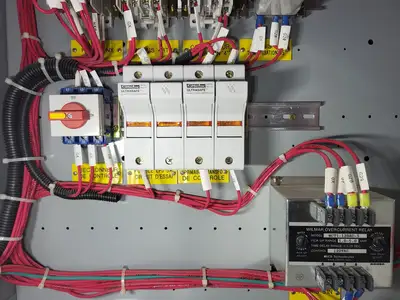

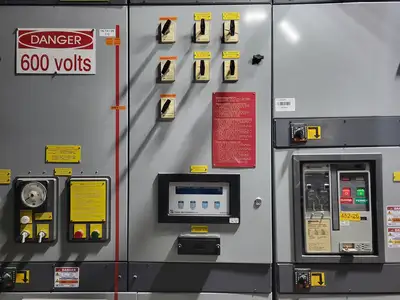

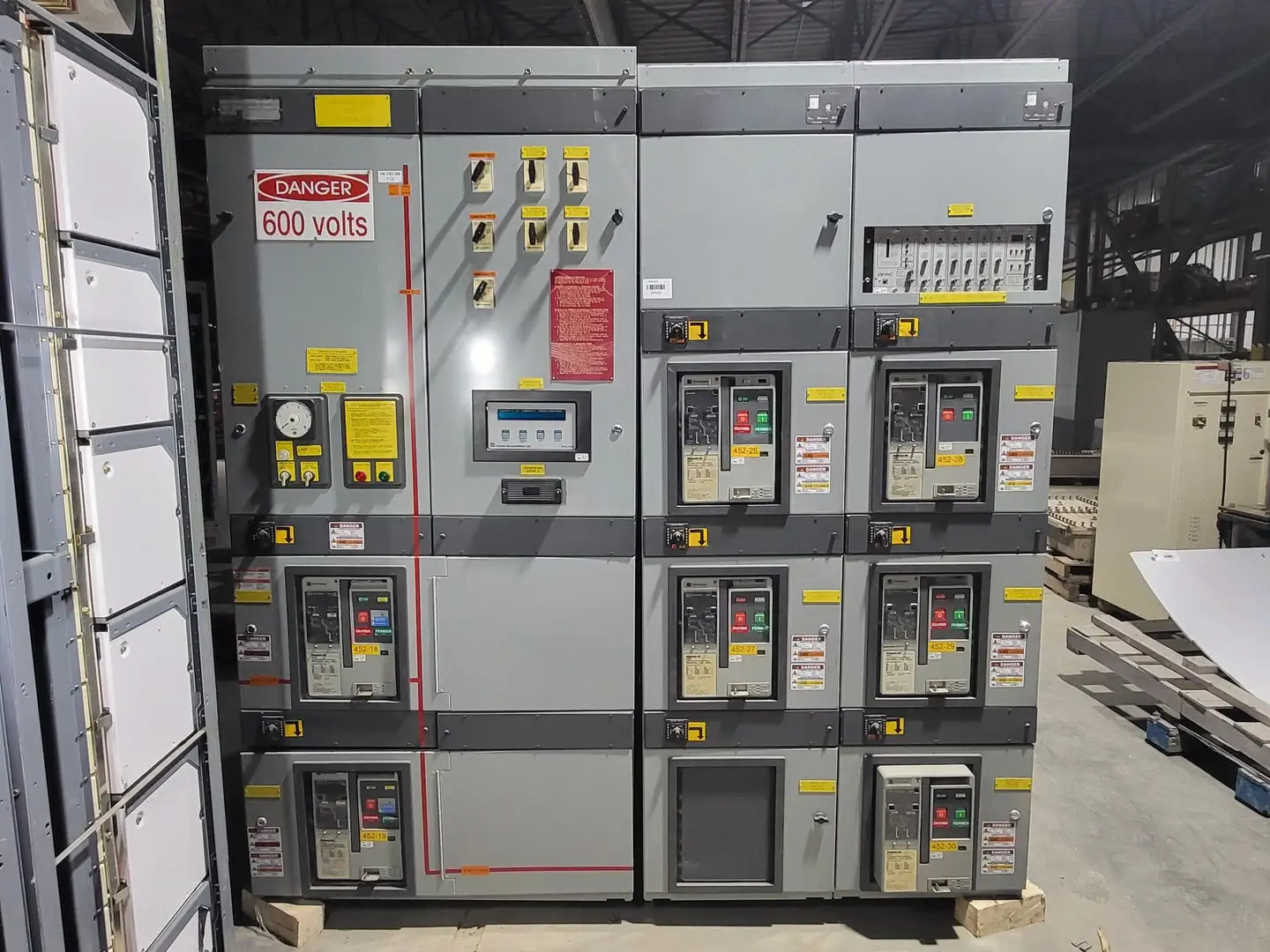

Low Voltage PDC / Switchgear Section, (2) 4000A & (5) 1200A Cutler-Hammer Magnum DS Breakers, 600V 3PH

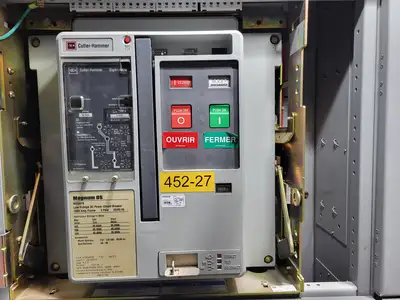

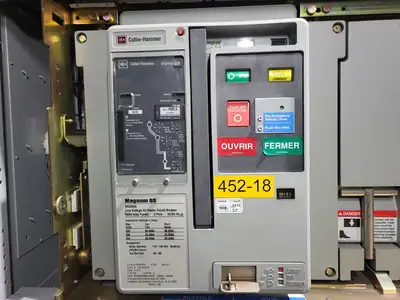

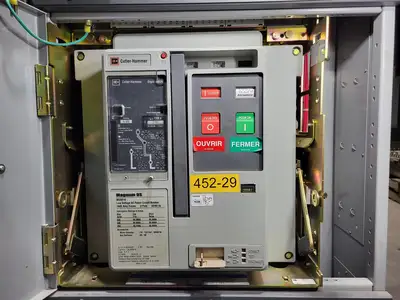

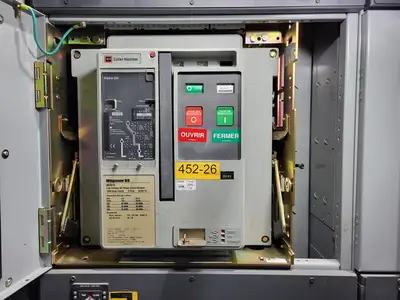

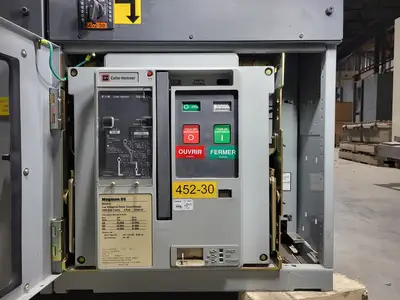

Main Breakers - 4000A (2 x units)
Model: MDS840
Series: Magnum DS
Specs:
Frame Size: 4000 Amp
Poles: 3 Pole
Voltage: 600V Class
Interrupting Rating:
85 kA @ 635V
85 kA @ 508V
85 kA @ 254V
Trip Unit: Digitrip 520
Protection: LSI (Long, Short, Instantaneous)

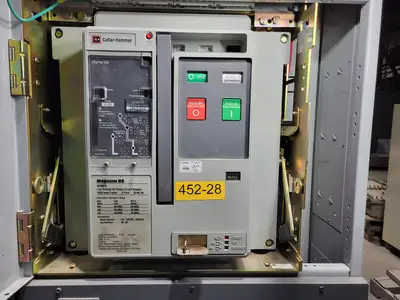

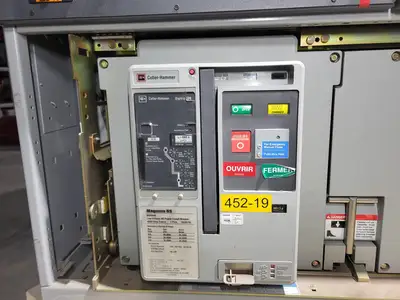

Feeder Breakers - 1200A (5 x units)
Model: MDS616
Series: Magnum DS
Specs:
Frame Size: 1600 Amp
Poles: 3 Pole
Voltage: 600V Class
Interrupting Rating:
65 kA @ 635V
65 kA @ 508V
65 kA @ 254V
Trip Unit: Digitrip 520
Protection: LSIG (Long, Short, Instantaneous, Ground Fault)
