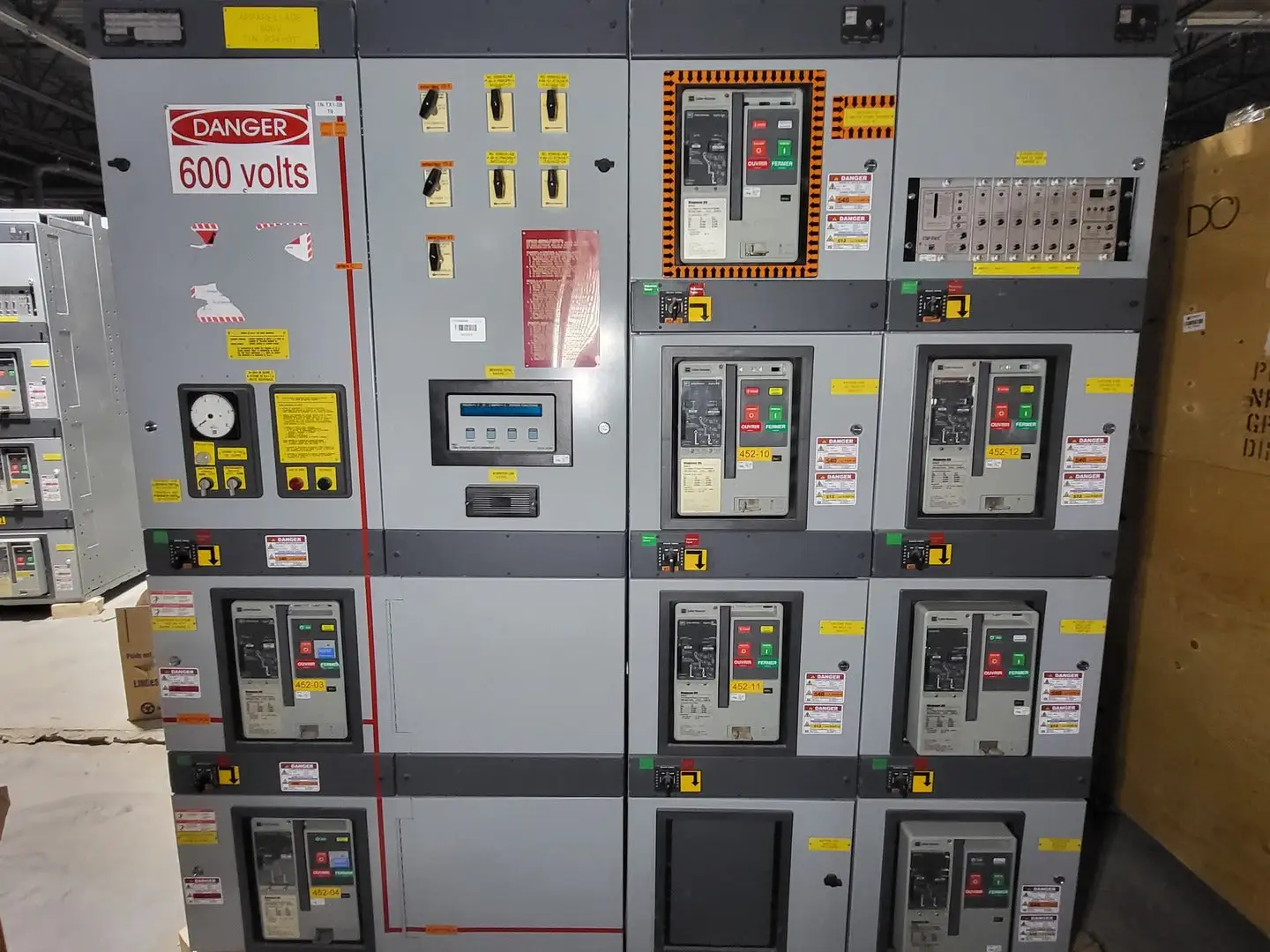

Low Voltage PDC / Switchgear Section, (2) 4000A, (5) 1200A, (1) 800A Magnum DS Breakers, 600V 3PH

Voltage: 600 volts
Frequency: 60 Hz
Phase: 3-phase
Amps: 4000 amps

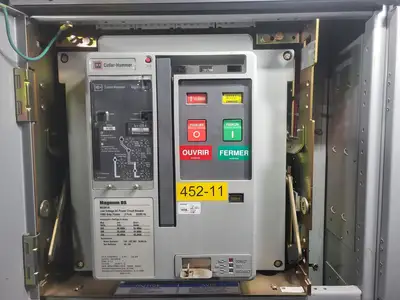

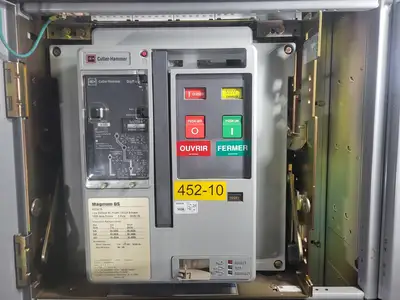

Main Breakers - 4000A (2 x units)
Model: MDS840
Series: Magnum DS
Specs:
Frame Size: 4000 Amp
Poles: 3 Pole
Voltage: 600V Class
Interrupting Rating:
85 kA @ 635V
85 kA @ 508V
85 kA @ 254V
Trip Unit: Digitrip 520, 4000 Amp
Protection: LSI / LSIG (Long, Short, Instantaneous, Ground Fault)
Feeder Breakers - 1200A (5 x units)
Model: MDS616
Series: Magnum DS
Specs:
Frame Size: 1600 Amp
Poles: 3 Pole
Voltage: 600V Class
Interrupting Rating:
65 kA @ 635V
65 kA @ 508V
65 kA @ 254V
Trip Unit: Digitrip 520, 1200 Amp
Protection: LSIG (Long, Short, Instantaneous, Ground Fault)
Feeder Breaker - 400A (1 x unit)
Model: MDS608
Series: Magnum DS
Specs:
Frame Size: 800 Amp
Poles: 3 Pole
Voltage: 600V Class
Interrupting Rating:
65 kA @ 635V
65 kA @ 508V
65 kA @ 254V
Trip Unit: Digitrip 520, 400 Amp
Protection: LSI (Long, Short, Instantaneous)
