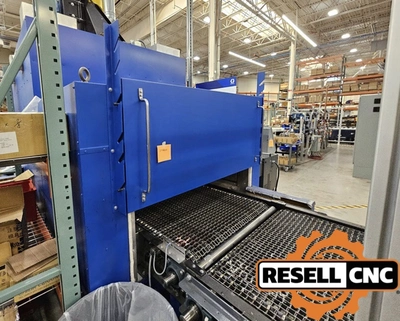

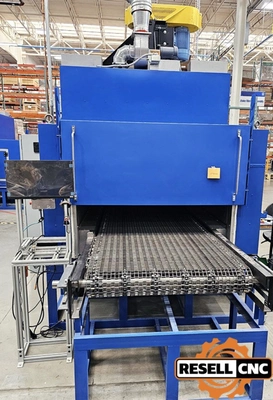

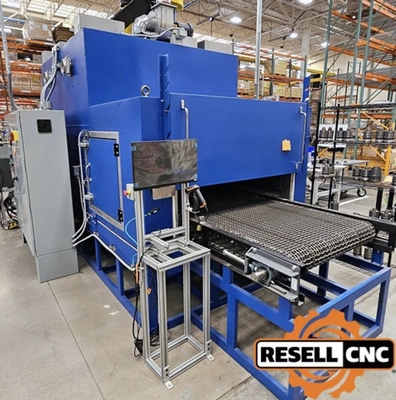

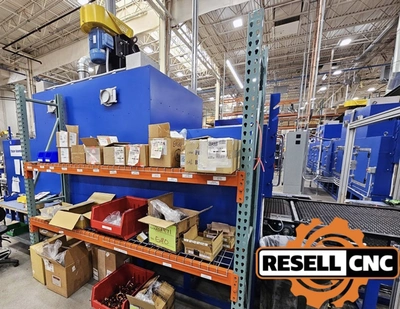

USED 2022 JPW Industrial Oven

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Effective Work Area: 3’6” W x 2’0” H x 14’0” L- Zone

4.5" thick insulated walls, ceiling and floor

CRS exterior painted machine gray

Aluminized interior

Conveyor, 42"w x1x1 heavy duty flatwire with steel support bed 1,000 lb load

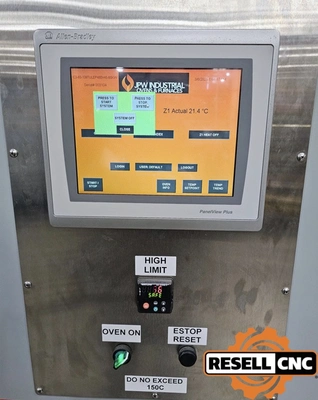

AB PLC with HMI monitoring all devices with communications

Watlow PM High limit

Conveyor speed range of 1.25"-4.0" per minute constant

Product sensor on outlet end to stop conveyor if sensor is made

Adjustable crank doors on inlet and outlet – Max height open of 21"

Skid frame bottom support to raise belt to 36" from floor

Heated Zone operating at 70C-100C +/-3C

Heated zone will have 45KW of heat

UL Control panel 480V/3/60 – Nema 12

Load conveyor – 36" long

Unload conveyor – 36" long

Heated zone 168"lg x 42"w x 24"h

1-high volume recirculation (plug design) 23,000 cfm –with a VFD operating at 18,000 cfm

600 cfm forced exhaust on a VFD

Vertical down airflow

Fused rotary disconnect

E stops at each end of the conveyor

Access doors positioned on the right-hand side

B Axis: false
C Axis: false
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Plant Support Equipment Type: Industrial Ovens
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
