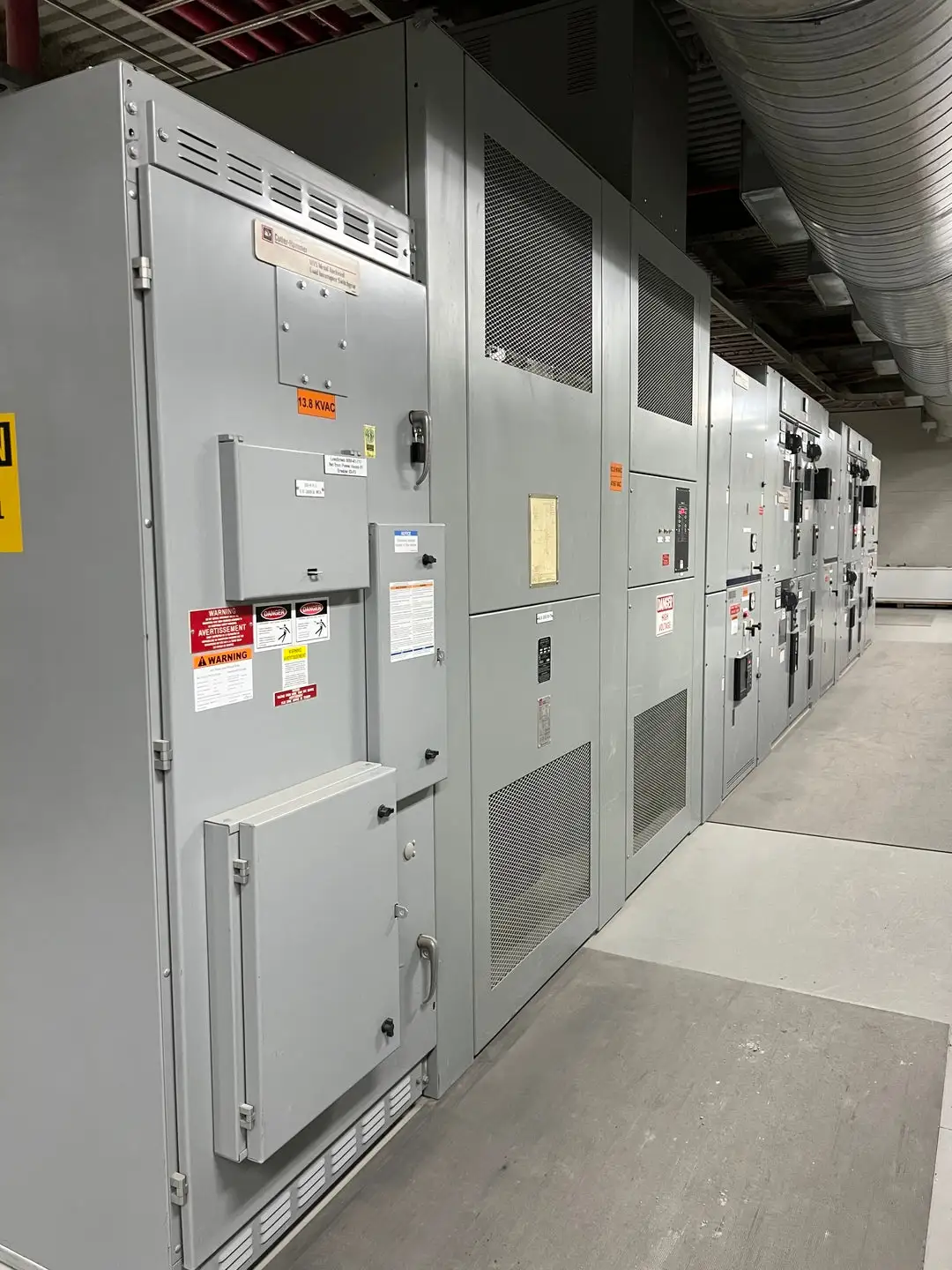

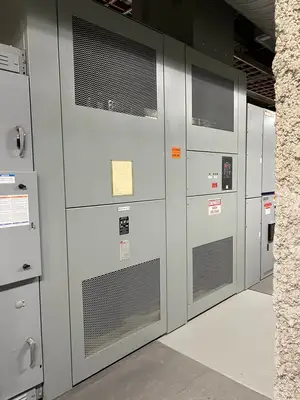

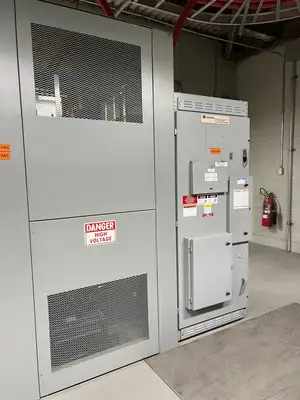

MV Double-Ended Unit Substation - 2 x 2000/3000kVA, 13.8kV Transformers w/ 4160V Ampgard Switchgear

kVA: 2000/3000 kVA
Primary Voltage: 13800 volts
Secondary Voltage: 4160 volts
Phase: 3-phase
Transformer Type: Distribution Transformer
Auto VS Isolation: Isolation
Oil vs Dry: Dry
153644: CUTLER-HAMMER MVS Load Interrupter Switch, 13.8kV
153645: LG 2000/3000kVA Cast Resin Transformer, 13.8kV Pri., 4160V Sec
153646: CUTLER-HAMMER VacClad-W Bus, 4160V, 1200A Breaker
153647: CUTLER-HAMMER Ampgard MV Switchgear, 4160V, 1000A
153648: CUTLER-HAMMER VacClad-W Bus, 4160V, 1200A Tie Breaker Unit
153649: CUTLER-HAMMER Ampgard MV Switchgear, 4160V, 1000A
153650: CUTLER-HAMMER VacClad-W Bus, 4160V, 1200A Breaker
153651: LG 2000/3000kVA Cast Resin Transformer, 13.8kV Pri., 4160V Sec
153652: CUTLER-HAMMER MVS Load Interrupter Switch, 13.8kV
