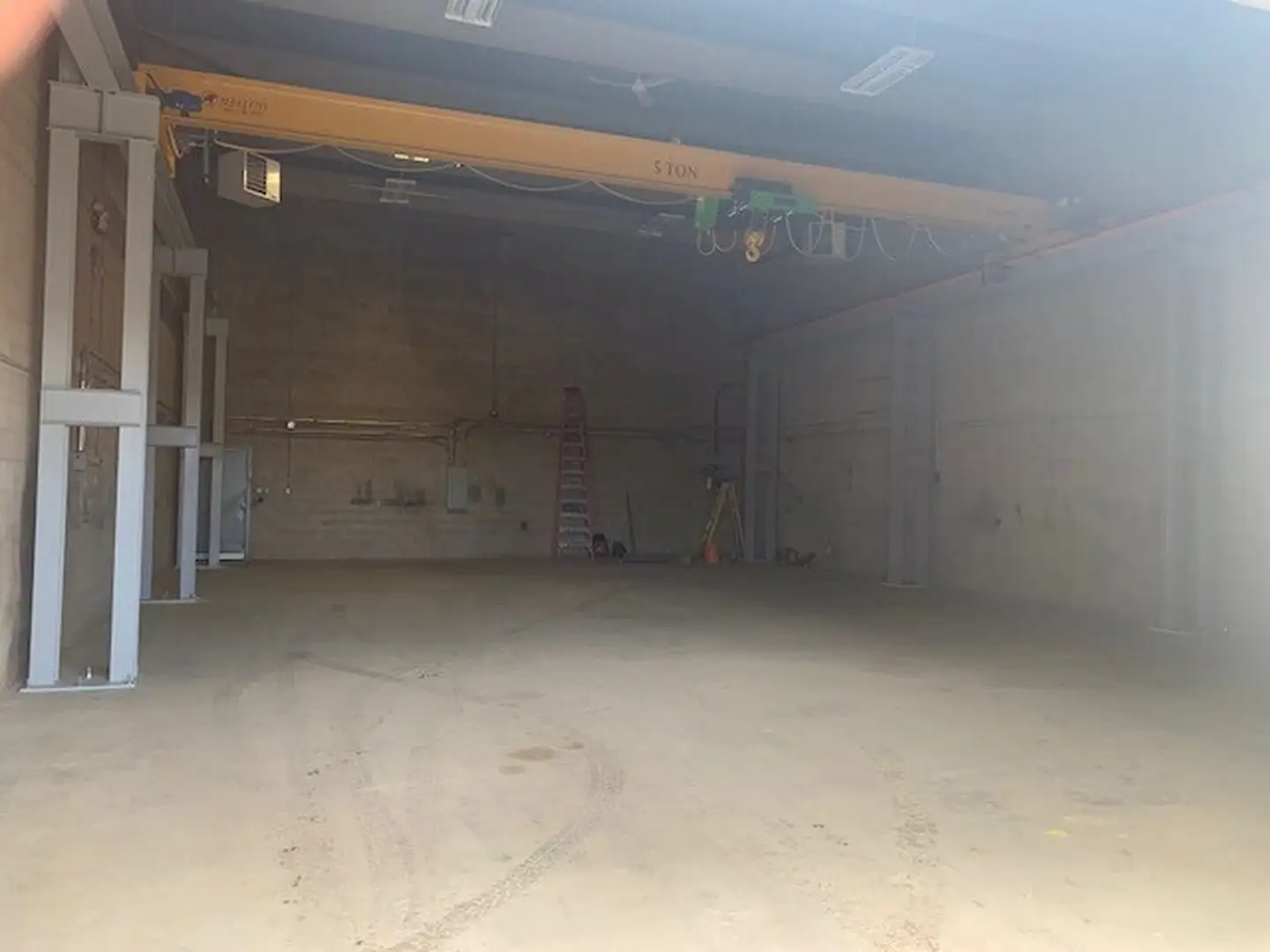

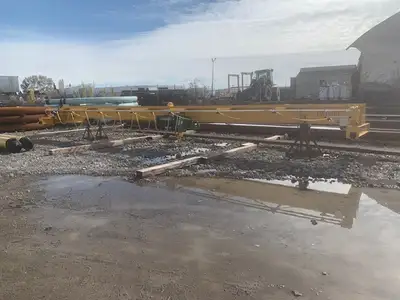

USED HELLCAT FABRICATION SH 4012-20 4/1L2KE

Max. Lift Capacity: 10000 lb
Max. Lift Height: 14'6"
Includes Hoist?: Yes
Hoist Max Lift Capacity: 5 Ton
Hoist Make: STAHL
Hoist Speed: Dual Speed
Type: Top-Running Single-Girder
Hours: Less than 50 total hours over a couple of years.
Rated Load: 5 Ton
Weight of Crane: 5,400 lbs
Weight of Hoist & Trolley: 800 lbs
Total Weight: 6,200 lbs
Hoist Speed: 20 / 3 fpm
Trolley Speed: 80 / 20 fpm
Bridge Speed (Along the Runway): 80 / 20 fpm
Supply Power: 208 VAC, 3-ph, 60 Hz
Est. UNF Wheel Load: 6,217 lbs/wheel
Surface Preparation: SP3 minimum
Crane Surface Finish: 1 coat primer & 1 coat hellcat yellow
Other Surface Finish: 1 coat primer
