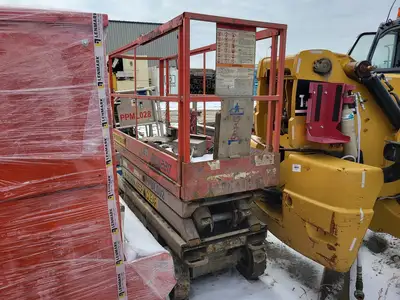

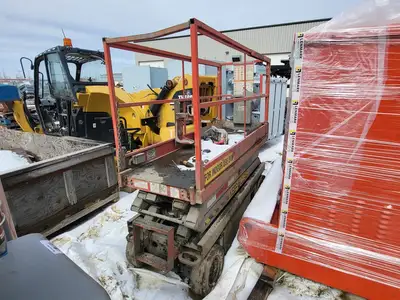

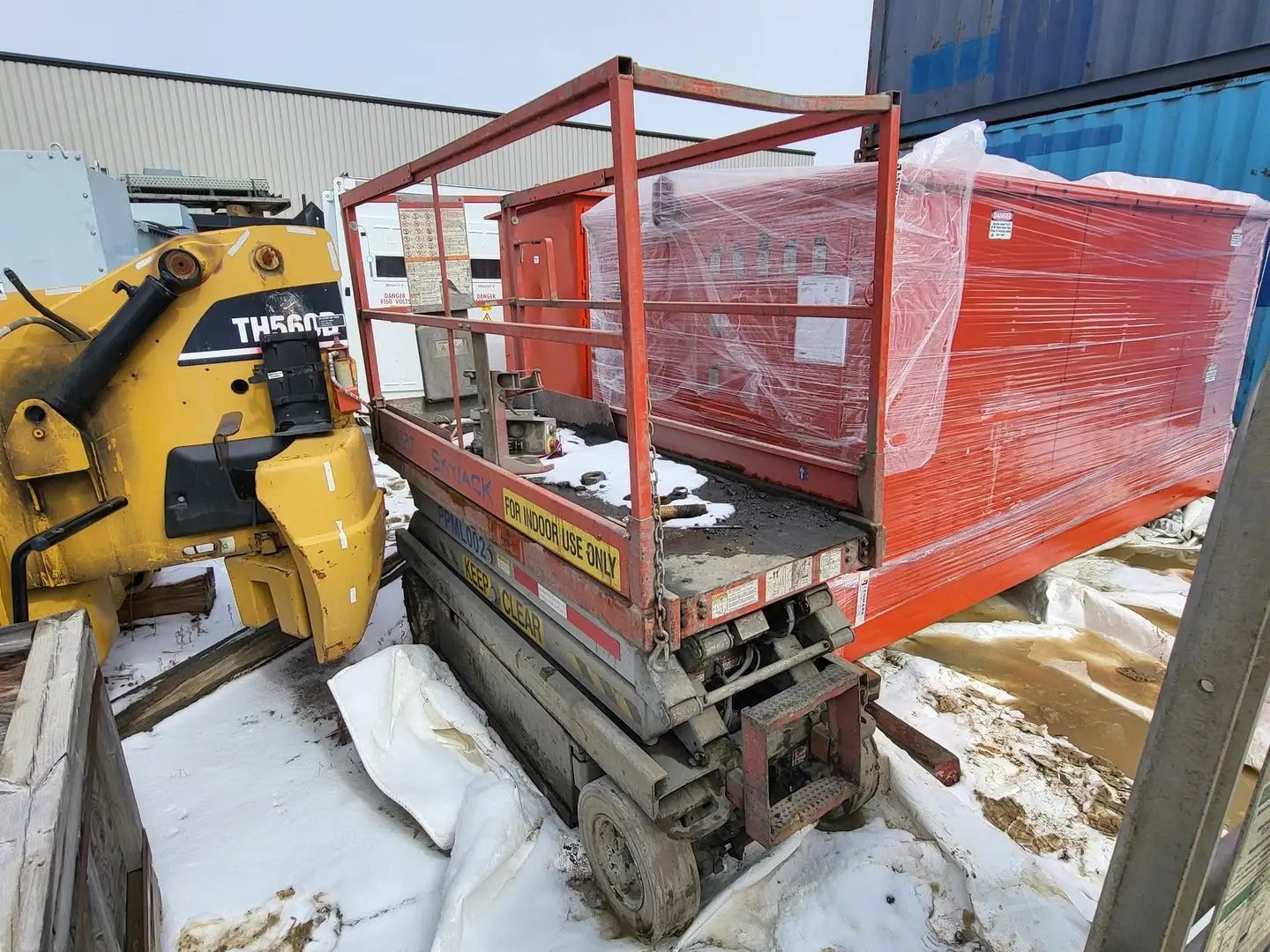

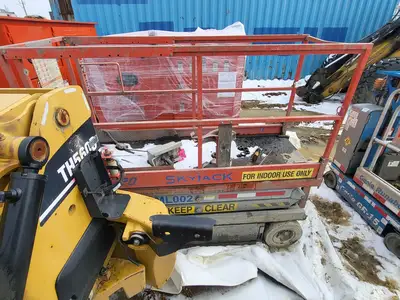

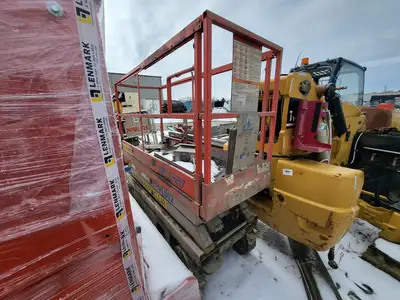

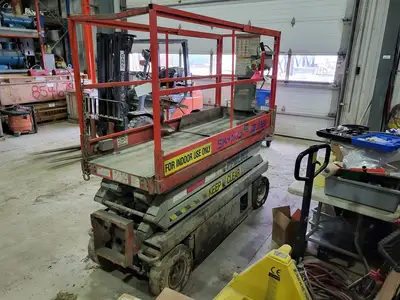

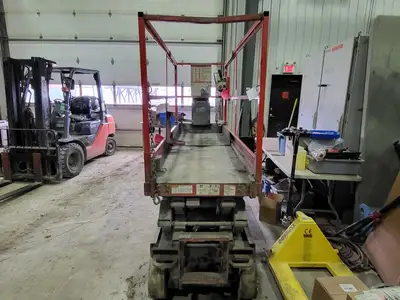

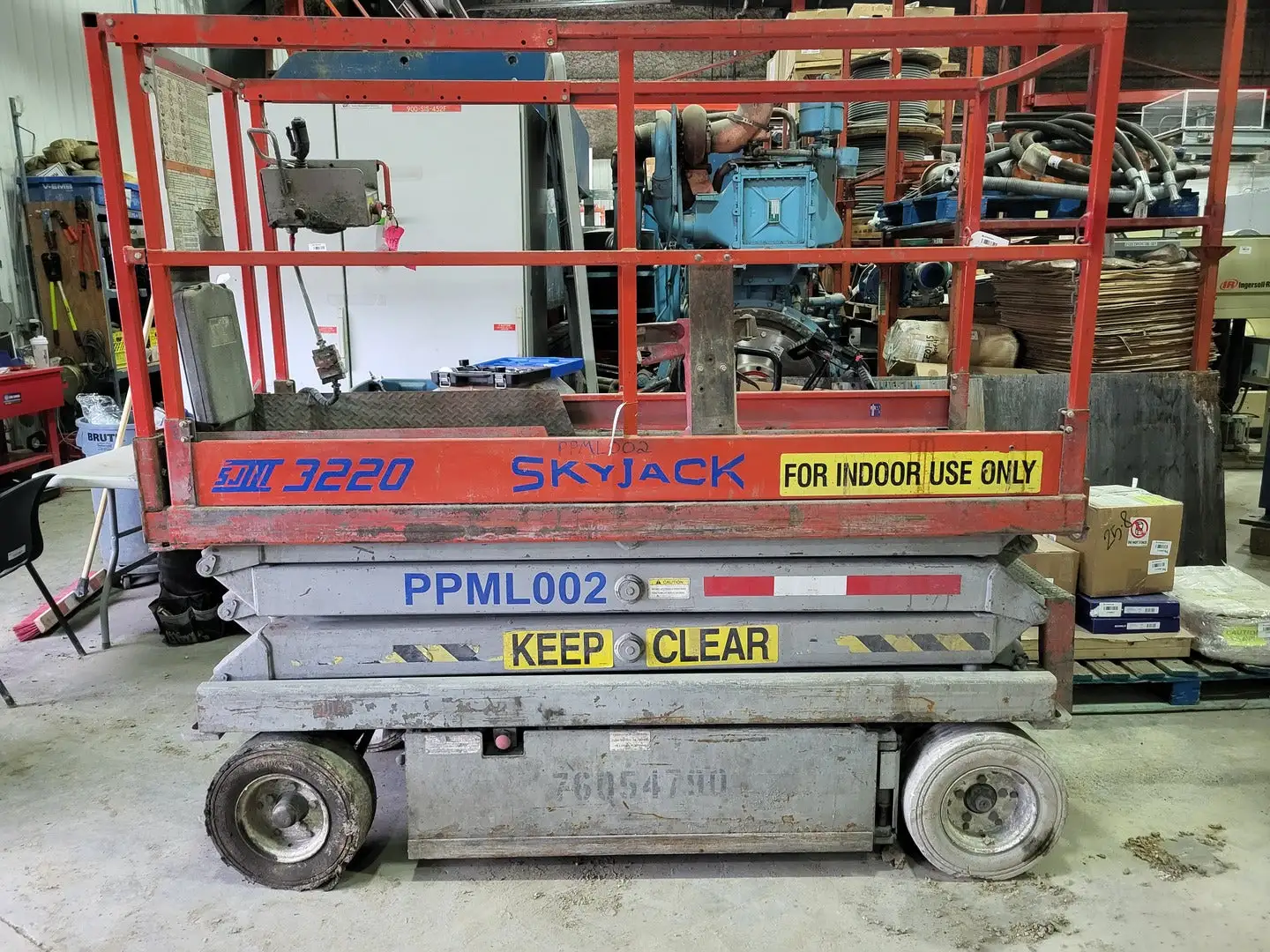

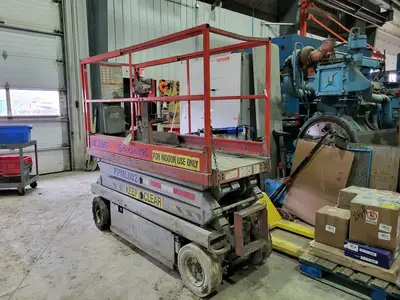

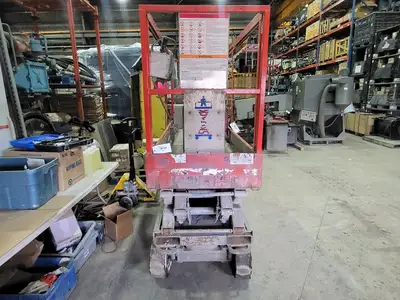

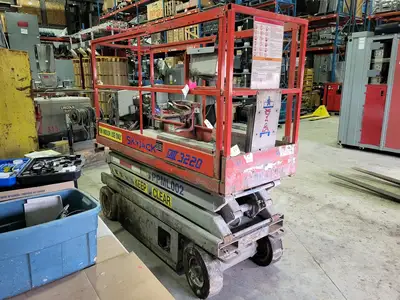

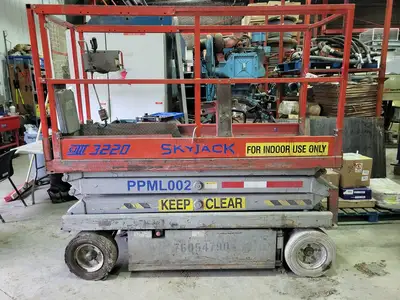

USED SKYJACK SJIII-3220

Max. Lift Capacity: 900 lb
Tires: Cushion
Fuel Type: Electric
Platform Size: 84" x 28"
Max. Lift Height: 20'
Work Height: 26' // 7.92 m
Raised Platform Height: 20' // 6.10 m
Lowered Platform Height: 38" // 0.97 m
Overall Width: 32" // 0.81 m
Overall Length: 91.5" // 2.32 m
Stowed Height (Rails Up): 77.5" // 1.97 m
Stowed Height (Rails Down): OPT 63.5" // 1.61 m
Platform Width (Inside Dimension): 28" // 0.71 m
Platform Length (Inside Dimension): 84" // 2.13 m
Extension Deck (Roll Out): 3' // 0.91 m
Ground Clearance (Stowed): 3.5" // 8.89 cm
Ground Clearance (Raised): 0.75" // 1.90 cm
Wheelbase: 69" // 1.75 m
Gradeability: 30%
Turning Radius (Inside): 50" // 1.27 m
Turning Radius (Outside):108" // 2.74 m
Lift Time (With Rated Load): 33 sec
Lower time (With Rated Load): 29 sec
Drive Speed (Stowed): 2 mph // 3.2 km/h
Drive Speed (Raised): 0.7 mph // 1.1 km/h
Maximum Drive Height: Full Height

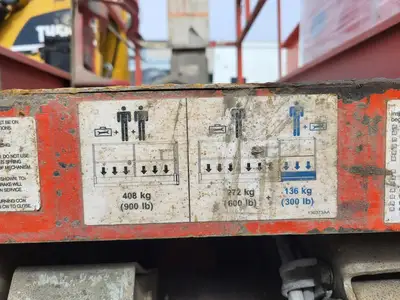

Capacity (Overall): 900 lbs // 408 kg
Distributed Capacity (Main Platform): 600 lbs // 159 kg
Distributed Capacity (Extension Deck): 300 lbs // 136 kg
Local Floor Load (With Rated Load): 130 psi // 897 kPa
Overall Floor Load (With Rated Load): 245 psf // 12 kPa
Maximum # of Persons: 2
Wind Rating: 28 mph // 12.5 m/s
Tire Type: Solid, N/M
Tire Size: 16 x 5 x 12
