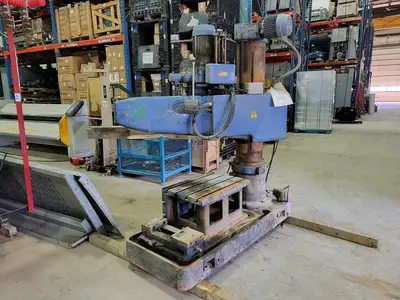

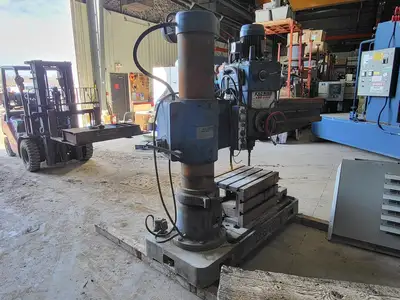

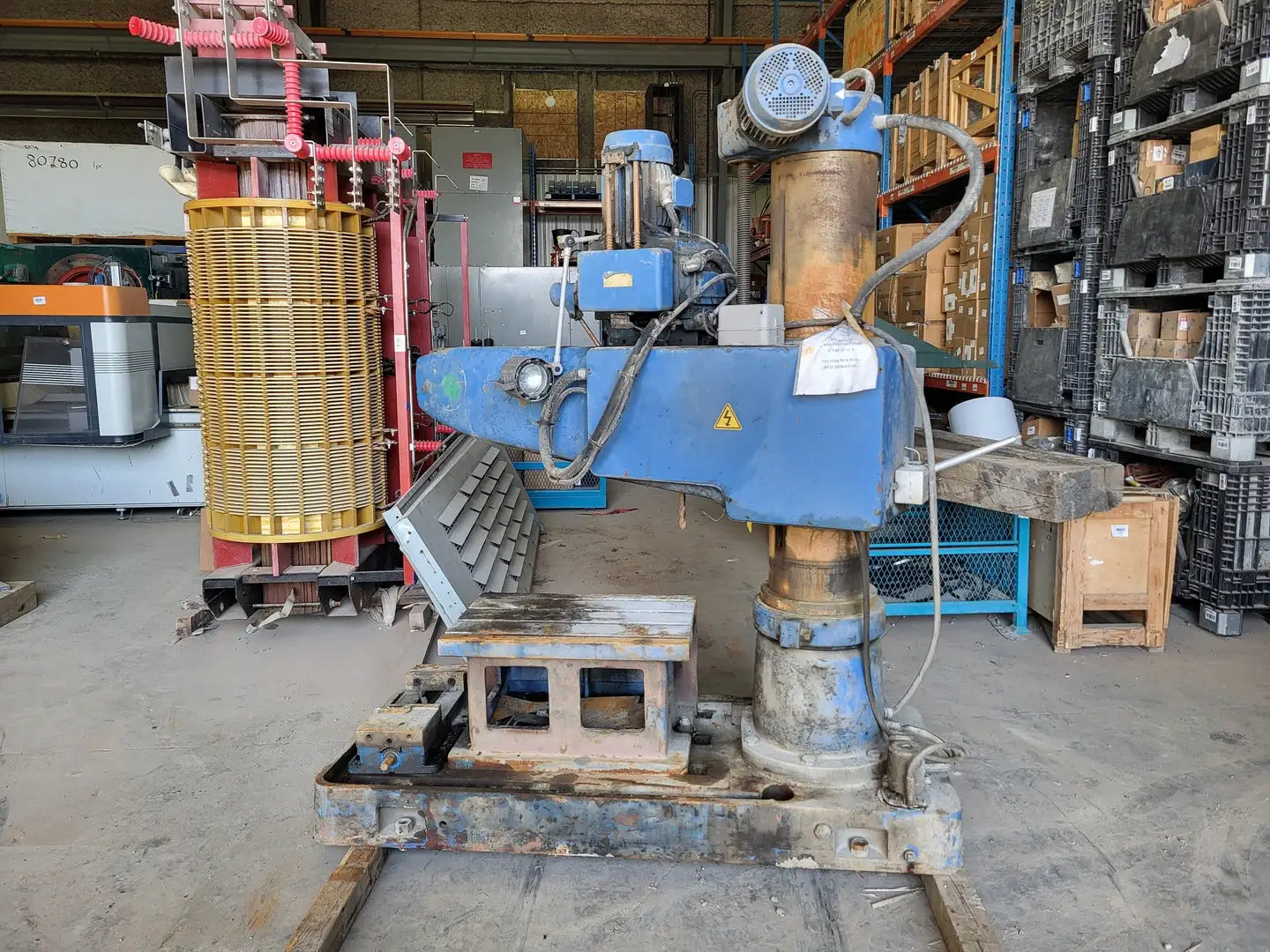

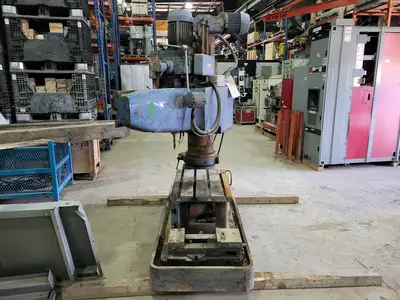

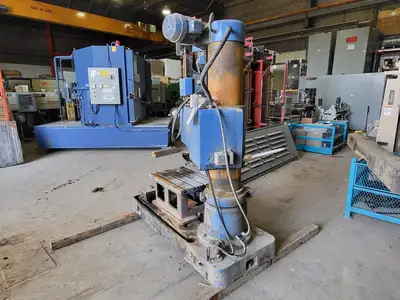

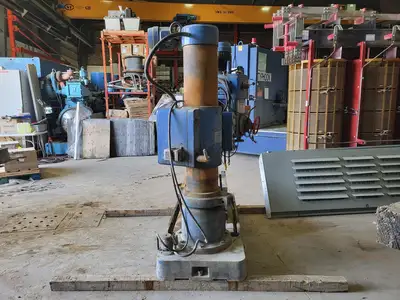

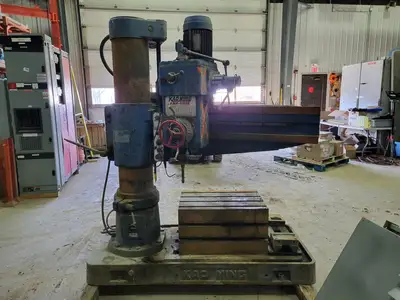

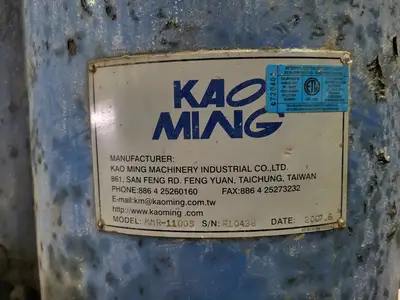

USED KAO MING KMR-1100S

Type: Radial Arm Drill
Arm Travel: 27.55"
Morse Taper: MT#4
Table Size: 19.68" x 29.52" x 15.74"
Horsepower: 3 hp
Voltage: 220 volts
Phase: 3-phase
Drive Type: Gear Drive
Coolant Pump: Yes
Travels:
Spindle head longitudinal travel: 768 mm // 30.25"
Vertical arm travel: 700 mm // 27.55"
Spindle center to column center: 505 - 1250 mm // 19.88 - 49.21''
Spindle center to column face: 355 - 1100 mm // 13.97 - 43.30"
Spindle end to work base surface: 345 - 1265 mm // 13.58 - 49.80"
Work base surface area: 1260 x 760 mm // 49.60 x 29.92"
Column diameter: 300 mm // 11.81"
Column height: 2108 mm // 82.99"
Max height spindle head to floor: 2503 mm // 98.54"
Box table L x W x H: 500 x 750 x 400 mm // 19.68 x 29.52 x 15.74"
Spindle:
Taper: MT4

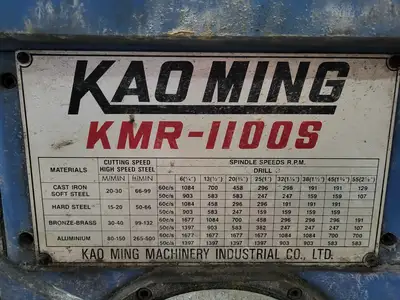

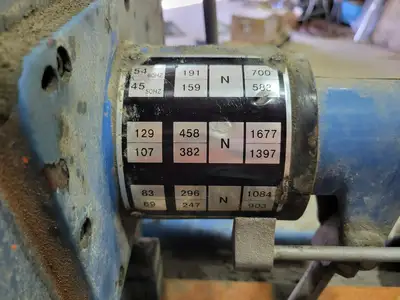

Speed range: 49 - 1524 rpm
Number of speeds: 9 steps
Feed range: 0.1 / 0.22 / 0.35 mm/rev // 0.004 / 0.0088 / 0.014"/rev
Number of feeds: 3-step
Spindle travel: 220 mm // 8.66"
Quill diameter: 80 mm // 3.14"
Working capacity:
Drilling (cast iron / steel): 55 / 45 mm // 2.16" / 1.77"
Boring (cast iron / steel): 150 / 100 mm // 5.90" / 3.93"
Tapping (cast iron / steel): 38 / 25 mm // 1.49" / 0.98"
Motors:

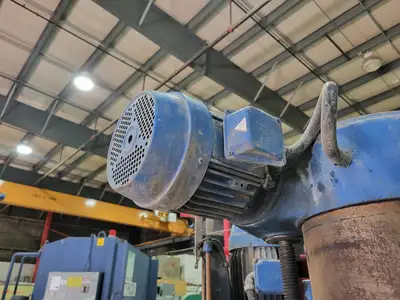

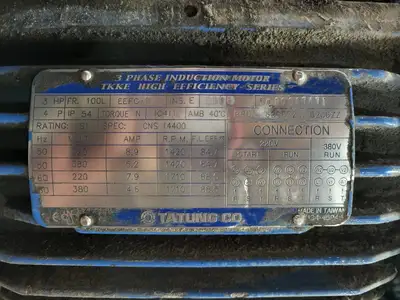

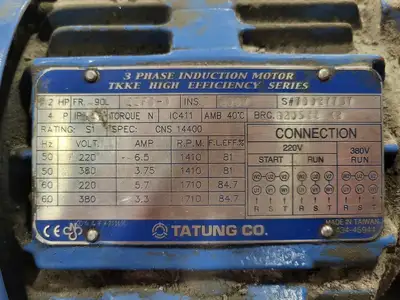

Main spindle motor: 2.2kW // 3hp
Arm elevating motor: 1.5kW // 2hp
