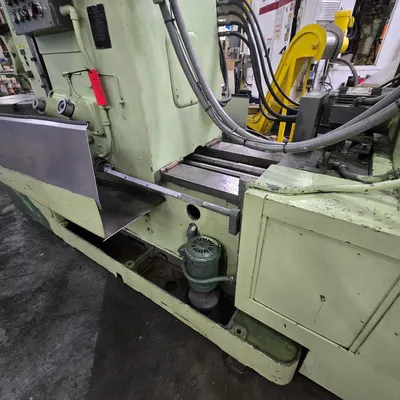

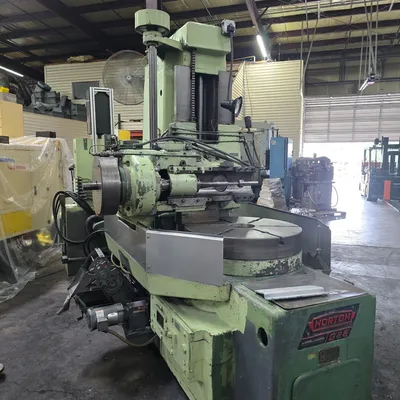

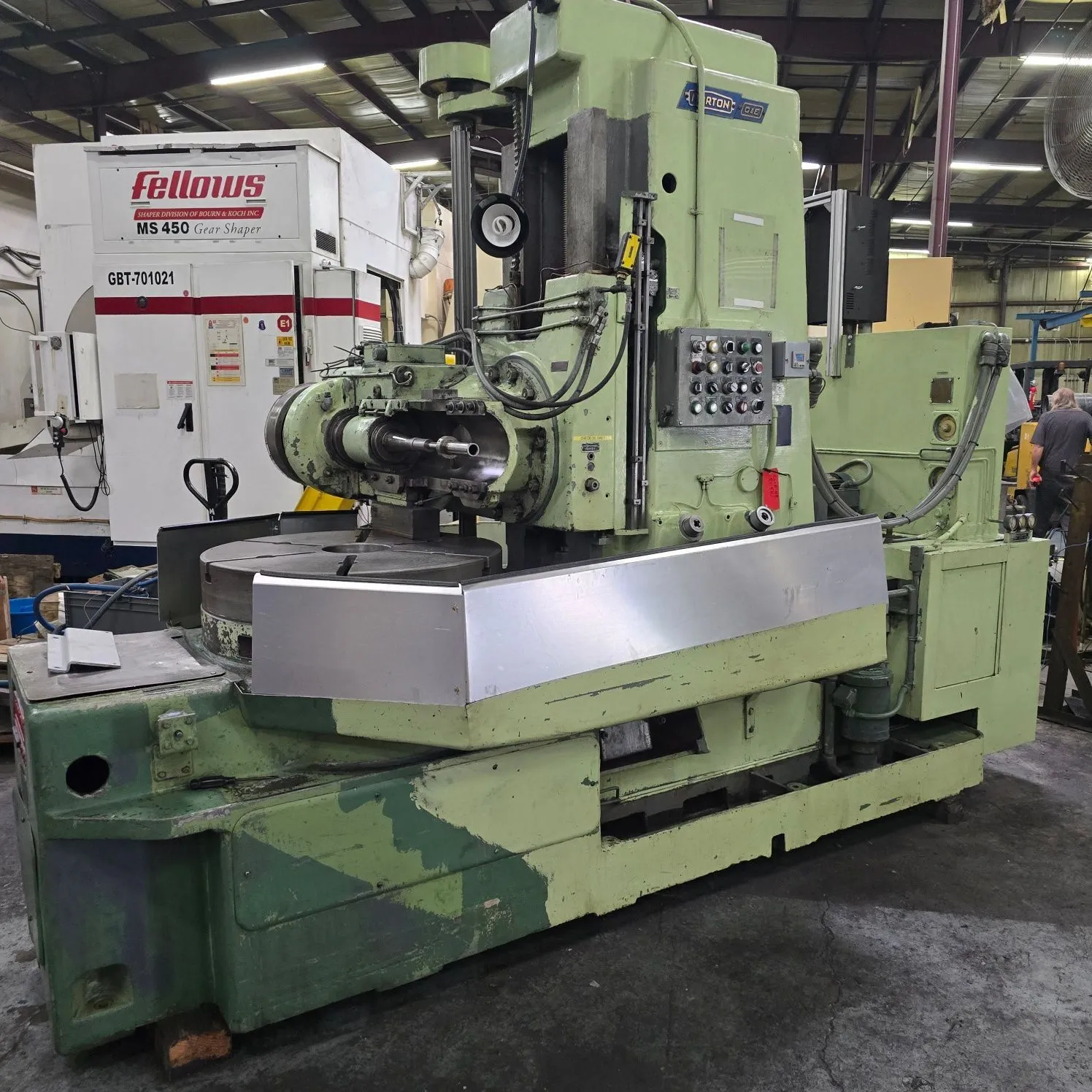

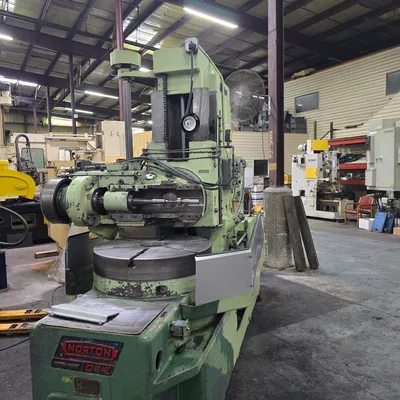

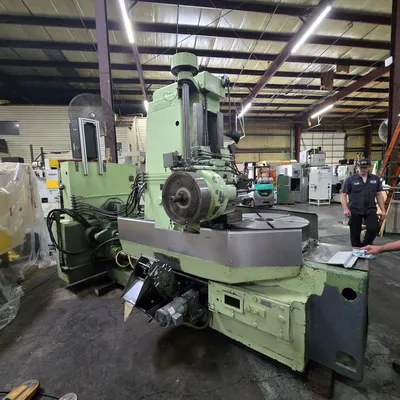

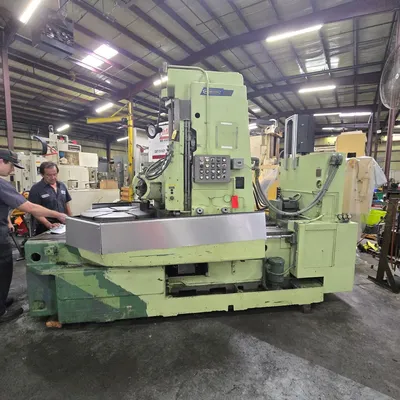

USED GOULD & EBERHARDT 48HWD

Gould & Eberhardt model 48HWD 32" diameter table , heavy duty worm drive head, differential , infeed, w/ Vari speed motor, chip conveyor!!

Gould & Eberhardt Heavy duty Vertical gear hobber
Model 48HWD
s/n 80540
w/ variable speed drive motor

This heavy duty machine has been delivered to our Statesville NC
facility . the machine will be gone through , tested and repaired
as needed. IT is a very good running machine

Machine catalog specs as follows :
max diameter w/ support 34"
max diameter w/o support 48"
max pitch 1.5 dp
max face capacity 18" (tbd)
max vertical travel 23"
Min centers 0"
max diam. hob 8"
Diameter work table 32"
Max Height under tailstock --
Main motor 10 HP
floor space 52" x 126"
machine weight 19,000 lbs

Machine is equipped with :
Special heavy duty worm drive head (HWD)
Variable speed drive (TECO F510)
Differential
Infeed
hob arbors
Push button controls
100 teeth in worm wheel - 20/N
Chip conveyor
Misc. change gears & tooling
Manuals

This machine is presently in our Statesville NC facility and can be
inspected under power with proper notice. Machine Has been gone through.
contact rich at [email protected] to request a formal quote & Pricing
or visit our website at www.pisellient.com for more photos and other
Machines and equipment

thank you
Rich Piselli
704 609-0766
