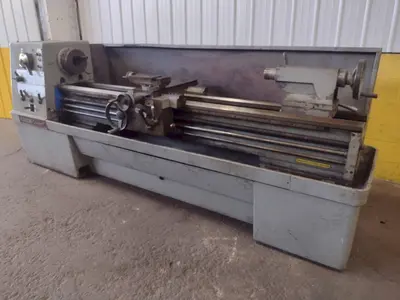

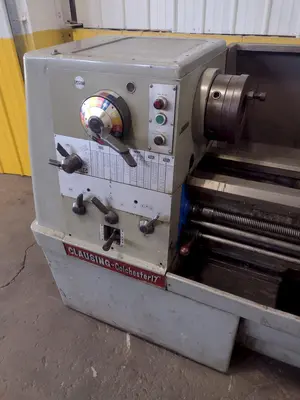

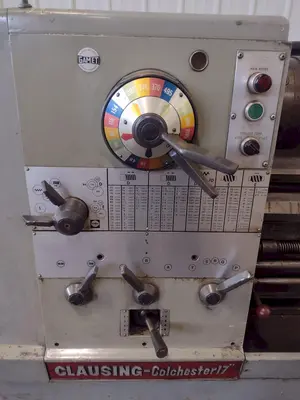

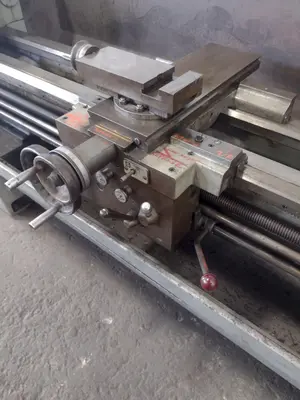

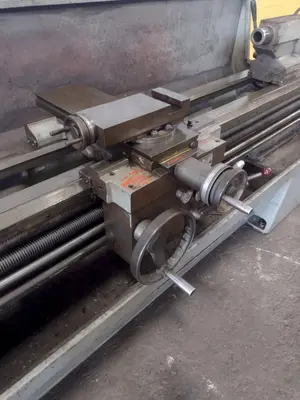

17" X 84" CLAUSING MODEL #17 ENGINE LATHE, 3" HOLE: STOCK #10292

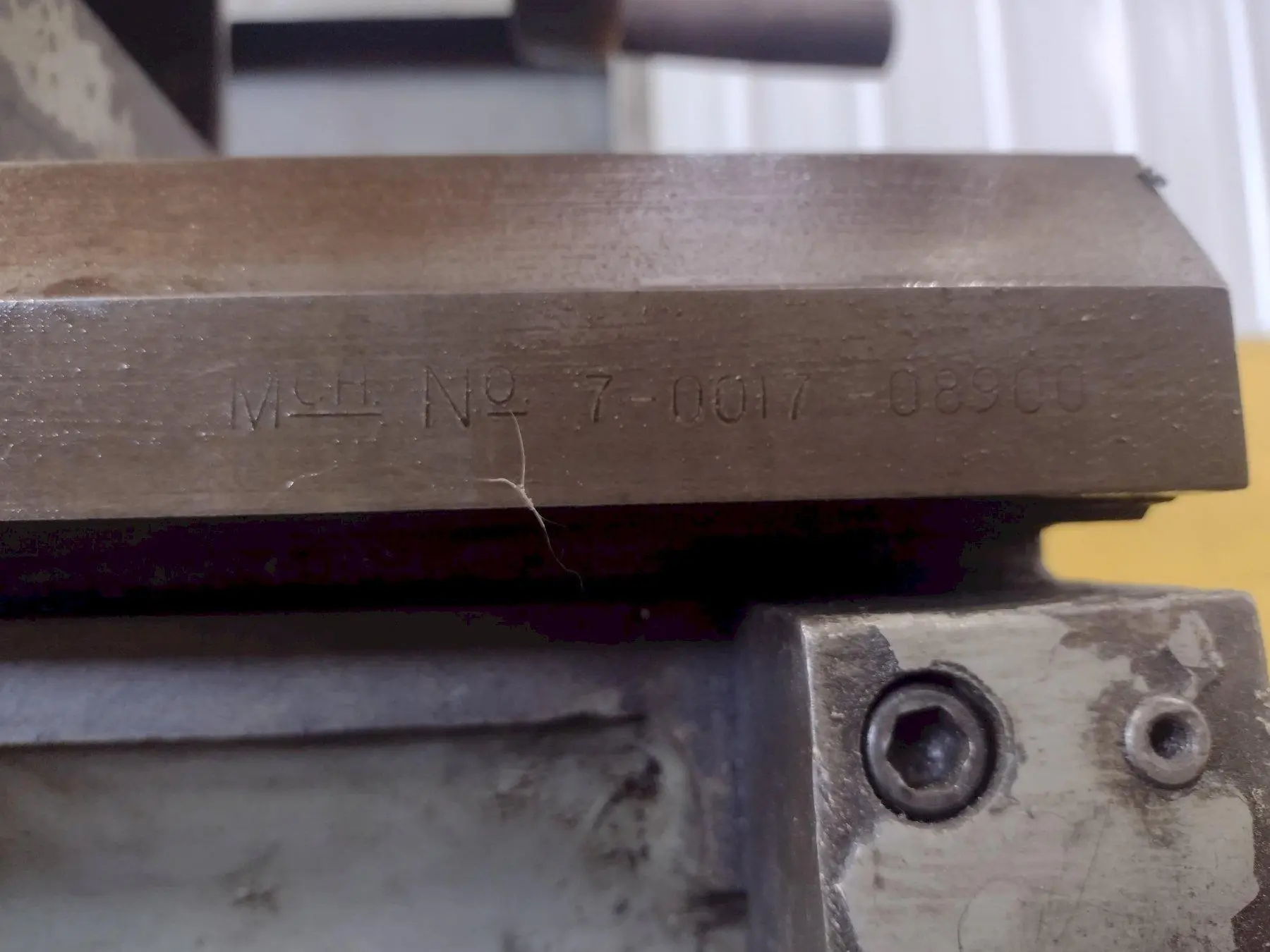

SERIAL ............................. 7/0017/08900
MODEL .............................. 17
SWING OVER WAYS .................... 18"
SWING IN GAP ....................... 28"
SWING OVER CROSS SLIDE ............. 10-1/2"
DISTANCE BETWEEN CENTERS ........... 86"
SPINDLE SPEEDS ..................... (16) 20 TO 1600 RPM
DIAMETER OF SPINDLE HOLE ........... 3-1/16"
FEEDS LONGITUDINAL ................. (45) .002 TO .032 IPR
THREADS (ENGLISH) .................. (38) 2 TO 72 TPI
THREADS (METRIC) ................... (40) .4 TO 14 MMPI
CROSS FEEDS ........................ .001 TO .016
TAPER IN TAIL STOCK ................ #5 MT
HARDEN WAYS ........................ YES
FORWARD & REVERSING ................ YES
COOLANT ............................ YES
MOTOR .............................. 10 HORSEPOWER

Brand
CLAUSING
Type
Lathes, Engine
Stock No.
10292
