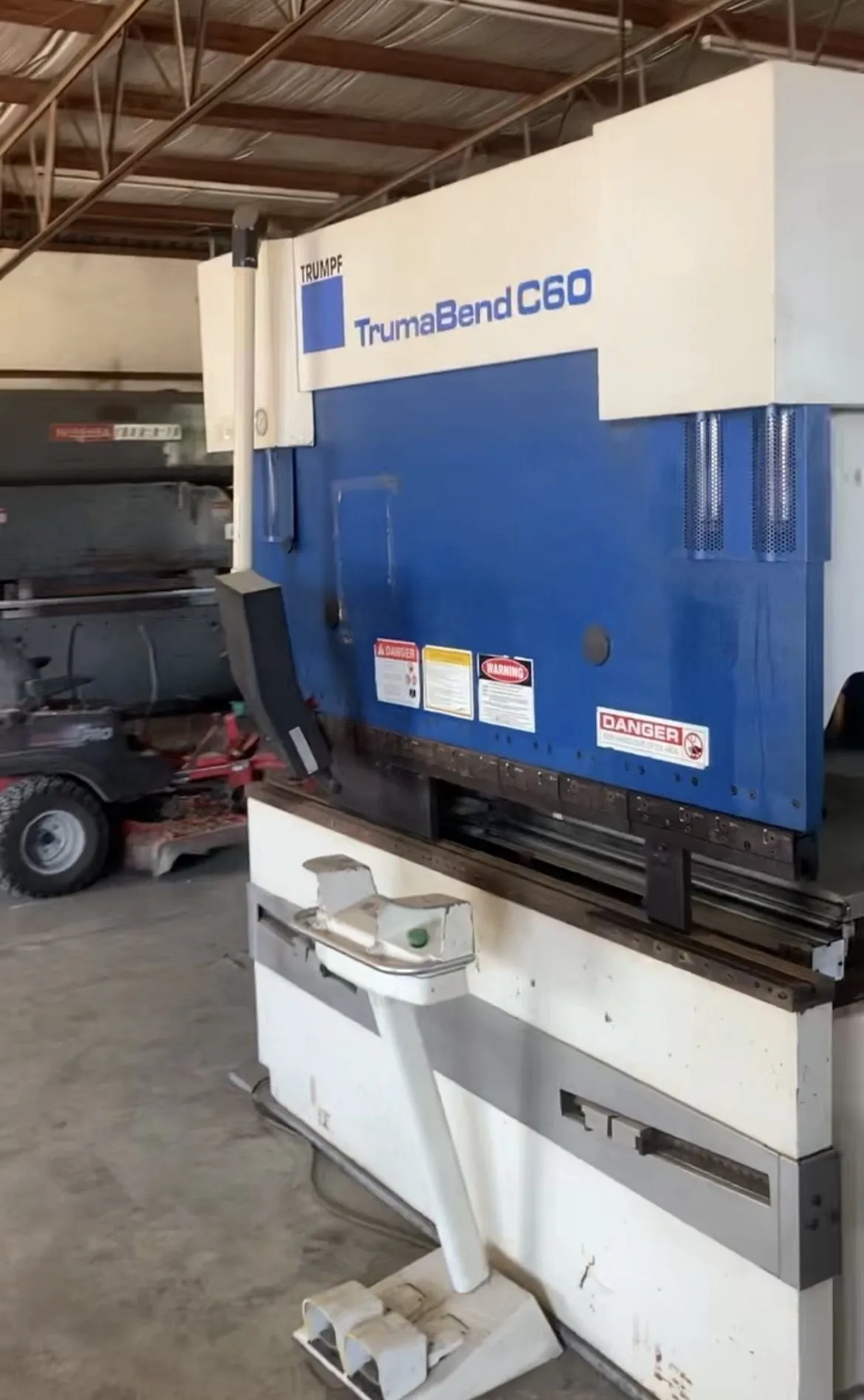

Trumpf Trumabend C60 CNC Hydraulic Press Brake
| size | 60 Ton | 60 Ton |
| Tonnage | 60 T | 54.431 t |
| Type | HYD | HYD |
| Overall Length | 81" | 2.1 m |
| Between Housings | 68" | 1.7 m |
| Stroke | 7.8" | 198.12 mm |
| # Axis | 4 | 4 |
Trumpf Trumabend C60 CNC Hydraulic Press Brake
Tonnage Capacity
67 Tons
Maximum Bending Length
82"
Distance Between Housings
69"
Stroke Length
8"
Throat Depth
16.5"
Travel In X-Axis (Back Gauge Range)
20"
Speed of Travel in X-Axis
827 IPM
Travel In R-Axis (Back Gauge Up/Down) . 13"
Press Speed (Rapid Advance)
236 IPM
Press Speed (Bending)
47 IPM
Press Speed (Return)
472 IPM
Main Motor
10 HP
Overall Dimensions
96" x 65" x 95"
Overall Weight
10,780 Lbs.
Set of Manuals
