2KW Power, 40000 RPM, 1016 Spindle Hours
| size | 20" x 16" x 9" | 20" x 16" x 9" |
| X Travel | 20" | 508 mm |
| Y Travel | 16.5" | 419.1 mm |
| Z Travel | 9" | 228.6 mm |
| Power | 2 kW | 2.7 hp |
| RPM | 40,000 RPM | 40,000 RPM |
| Table-W | 16" | 406.4 mm |
| Table-L | 19.5" | 495.3 mm |
| # Axis | 3 | 3 |

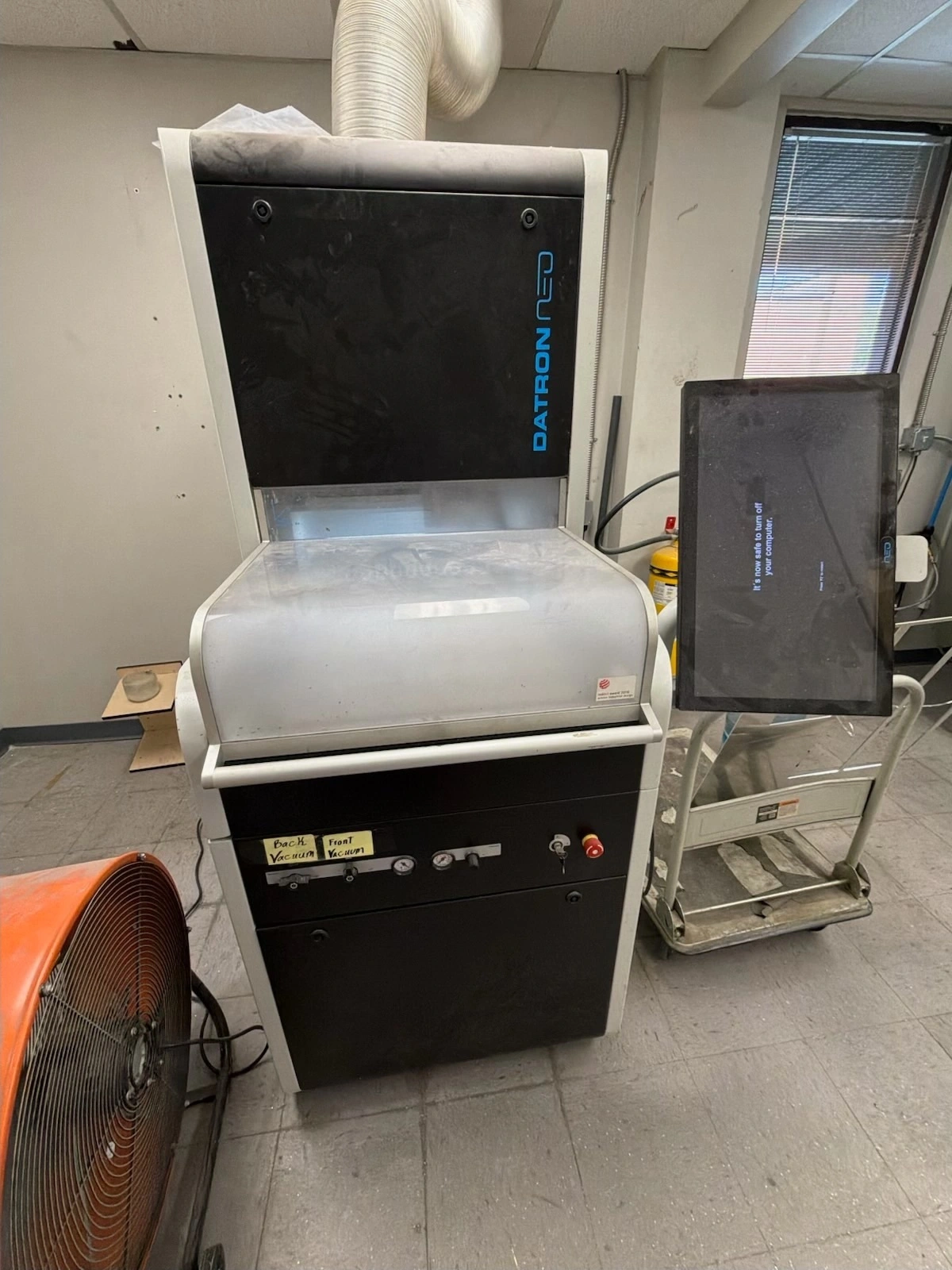

Datron Neo High Speed Milling Machine (2017)
Machining Area - 19.5" x 16"
Travels -
X Axis - 20"
Y Axis - 16.5"
Z Axis - 9"
Gantry Height - 7"
Machining Speed - Up to 28 m/min (1,102"/min)

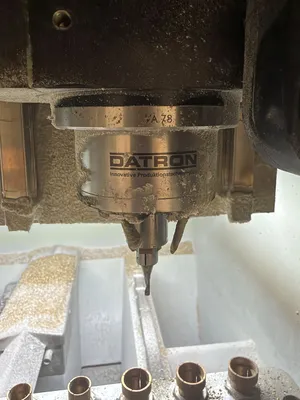

High-Frequency Machining Spindle - 2 kW up to 40,000 rpm
Machine Power 4 kVA
Max Amperage 16A
Voltage 400/3/50/60
Tool Magazine with Tool Length Sensor - 24-fold with direct shank tool holder
2 KW Power, 40000 RPM, Vacuum Table
1016 Spindle Hours
Microsoft Windows NT 6.1.7601 Service Pack 1
Intel(R) Atom(TM) CPU E3845 @ 1.91GHz
