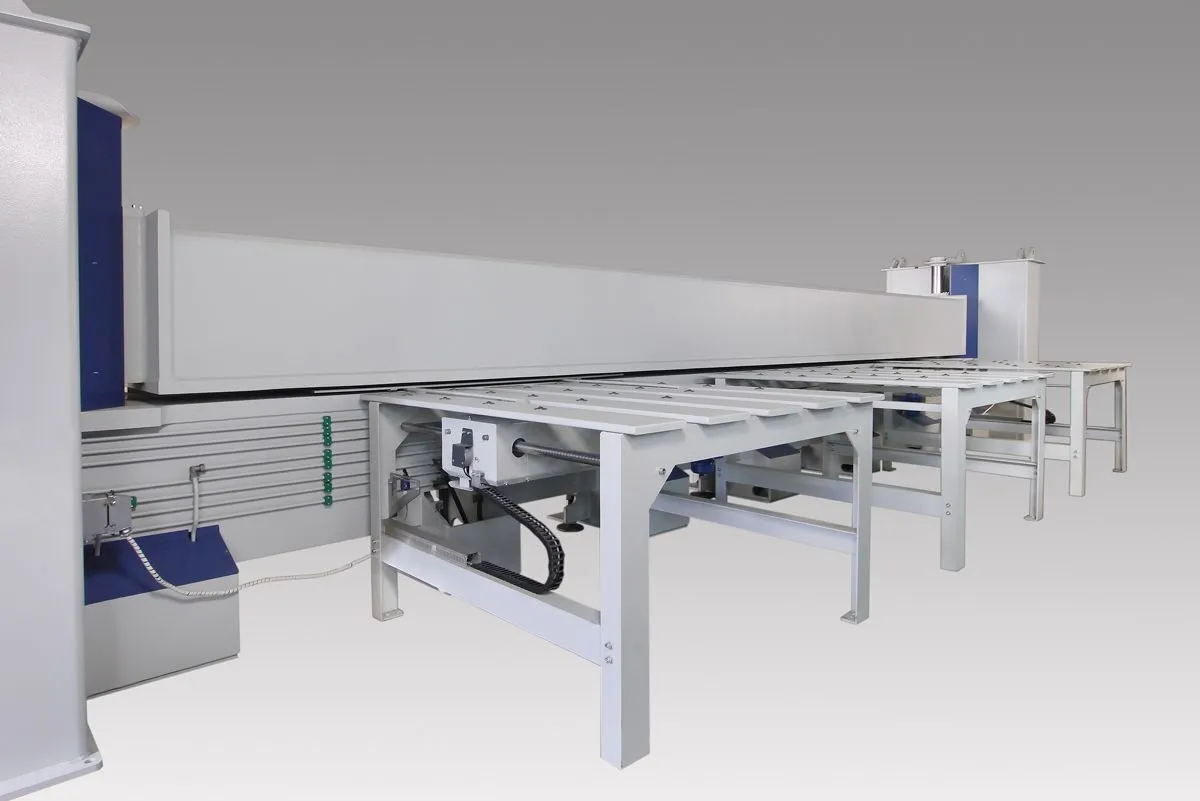

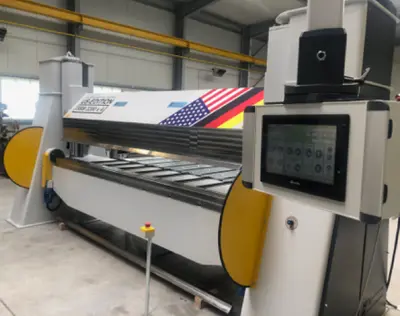

NEW DR. HOCHSTRATE FOLDING MACHINE
Overview
The Hochstrate Folding Machine delivers precision, durability, and versatility for modern metal fabrication. Its robust welded steel construction and fully hydraulic system ensure reliable performance across a wide range of materials and applications.
Equipped with Siemens PLC control, touchscreen programming, and advanced features like radius and cone bending, this machine reduces setup time while providing consistent, high-quality results for even the most complex bending tasks.
Specs
Bending Width: 500 mm – 8000 mm (19.7” – 315”)
Sheet Thickness: 1 mm – 25 mm (19 GA – 1”)
Materials: Mild Steel, Stainless Steel, Aluminum, Copper, Magnesium, Molybdenum, Plastics, Lexan
Bending Angle Max: Up to 180° (Up to 270° with Radius Bending Functions)
Backgauge Range: 1000 mm Standard (Up to 8000 mm Optional)
Upper Beam Lift: Up to 1000 mm (Optional)
Control System: Siemens PLC with Touchscreen Interface
Equipped With
Hydraulically Operated Upper Beam and Bending Beam
Siemens PLC Control System
Digital Display of Bending Angle
Incremental Angle Control
Independent Controls for Upper and Bending Beam
Manual or Automatic Operation Switch
Foot-Actuated Control Switch
Upper Beam with 45° Face Angle
Changeable Tooling for Upper, Bending, and Lower Beams
Electronic Positioning of Bending Beam
Electronic Bending Beam Adjustment
Graphical Touchscreen Control with Program Storage (Up to 999 Programs)
Programmable Backgauge with up to 8 Positions per Program
Front Gauging System
Manual or Motorized Backgauge with Position Indicator
Segmented Bending Beam Rail
Radius Bending Capability (Up to 180° / 270°)
Automatic Clamping System for Tooling (Optional)
Stepless Pressure Regulation of Upper Beam
CE Certified Safety System
Upper Beam Safety Stop with 25 mm Clearance
