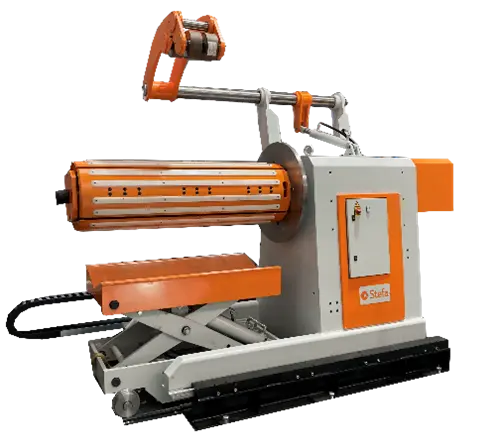

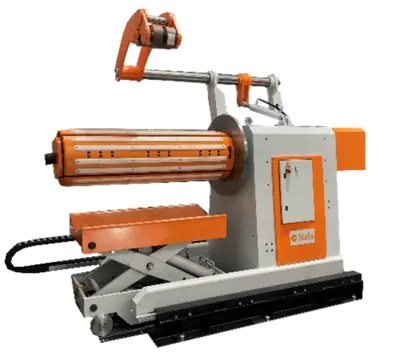

NEW STEFA HYDRAULIC DECOILER DH1000

Stefa DH1000 hydraulic decoiler designed for automatic unwinding of coils in sheet metal processing lines. The system handles coils up to 10 tons and widths up to 1500 mm. Decoiling is controlled through an analog sensor that reads the height of the steel sheet, ensuring consistent and controlled material feeding into downstream equipment.

Model: DH1000
Capacity: up to 10 tons
Maximum Coil Width: 1250 / 1500 mm
Minimum Inner Diameter: 470 mm
Maximum Inner Diameter: 540 mm (640 mm with Expansion)
Maximum Outer Diameter: 1500 mm

Hydraulic Decoiling System
Analog Sensor for Automatic Loop Control
