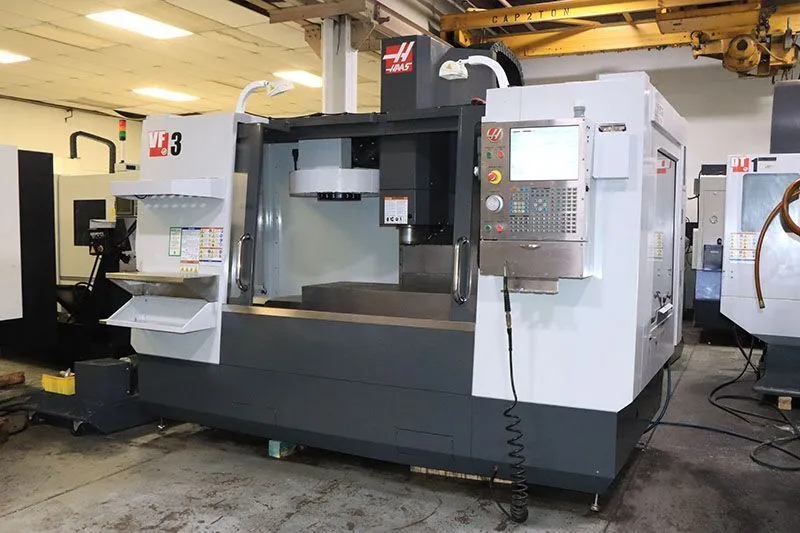

Haas VF-3 Vertical Machining Center, 2010 model, installed in 2011. Specs: 30 HP, 10,000 RPM, 20+1 tool changer, dimensions: 40"x20"x25". Features Haas CNC control, WIPS, RJH, and more. Weight: 12,500 lbs. Located in NJ warehouse.
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 20 | 20 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 48" | 1,219.2 mm |
| # Axis | 3 | 3 |
| Weight | 12,500 lbs | 12,500 lbs |
X-AXIS TRAVEL.......................... 40" - 1016mm
Y-AXIS TRAVEL.......................... 20" - 508mm
Z-AXIS TRAVEL.......................... 25" - 635mm
SPINDLE NOSE TO TABLE.................. 4" TO 29"
TABLE SIZE............................. 18" X 48"
MAXIMUM WEIGHT ON TABLE................ 3,500 LBS
SPINDLE SPEED MAX ..................... 10,000 RPM
SPINDLE MOTOR.......................... 30 HP
SPINDLE TAPER.......................... CAT 40
TOOL CHANGER .......................... 20 + 1 POSITIONS
RAPID TRAVERSE RATE.................... 1000 IPM
MAX CUTTING FEEDRATE................... 650 IPM
APPROX MACHINE WEIGHT.................. 12,500 LBS
- HAAS CNC CONTROL:
RIGID TAPPING, ROTATION & SCALING, QUICK CODE,
M19 SPINDLE ORIENTATION, ADVANCED TOOL MANAGEMENT
MACROS, USB PORT, ENABLE DNC
- REMOTE JOG HANDLE (RJH)
- WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
- RENISHAW PART & TOOL PROBES
- 20 POCKET CAROUSEL TOOL CHANGER
- HIGH INTENSITY LIGHTING
- CHIP AUGER
- 30 HORSE POWER SPINDLE DRIVE
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
