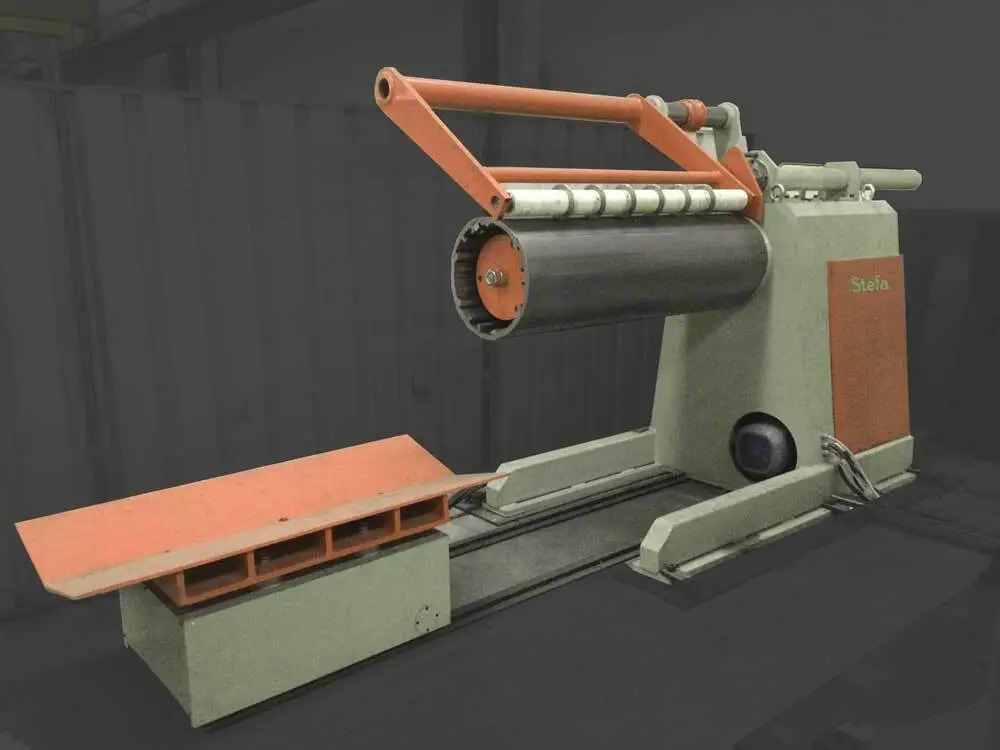

NEW STEFA EH1000 RECOILER

Stefa EH1000 recoiler designed for efficient re-coiling of sheet metal in production lines. The system can be integrated into an existing cut-to-length line and provides controlled, high-capacity recoiling with hydraulic and automated features. Equipped with a contactless sensor for smooth operation, the recoiler ensures material is processed without marking while maintaining consistent tension and coil quality.

Model: EH1000
Speed with Contactless Sensor: 20 m/min
Re-Coil Capacity: up to 20 coils
Maximum Coil Width: 1700 mm (67 in)
Maximum Coil Weight: 12,000 kg (26,400 lbs)
Recoiler Dimensions: 1600 x 4000 x 2600 mm
Tensioner Dimensions: 2200 x 2100 x 2900 mm
Weight: 6000 kg
Power: 3x 400–480 VAC
Motor Power: 15 kW (20 HP)

Hydraulic Expansion Mandrel with 5 Blades
Hydraulic Arm with Separator Disks
Coil Pusher
Lifting Coil Car
Tensioner Press
Expandable Support to Recoiler
Feeder Roll with Depth Adjustment
Crocodile Opening with Pneumatic Bladders
Electric Control Panel with Joysticks, Buttons and Speed Adjustment
