USED 2001 SERGI C.I.3050X10/12
Overview
Description

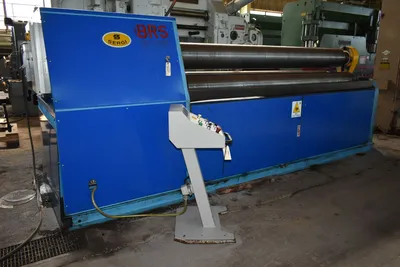

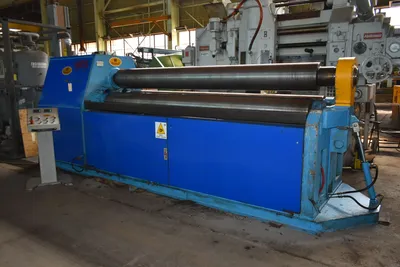

10’ X 1/2” SERGI “C.I. 3050X10/12” HYDRAULIC 3-ROLL DOUBLE PINCH PLATE BENDING ROLL - Hydraulic Drop End - Hardened Powered Rolls - 15 HP Motor
Specifications
| Length of Rolls | 10' | 3 m |
|---|---|---|
| (Init/Dbl Pinch or Pyramid) | 'DBL PINCH' | 'DBL PINCH' |
| Max Thickness | 0.5" | 12.7 mm |
| # Rolls | 3 | 3 |
| Hyd/Mech | 'Hyd' | 'Hyd' |
| Power Rear Roll (Yes/No) | Yes | Yes |
| Power | 15 hp | 11.2 kW |
| Roll Diameter | 12" | 304.8 mm |
| Dimensions | 189" x 58" x 73" H | 189" x 58" x 73" H |
| Weight | 21560 LBS | 21560 LBS |
10’ x 1/2” SERGI FULLY-HYDRAULIC DOUBLE-PINCH PLATE BENDING ROLL
New 2002, Serial No 1659, Model C.I., Series 3050x10/12MM
EQUIPPED WITH:

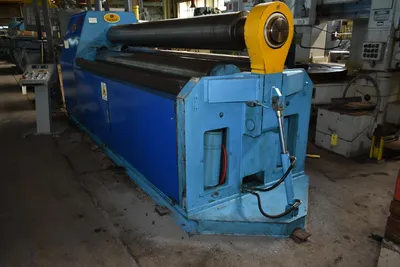

Hydraulic Drop End
Double Pre-Bending Capabilities
(3) Hardened Driven Rolls - Dual Rotation Speeds (Fast/Slow)
Side Roll Inclination For Conical Bending
Mobil Control Panel w/Digital Readouts For Side
Roll Position
CATALOG SPECIFICATIONS:
Plate Bending Capacity 10’ x 1/2”
Plate Bending Capacity 3050MM x 12MM
Pre-Bending Capacity Rated 10’ x 3/8”
Pre-Bending Capacity Rated 3050MM x 10MM
Smallest Diameter Rolled At Full Capacity 19" 480MM
Top-Roll Diameter 12.2” 310MM
Bottom-Rolls Diameter 11.4” 290MM
Opening Between Top & Bottom Roll, Maximum 2" 50MM
Working Height 43" 1100MM
Motor Horsepower 15 HP 11KW
Overall Dimensions, L x W 189" x 58"
Overall Dimensions, L x W 4800MM X 1470MM
Overall Height 73" 1850MM
Weight Approximately 21560 LBS 9800 KG
F.O.B. OUR WAREHOUSE
