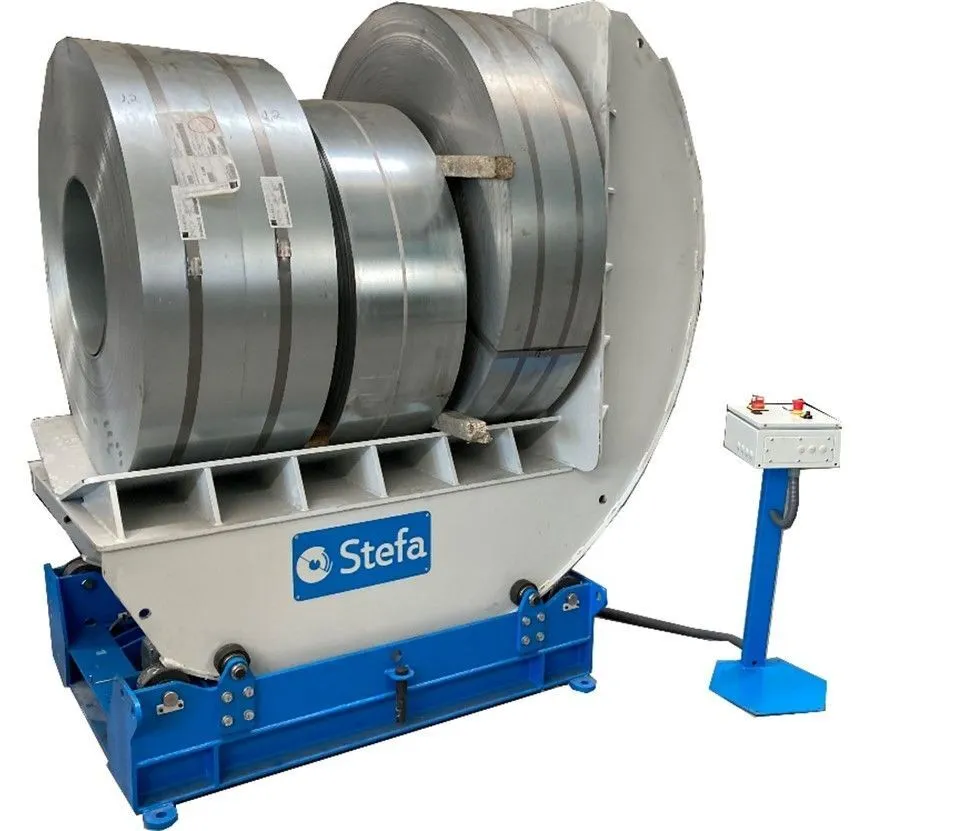

NEW STEFA Coil Tilter VDB7.5

Stefa VDB7.5 coil tilter designed to handle coils up to 7,500 kg and rotate them 90º in both directions. The unit is equipped with a gearmotor controlled by push buttons for jog movements. One base features a “V” support, while the opposite side includes a square tube design to allow forklift handling.

Model: VDB7.5
Max Capacity: 7,500 kg x 1500 mm
Speed Rotation (One Turn): 25 seconds
Dimensions: 1290 x 2200 x 2235 mm
Weight: 2,550 kg
Power: 6A, 480VAC, 3 phases
Colors: RAL7035 / RAL2008 (white grey / orange)

Gearmotor with Push Button Control
90º Coil Rotation in Both Directions
“V” Support Base for Coil Positioning
Square Tube Base for Forklift Handling
