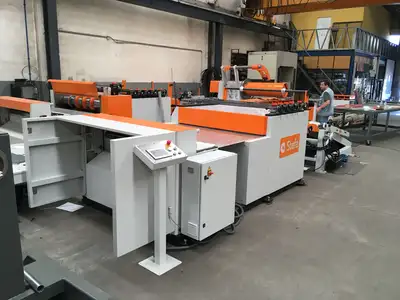

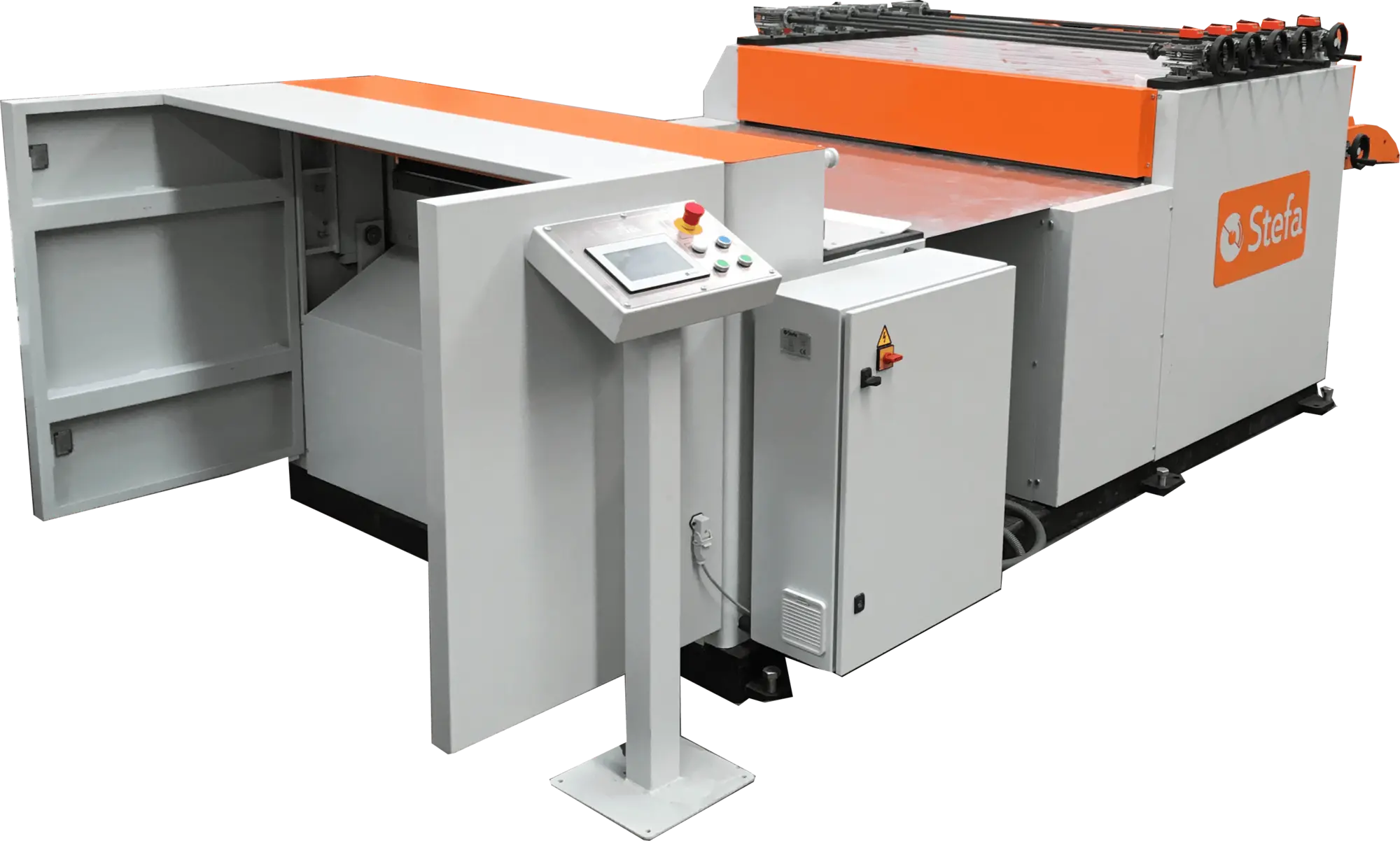

NEW STEFA LCS3

Stefa LCS3 cut-to-length line with longitudinal slitting capabilities. Slitting is performed through penetration of rotating knives with vertical movement of the slitting shaft controlled by wheels equipped with millimeter indicators. Rotary knives are adjusted by free positioning and secured with an easy lock system by screw. The slitting area is protected by a metallic door with a safety sensor.

Model: LCS3
Maximum Thickness Allowance: up to 3 mm (TS 45 kg/mm²)
Maximum Width of Steel Sheet: 1550 mm
Number of Straightener Rolls: 9
Diameter of Straightener Rolls: 138 mm
Number of Slitting Knives: 3
Diameter of Slitting Knives: 295 mm
Production Speed: up to 15 m/min
Equipment Power: 11 kW (400V, 3-phase + N)
Total Line Power: 15 kW
Tolerance on Cut Length: +/- 1 mm
Tolerance on Slitting Cut: +/- 0.5 mm
Tolerance on Cross Section: +/- 0.2 mm

Slitting Unit with Rotating Knives
Straightening System with 9 Rolls
