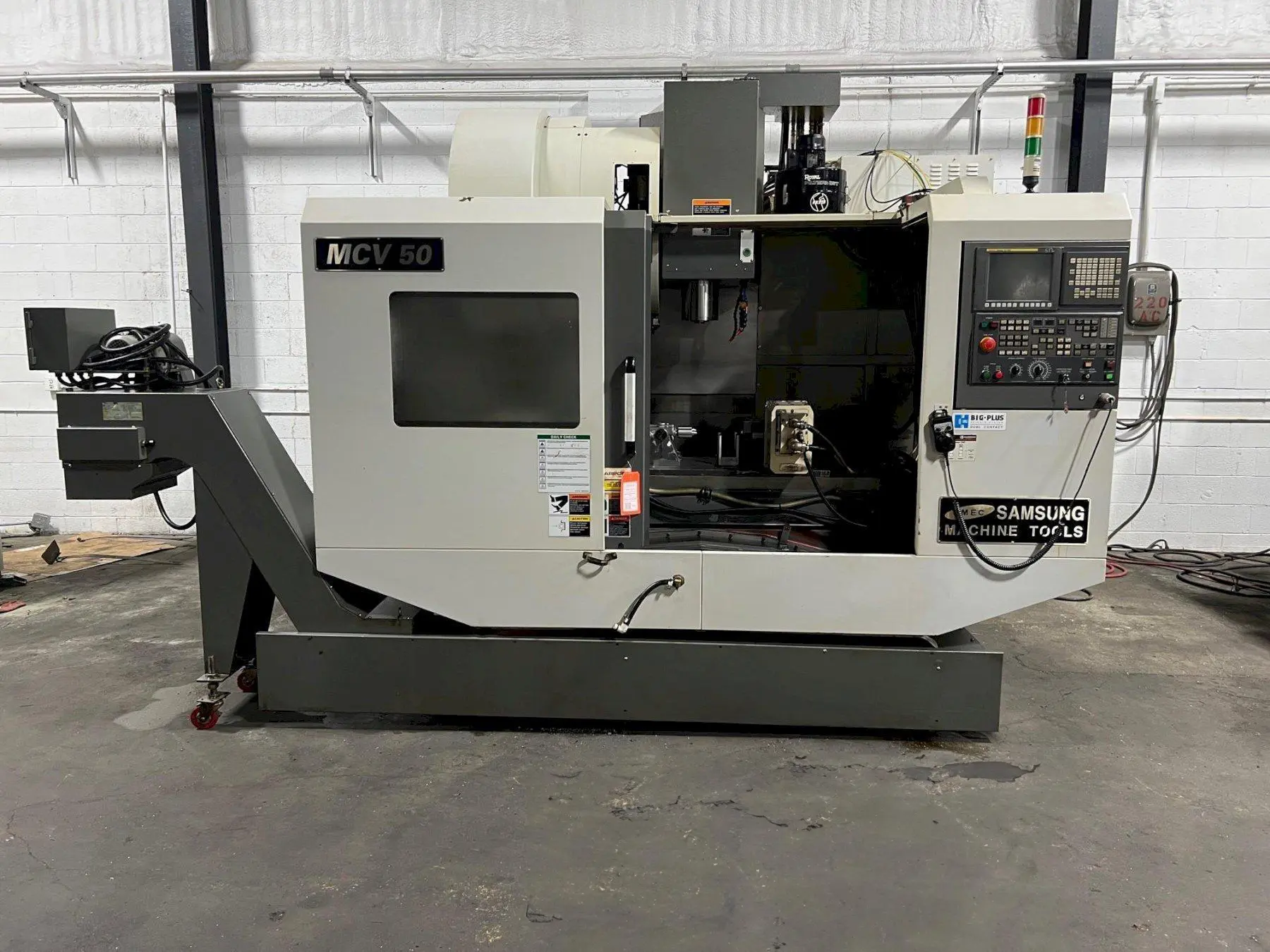

#MCV50 SAMSUNG VMC
| X | 41.34" | 1,050 mm |
| Y | 20.5" | 520.7 mm |
| Z | 20.5" | 520.7 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 40 Big Plus | CAT 40 Big Plus |
| Table-W | 20.1" | 510.54 mm |
| Table-L | 47.3" | 1,201.4 mm |
| # Axis | 4 | 4 |
| Control | CNC | CNC |
| Dimensions | 102 x 87 x 100 | 102 x 87 x 100 |
| Weight | 13800 | 13800 |
Year 2013
CNC Control yes
Type of CNC Control Fanuc 0i-MD
# Axis 4
Table Size 47.3" x 20.1"
Table Capacity 1764 pounds
X-Axis Travel 41.34 inches
Y-Axis Travel 20.5 inches
Z-Axis Travel 20.5 inches
Rapid Traverse Rate (X/Y/Z) 1417/1417/1181 ipm
Spindle Taper CAT 40 Big Plus
Spindle Speed 10,000 RPM
Main Motor 20 hp
Tool Changer Capacity 30
Coolant Thru Spindle yes
Dimensions 102" x 87" x 100"
Weight 13800 pounds
Equipped With
- Fanuc 0i-MD CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Spindle Chiller
- 30 Station Side Mount Tool Changer
- Coolant Thru Spindle
- CAT 40 Big Plus
- Tsudakoma RN-100R-2 4th Axis Rotary Table w/Tailstock
