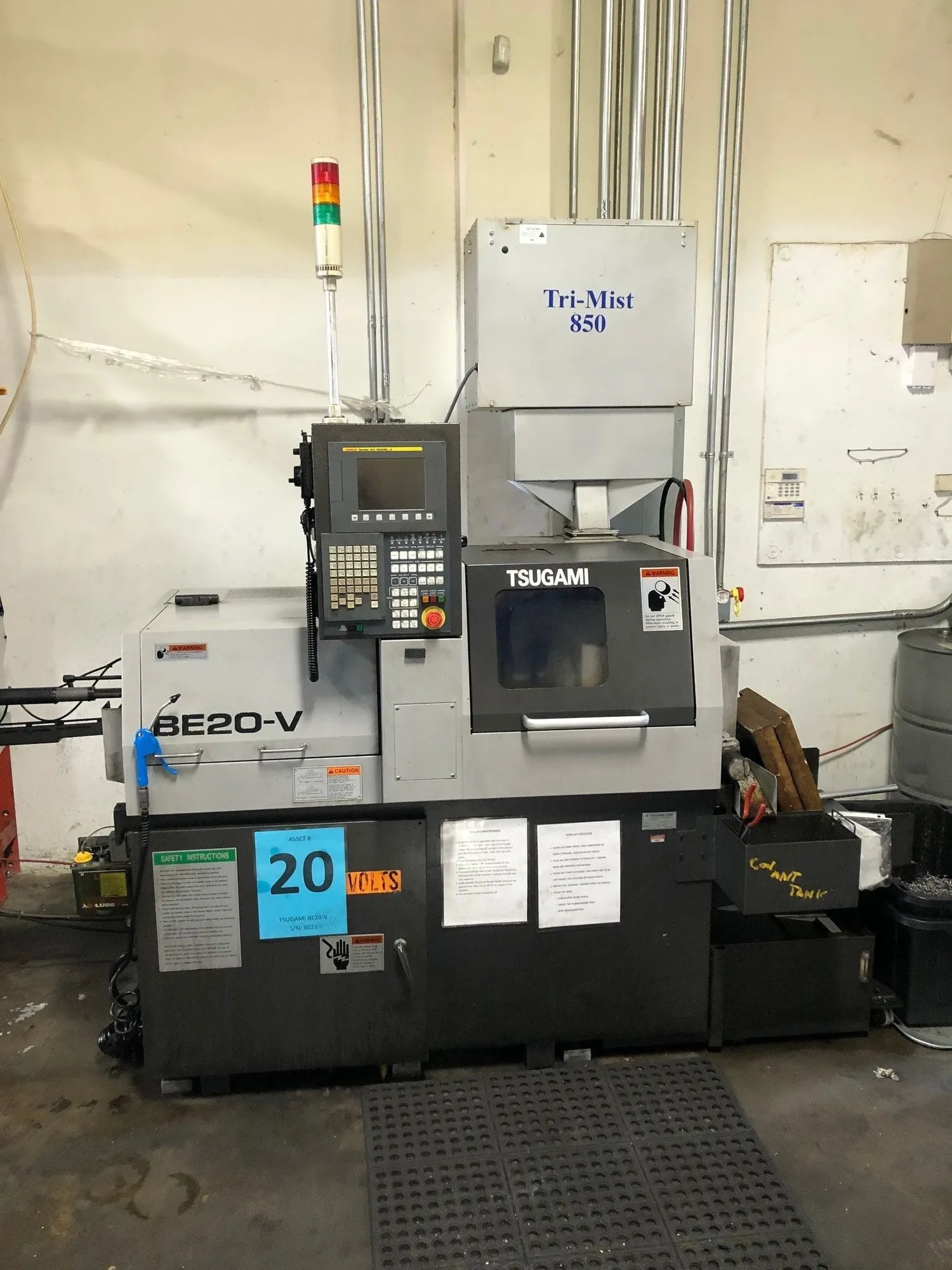

USED 2011 TSUGAMI BE20-V

2011 Tsugami BE20-V 20mm Swiss Turning Center with Fanuc 31i-B Control, Parts Catcher, Mist Collection, Fire Trace, and 12' Edge Barfeed.

Number of Controlled Axes......................5
Spindle Speed..................................12,000 RPM
Feed Rate......................................236 IPM
Max turning / cutting length...................8.27"
Machining Stroke with Rotary Guide Bushings....6.69"
Total Number of Tool Positions.................20
Number of OD Tools.............................5
Number of Cross Rotary Tools...................3
Number of Cross Rotary Front Fixed Tools.......4
Number of Cross Rotary Back Fixed Tools........8
Tool Size......................................0.47" x 0.47" x 3.35"
Bars tock range................................3mm – 20mm
Max workpiece length...........................210 mm/ 170mm w/Rotary Guide Bushing/ 45mm w/ Non-Guide Bushing
Max main spindle drilling diam.................7mm
Max main spindle tapping diam..................M6 x 1
Max back spindle gripping diam.................20mm
Max back spindle drilling diam.................7mm
Max back spindle tapping diam..................M6 x 1
Max rotary tool drilling diam..................6mm
Max rotary tool tapping diam...................M5 x 0.8
Tool size......................................12 x 12 x 85mm
Barfeeder Dimensions...........................180" x 24" x 48"
Barfeeder Weight...............................1,320 Lbs
Machine Dimensions.............................65" x 43" x 67"
Machine Weight.................................4,000 lbs

Fanuc 31i-B CNC Control
Parts Catcher
Mist Collector
Fire Trace
Convertible Machine
Runs with or without Guide Bushings
Y-Axis Milling & Turning with Cross Tool Spindle
Sub-Spindle
Edge Minute Man 320 Barfeed

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
