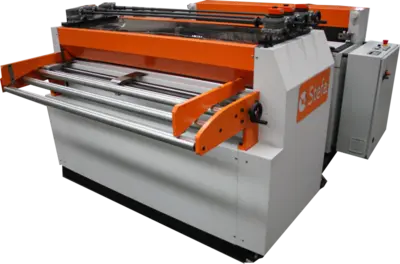

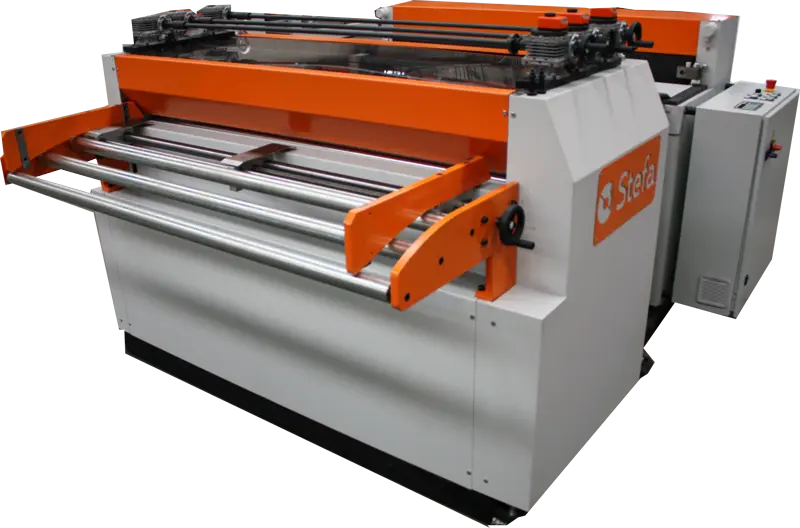

NEW STEFA LCAS 1.5
Overview

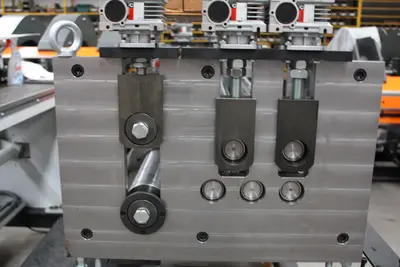

The Stefa LCAS1.5 is a cut-to-length line featuring longitudinal slitting and transverse cutting capabilities. Longitudinal cutting is performed through penetration of rotating knives, with vertical movement of the slitting shaft controlled by wheels equipped with millimeter indicators for precise adjustment.
The rotary knives are adjusted by free positioning and secured with an easy lock system by screw. The slitting area is protected by a metallic door with a safety sensor. The system is also equipped with a mechanical shear capable of cutting up to 1.5 mm thickness, safeguarded by photoelectric barriers.
Specs
Model: LCAS1.5
Maximum Thickness Allowance: up to 1.5 mm (TS 45 kg/mm²)
Maximum Width of Steel Sheet: 1550 mm
Number of Straightener Rolls: 3
Straightener Roll Diameter: 79 mm
Number of Slitting Knives: 3
Diameter of Slitting Knives: 180 mm
Production Speed: up to 15 m/min
Equipment Power: 4.5 kW (400V, 3-phase + N)
Total Line Power: 10 kW
Tolerance on Cut Length: +/- 1 mm
Tolerance on Slitting Cut: +/- 0.5 mm
Tolerance on Cross Section: +/- 0.2 mm
Equipped With
Slitting Unit with Rotating Knives
Mechanical Shear (LCAS Model)
Straightening System with 3 Rolls
