NEW 2008 TARNOW (TOOLMEX) TUR-930

2008 TARNOW (TOOLMEX) Model TUR-930 Hollow Spindle Lathe, 37.4 Swing, 157" Centers
2008 Toolmex-Poreba TUR-930 Heavy Duty Big Bore Oil Country 12.5" Thru-Hole 37.4" Swing 157" Centers CNC Hollow Spindle Lathe Manual Plus CNC Lathe. Excellent Capability Helps Operators Run More Productive with Siemens 810D CNC Job Shop Conversational Control Programing

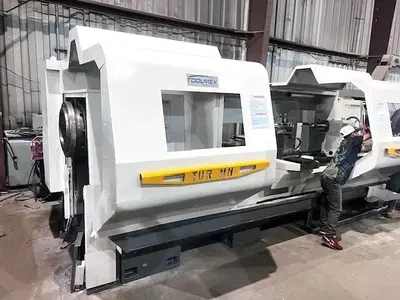

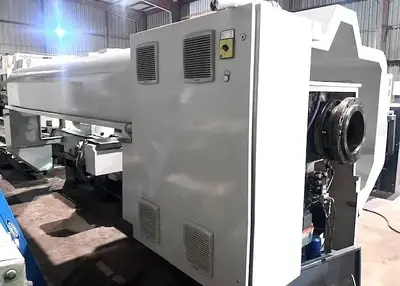

The Tarnow (Toolmex) TUR-930 is a heavy-duty, large-bore oil country CNC lathe frequently equipped with a Siemens 810D control. It features a 37.4" swing over the bed, 12.5" spindle bore, and center distances up to 157". It is designed for heavy cutting with a 30/45 HP motor, 24.5" wide bed, and 4-500 RPM spindle speeds
2008 Toolmex-Poreba TUR-930 Heavy Duty Big Bore Oil Country 12.5" Thru-Hole 37.4" Swing 157" Centers CNC Hollow Spindle Lathe Manual Plus CNC Lathe. Excellent Capability Helps Operators Run More Productive with Siemens 810D CNC Job Shop Conversational Control Programing
** Top Condition Tri-V Ways Dove Tail Ways
** Machine Special 2-Part Epoxy Paint with New Plexiglass!!
Fabryka Maszyn "Tarnów" (FMT), located in Poland, specializes in manufacturing heavy-duty lathes and grinding machines. Originally established in 1917 as a railway workshop and later part of the state-owned Zakłady Mechaniczne Tarnów (ZMT), the company rebranded in 2010. Following a 2013 bankruptcy, it was acquired by a private Polish company (Łukasz Świderski & Józef Świderski S.C.) to continue traditional lathe production.

Capacity 37.4" x 157"
Swing Over Bed 37.4"Main Specifications
Swing Over Bed 37.4"
Distance Between Centers 157"
With Tailstock 148"
Swing Over Cross Slide 24.8"
Hole Thru Spindle 12-1/2"
Spindle Nose A2-20
Spindle Speeds 4 to 500 RPM
Taper of Spindle Bore & Center MT6
Cross Slide Travel 21.25"
Tailstock Quill Travel 11-3/4"
Tailstock Quill Diameter 4.9"
Inch Threads
Metric Threads
Modular Pitches 0.5 to 7 m
Diametrical Threads 4 to 56 D.P.
Dimensions (W x L x H) 11608" x 200" x 95"
Weight 21,600 Lbs.
Distance Between Centers 157"
With Tailstock 148"
Swing Over Cross Slide 24.8"
Hole Thru Spindle 12-1/2"
Motor
Spindle Nose A2-20
Spindle Speeds 4 to 500 RPM
Max. Workpiece Weight, Unsupported: 8,800 Lbs
Max. Workpieces Weight, 1 Steady: 11,000 Lbs
Taper of Spindle Bore & Center MT6
Cross Slide Travel 21.25"
Tailstock Quill Travel 11-3/4"
Tailstock Quill Diameter 4.9"
Inch Threads Yes
Metric Threads Yes
Modular Pitches 0.5 to 7 m
Diametrical Threads 4 to 56 D.P.
Dimensions (W x L x H) 11608" x 200" x 95"
Weight 21,600 Lbs.

EQUIPPED WITH:

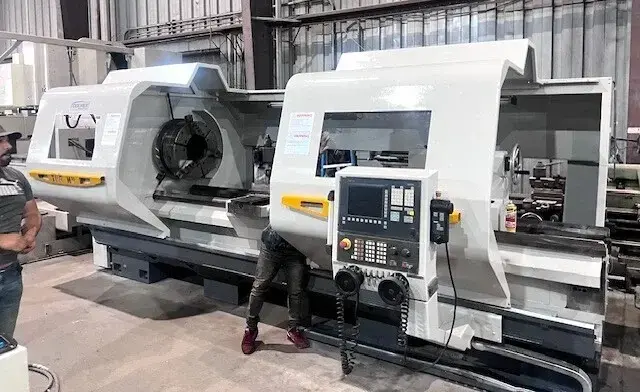

Siemens 810D CNC Conversational Job Shop Programing Control

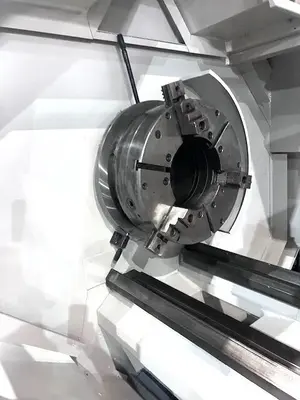

3- Jaw Chucks Steady Rest
Taper Attachment
4 Way Rapid Traverse
Chip Pans Steady Rests

Special Features:
Extra Heavy-Duty Headstock
30/45 HP. Main Drive with CSS 2-Range Headstock

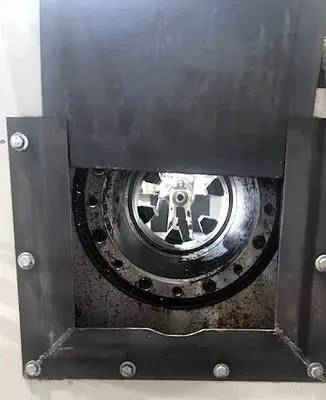

Big Bore Oil Field Country 12.5" Spindle Bore
24.5" Wide Tri-V Bed Design with Extra Wide V-Dove Tail Ways.

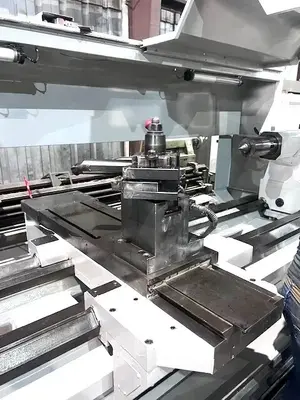

Full Length Cross Slide 14" Wide Bridge
11,000 Lbs. Between Centers with Steady Rest
Enhance "Thread Repair" Cycles

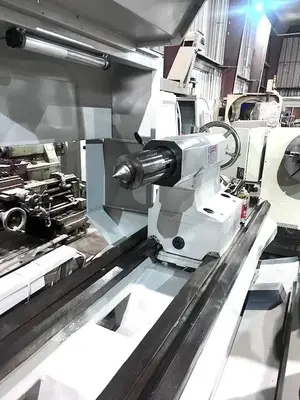

Heavy Duty Tailstock 5" Diameter Quill
