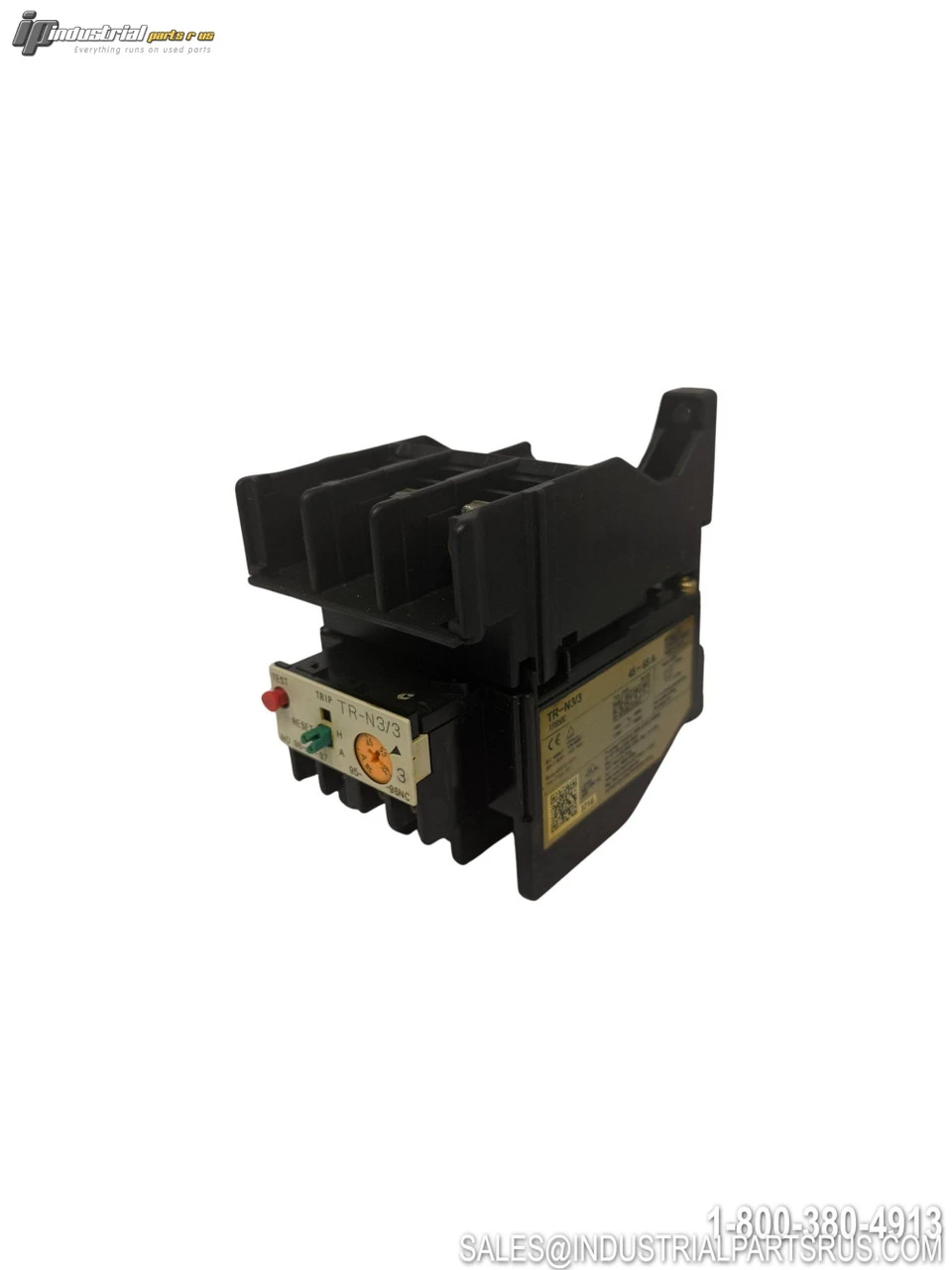

USED FUJI ELECTRIC TR-N3/3
Overview
Description
The Fuji Electric TR-N3/3 is a high-performance thermal overload relay designed to provide reliable motor overload protection for industrial applications. This 3-element relay features adjustable current settings ranging from 34A to 105A and is compatible with Fuji Electric SC-N3 contactors for on-contactor mounting configurations.
Specification
Value
Brand
Fuji Electric
Model/Part Number
TR-N3/3
Frame Size
N3
Current Setting Range
34-105A
Number of Elements
3-Element
Auxiliary Contact Rating
600V AC
Auxiliary Contact Configuration
1NO + 1NC
Reset Type
Manual/Auto Available
Mounting Type
On-Contactor/Separate
Compatible Contactor
SC-N3
Trip Class
Class 10
Thermal Current Rating
100A
Standards Compliance
IEC 60947-4-1, UL, CSA
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1244
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Shelf: K-51
GTIN: 679523686161
Full Load Amps: 34-105A
Manufacturer: Fuji Electric
Part Number: TR-N3/3
Model: TR-N3/3
MPN: TR-N3/3
Type: Thermal Overload Relay
