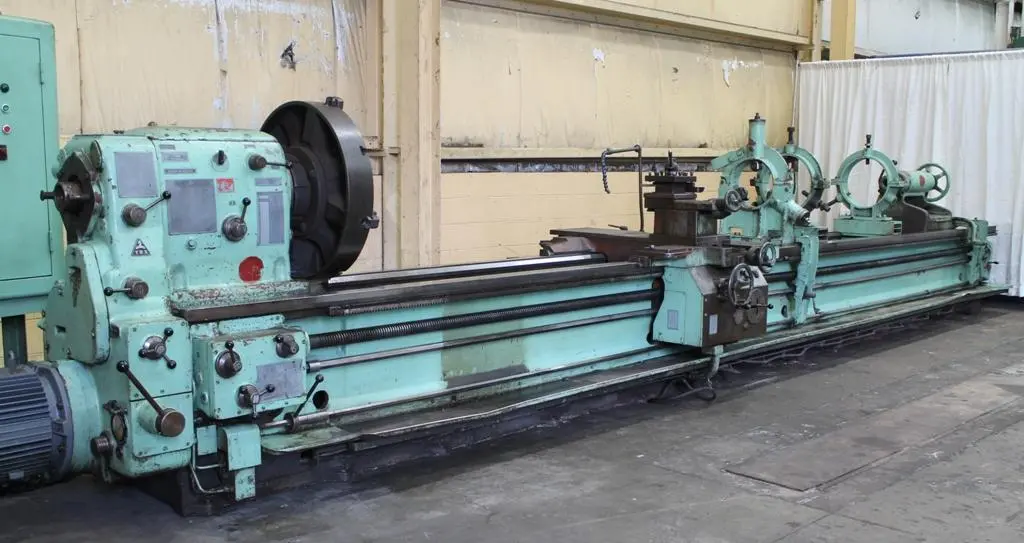

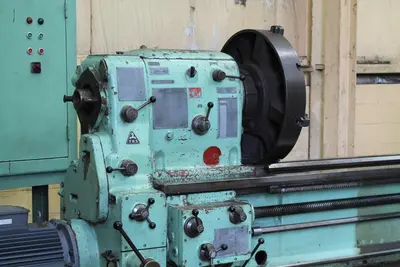

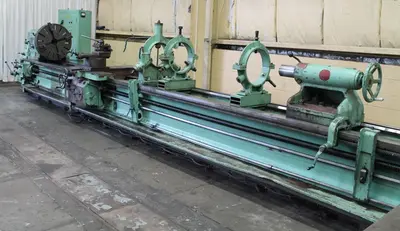

36" X 255" TOS ENGINE LATHE: STOCK #10905
Overview
Specs
SERIAL .............................. 0423124
MODEL ............................... SU-90A
SWING OVER WAYS ..................... 35.4331"
SWING OVER CROSS SLIDE .............. 23.315"
DISTANCE BETWEEN CENTERS ............ 255"(21'3")

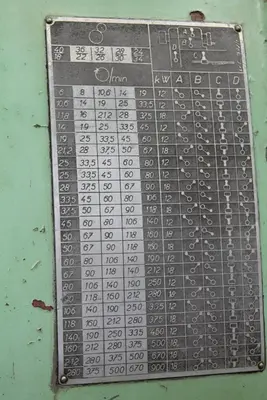

SPINDLE SPEEDS ...................... (30) 6 TO 900 RPM
FEEDS (METRIC) ...................... (41) 0.064 TO 6 MM
FEEDS (ENGLISH) ..................... (41) .0029 TO .088 IPR
THREADS ............................. (48) 7/8 TO 48 TPI
METRIC THREADS ...................... (48) 0.219 TO 48 MM PITCH
DIAMETER OF SPINDLE HOLE ............ 2-1/2"
TAPER ATTACHMENT .................... YES
CHUCK ............................... 30" 4-JAW CHUCK
STEADY RESTS ........................ 12" ROLLER
STEADY REST ......................... (2) 15" 3 POINT
RAPID TRAVERSE ...................... 4 WAY
THREAD DIAL ......................... YES
HARD WAYS ........................... YES
COOLANT WITH CHIP PANS .............. YES
SPINDLE DRIVE MOTOR ................. 20 HORSEPOWER
Brand
TOS
Type
Lathes, Engine
Stock No.
10905
