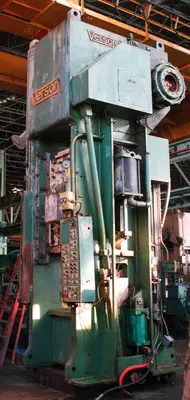

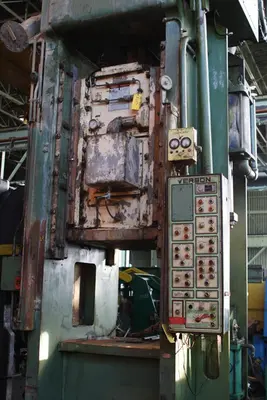

500 TON VERSON SSSC STAMPING PRESS 10" STROKE: STOCK #10910

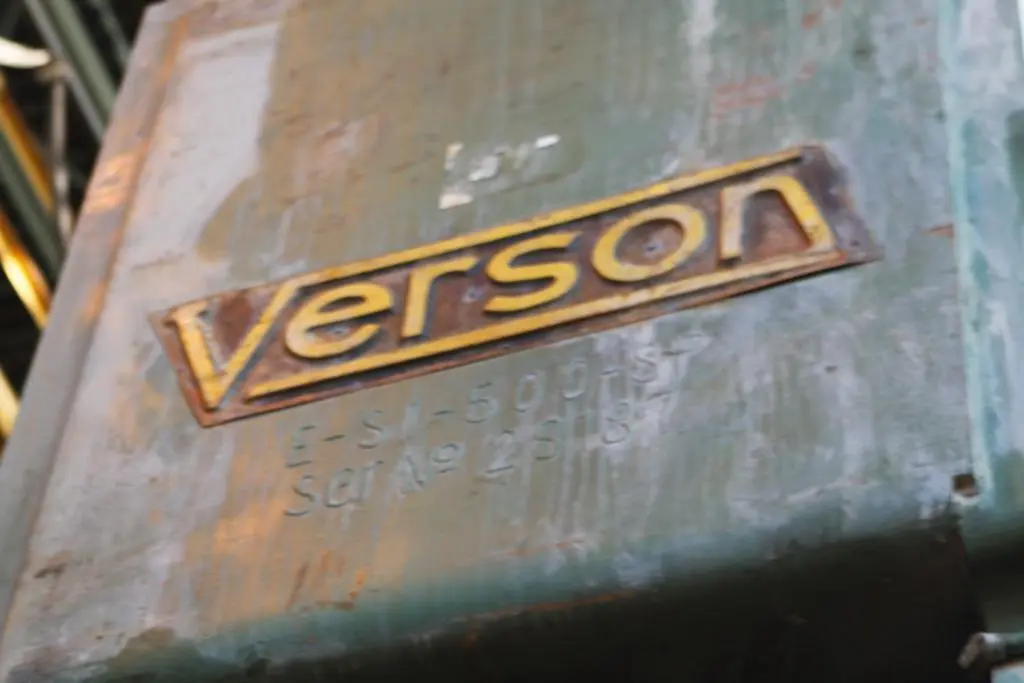

SERIAL ..................... 28187
MODEL ...................... E-S1-500-SP
CAPACITY ................... 500 TON
STROKE ..................... 10"
ADJUSTMENT ................. 6"
SHUT HEIGHT ................ 37" TO BED
SPEED ...................... 35 TO 60 SPM
BED ........................ 36" X 46"
SLIDE ...................... 36" X 36"
WELDED STEEL CONSTRUCTION .. YES
SINGLE BACK GEARED ......... YES
BOLSTER PLATE .............. 7" THICK
AIR CLUTCH & BRAKE ......... YES
AIR COUNTERBALANCES ........ YES
WINDOWS .................... 18" WIDE
CONTROLS ................... YES
MOTOR ...................... 100 HP
LIFT OUT ................... 25 TON X 2-1/2" STROKE

Brand
VERSON
Type
Presses, Straight Side
Stock No.
10910
