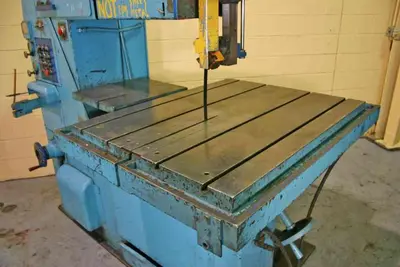

36" TANNEWITZ MODEL #3600 MH VERTICAL BANDSAW: STOCK #10952

SERIAL .............................. 14335
MODEL ............................... 3600 MH
DEPTH OF THROAT ..................... 36"
MAXIMUM UNDER GUIDES ................ 13"
AREA OF TABLE ....................... 32" X 41"
AREA OF SUB TABLE ................... 16-1/2" X 19-1/2"
BLADE SPEEDS ........................ 35 TO 6000 FPM
TABLE TILTS ......................... 45 DEGREES RIGHT, 10 DEGREES LEFT
HYDRAULIC TABLE FEED ................ 16" STROKE
LENGTH OF BLADE ..................... 17 5"
LENGTH OF BLADE WHEELS .............. 14 10"
WIDTH OF BLADE ...................... 1/8" TO 1"
HYDRAULIC BLADE TENSION ............. YES
HYDRAULIC GUIDE POST ADJUSTMENT ..... YES
TABLE FEED PRESSURE ................. 0# TO 600#
TRANSMISSION ........................ 3 SPEEDS
COOLANT ............................. YES
MOTOR ............................... 7-1/2 HORSEPOWER

Brand
TANNEWITZ
Type
Saws, Band, Horizontal
Stock No.
10952
