NEW 2014 MITSUBISHI MVR-40 5-FACE
Overview

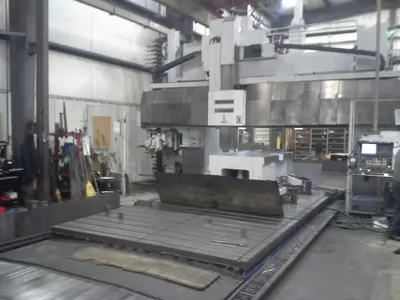

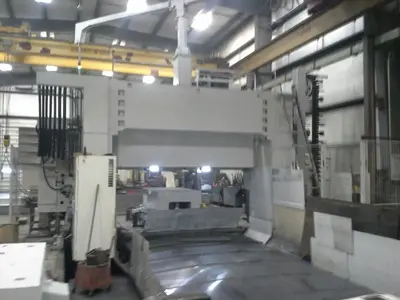

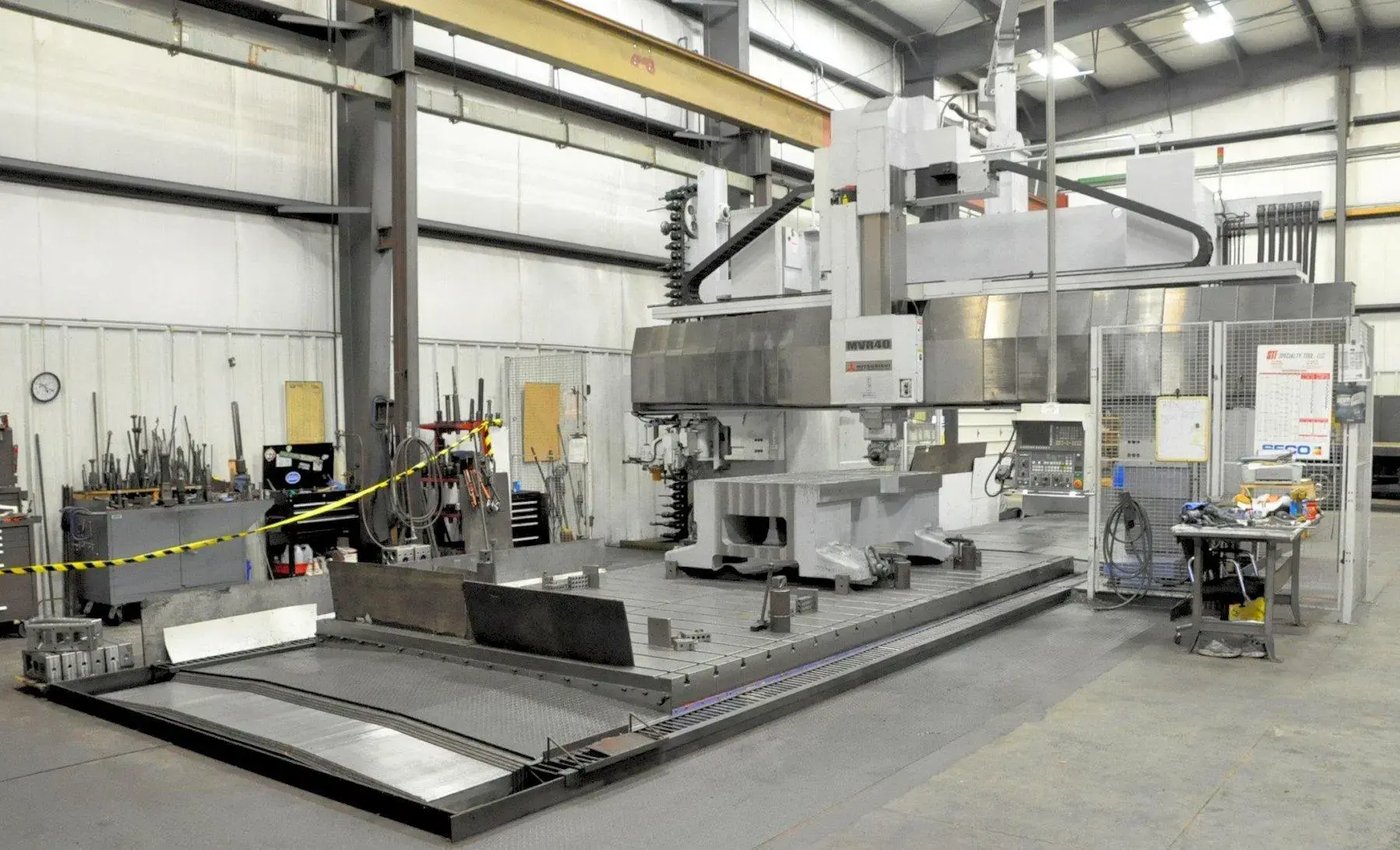

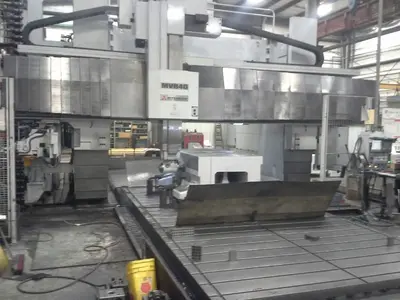

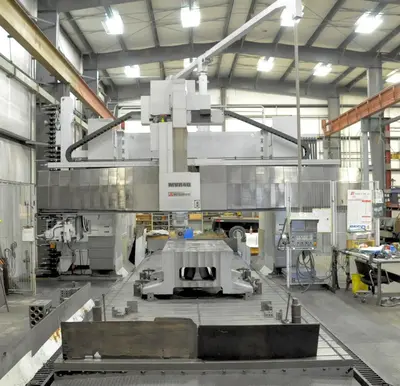

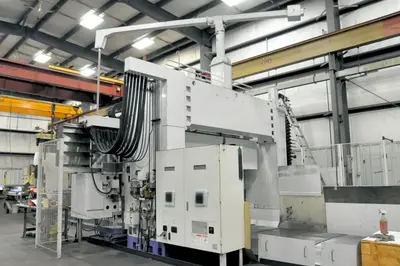

2014 MITSUBISHI Model MVR-40 CNC Vertical Double Column Bridge Mill
The Mitsubishi MVR-40 is a high-capacity 5-face double-column vertical bridge mill (circa 2014) featuring a ~244" (6200 mm) X-axis travel, 157.5" (4000 mm) Y-axis travel, and a 40 HP, 4000 RPM geared head spindle. Designed for large, heavy parts, it has a 77,000 lbs+ table load capacity, 80-tool ATC, and Fanuc controls.
Specs
2014 Mitsubishi MVR-40 CNC Vertical Bridge Mill
Table: 118.1" x 236.2"
Load Capacity: 77,000 Lbs
Travels: W-43.8"
X-244"
Y-157.5"
Z-31.5"
Ram Size: 13.8" Square
CNC Control Fanuc 31i
Spindle Nose to Table: 84.6" (Column Riser Blocks)
Width Between Columns: 147.6"
CUTTING FEEDS .039-393.7 IPM
X-AXIS POSITIONING ACCURACY +/- 0.0010/244.1"
Y-AXIS POSITIONING ACCURACY +/- 0.0008/157.5"
Z-AXIS POSITIONING ACCURACY +/- 0.0002/31.5"
W-AXIS POSITIONING ACCURACY +/- 0.0003/43.3"
RAPID TRAVERSE, X-AXIS 590.55 IPM
RAPID TRAVERSE, Y-AXIS 866.14 IPM
RAPID TRAVERSE, Z-AXIS 393.70 IPM
RAPID TRAVERSE, W-AXIS 118.11 IPM
Geared Head Spindle Yes
Motor 40 H.P.
Speed 17-4,000 RPM
Tool Capacity 80 Tools
Right Angle Head 1 Degree Indexing
Tooling CV 50
5-Face Machining Software Included
Inch/Metric Conversion Yes
Helical Interpolation Yes
Rigid Tapping with 3 Dimensional Tapping Yes
Coolant/Air through Spindle @ 141 PSI
Chip Conveyors Yes
Prepped for Workpiece Probing Yes
Equipped With
Equipped With

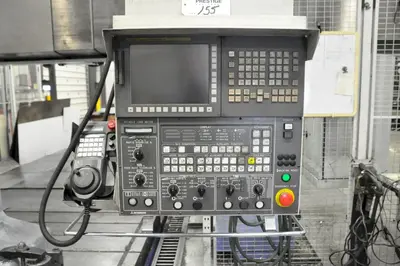

FANUC 31I-A CNC CONTROLS

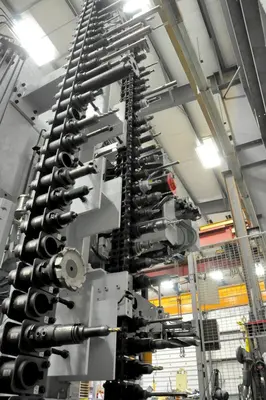

80 POSITION AUTOMATIC TOOL CHANGER

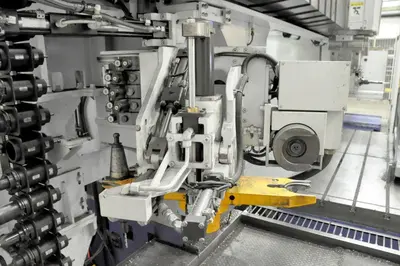

MITSUBISHI VHRH-30-35-35P-AC CNC RIGHT ANGLE HEAD WITH 1-DEGREE INDEXING
5-FACE MACHINING SOFTWARE
GEARED HEAD
ATTACHMENT STORAGE FOR RIGHT ANGLE HEAD
FACTORY COLUMN RISER FOR 84.6" CLEARANCE SPINDLE NOSE TO TABLE
RIGID TAPPING
MP SCALES ON X,Y,Z,W AXES
COOLANT/AIR THRU SPINDLE, 141 PSI
TELESCOPING WAY COVERS
AUTOMATIC HEAD CHANGER SYSTEM CHIP CONVEYOR
TOOLING PACKAGE AVAILABLE PRICE ON REQUEST
