NEW FUJI ELECTRIC VKA667AQ
Overview
Description

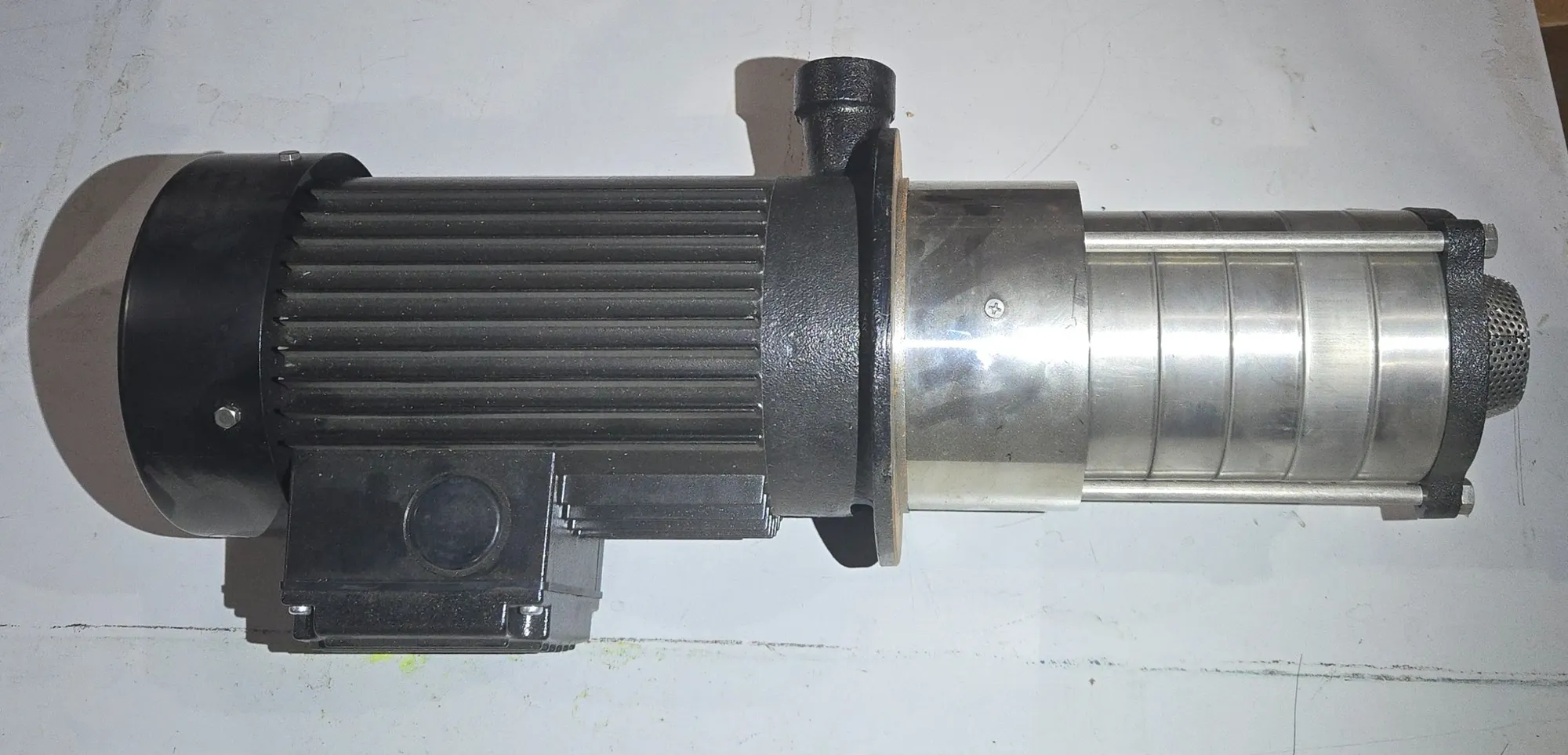

This listing is for a NEW Fuji Electric coolant pump, model VKA667AQ. This three‑phase industrial pump is designed for continuous coolant circulation in CNC machines and manufacturing equipment. The pump is rated at 1.1 kW at 50 Hz and 1.8 kW at 60 Hz and features a vertical multi‑stage construction suitable for machine tool coolant systems.

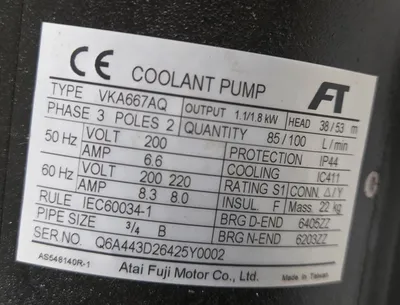

Specifications
| Dimensions | 25X13X13 | 25X13X13 |
|---|---|---|
| Weight | 54LBS | 54LBS |
Manufacturer: Fuji Electric
Model: VKA667AQ
Condition: NEW
YOM: n/a
Device Type: Industrial Coolant Pump
Motor Type: 3-Phase AC
Number of Poles: 2
Approved Liquids:
Water-based cutting fluids
Water-soluble coolants
Emulsified machining coolants
Low-viscosity industrial coolant fluids
Power Rating:
50 Hz: 1.1 kW
60 Hz: 1.8 kW
Voltage:
50 Hz: 200 V
60 Hz: 200 / 220 V
Current:
50 Hz: 6.6 A
60 Hz: 8.3 / 8.0 A
Rated Flow:
50 Hz: 85 L/min
60 Hz: 100 L/min
Rated Head:
50 Hz: 38 m
60 Hz: 53 m
Protection Rating: IP44
Insulation Class: F
Cooling Method: IC411
Duty Rating: S1
Connection: Delta / Wye
Pipe Size: 3/4
Pump Mass: 22 kg
Country of Origin: Taiwan
