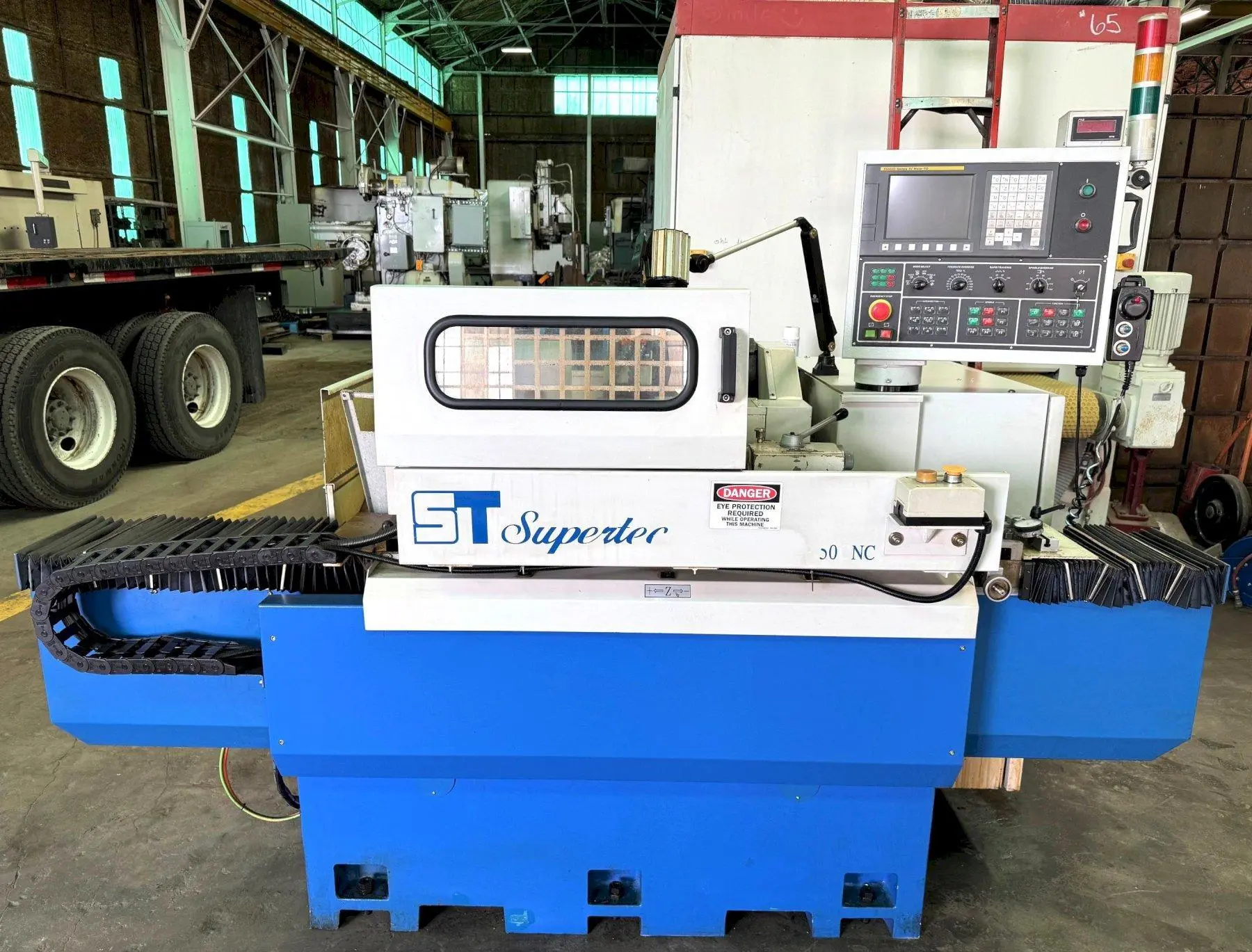

SUPERTEC CNC CYLINDRICAL GRINDER
MODEL: G20P-50CNC

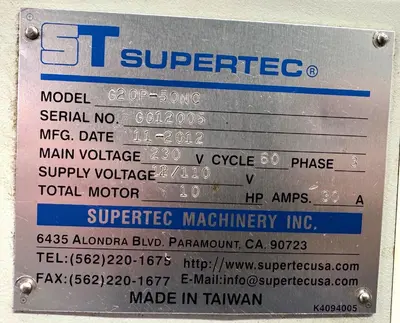

SERIAL NUMBER: GG/2005 Year: 2012
GENERAL SPECCIFICATIONS
Maximum Grinding Diameter: 8"
Maximum Grinding Length: 18"
Maximum Load Capacity: 176 Lbs.
Swing Over Table: 8"
TABLE
Z-Axis Travel Distance: 18"
Swivel Angle: 0 - 7 Degrees
Least Travel Increment: .0001"
Rapid Feed Rate: 315 IPM
WHEELHEAD
X-Axis Travel Distance: 6"
Swivel Angle: +/- Fixed
Least Travel Increment: .0001"
Rapid Feed Rate: 236 IPM

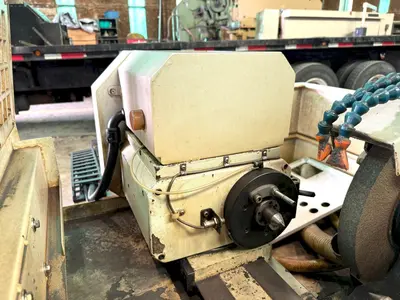

WORKHEAD
Center Taper: 3 M.T.
Spindle Bore Diameter: .79"
Speed: 50 - 500 RPM
GRINDING WHEEL
Speed: 1940 RPM
Wheel Size: 16" x 2" x 5"
TAILSTOCK
Tailstock Qui;; Stroke: 1"
Tailstock Taper: No. 3 M.T.
EQUIPPED WITH
5 HP Wheelhead Motor
1/2 HP Workhead Motor

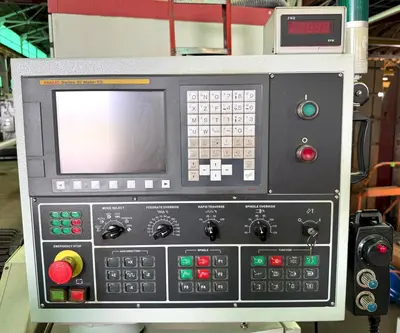

FANUC Series Oi Mate-TD CNC Control
Coolant System
Work Light
Machine Operation Manual, Electrical Prints, Parts List
FANUC Control Manuals
Approximate Weight: 5500 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
