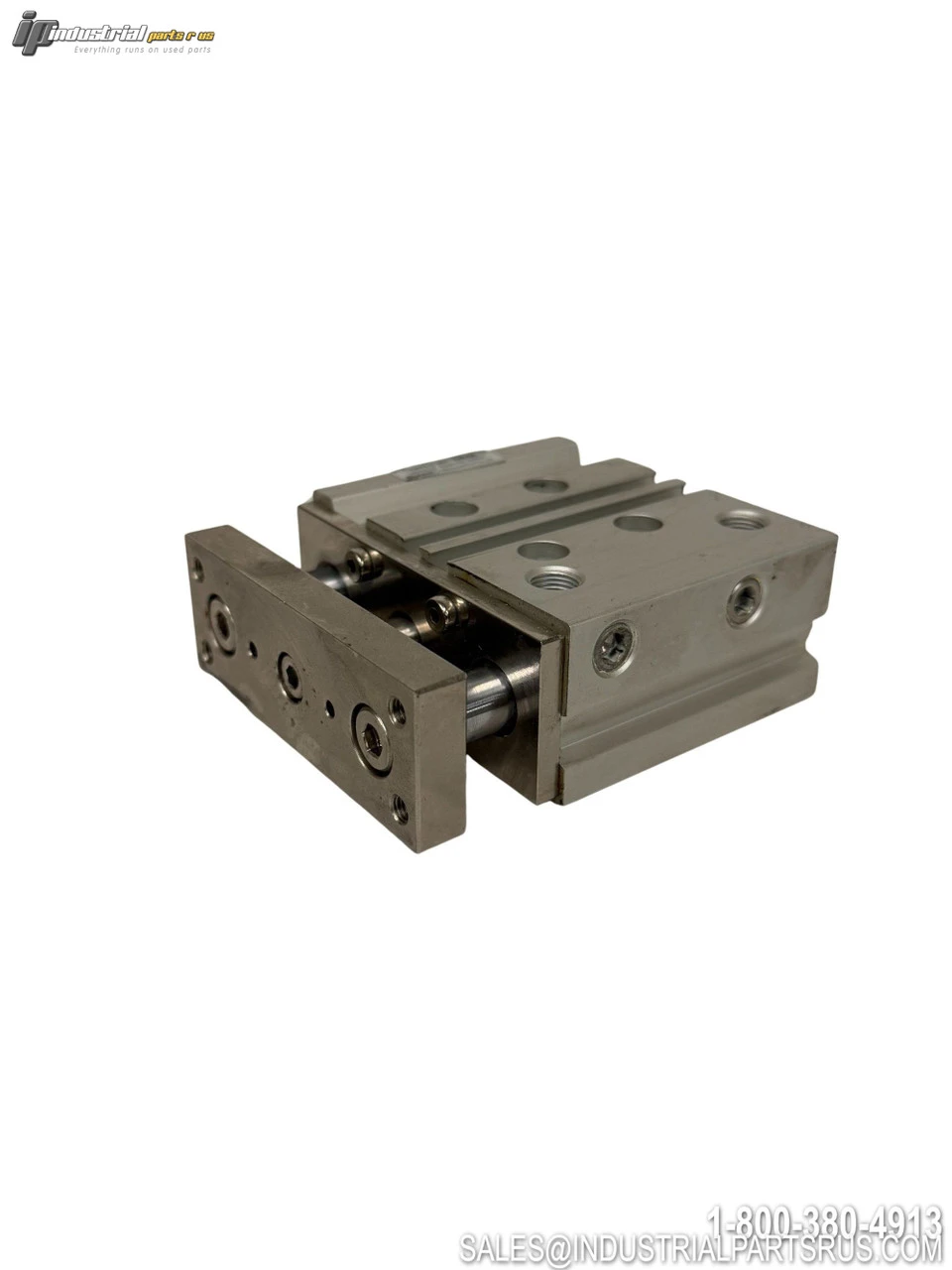

USED SMC MGPM20-30-XC35
Overview
Description
The SMC MGPM20-30-XC35 is a compact guide cylinder from SMC's MGP series featuring a 20mm bore diameter and 30mm stroke length. This model includes the XC35 option which adds a coil scraper for protection against welding spatter, making it ideal for use in machine tool environments exposed to coolants and welding operations.
Specification
Value
Brand
SMC
Model/Part Number
MGPM20-30-XC35
Manufacturer
SMC Corporation
Series
MGP
Cylinder Type
Compact Guide Cylinder
Bore Diameter
20mm
Stroke Length
30mm
Action Type
Double Acting
Bearing Type
Slide Bearing
Maximum Operating Pressure
1.0 MPa
Operating Temperature
-10°C to +60°C
Cushion Type
Rubber Cushion
Port Thread Type
Rc (R taper thread)
Body Material
Aluminum Alloy
Non-Rotating Accuracy
±0.07°
Special Option
XC35 - With Coil Scraper
Fluid
Compressed Air
Switch Capability
Auto Switch Mountable
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: AI1249
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: SMC
Part Number: MGPM20-30-XC35
Shelf: B-19
Bore Diameter: 20 mm
Model: MGPM20-30-XC35
MPN: MGPM20-30-XC35
Type: Pneumatic Cylinder
