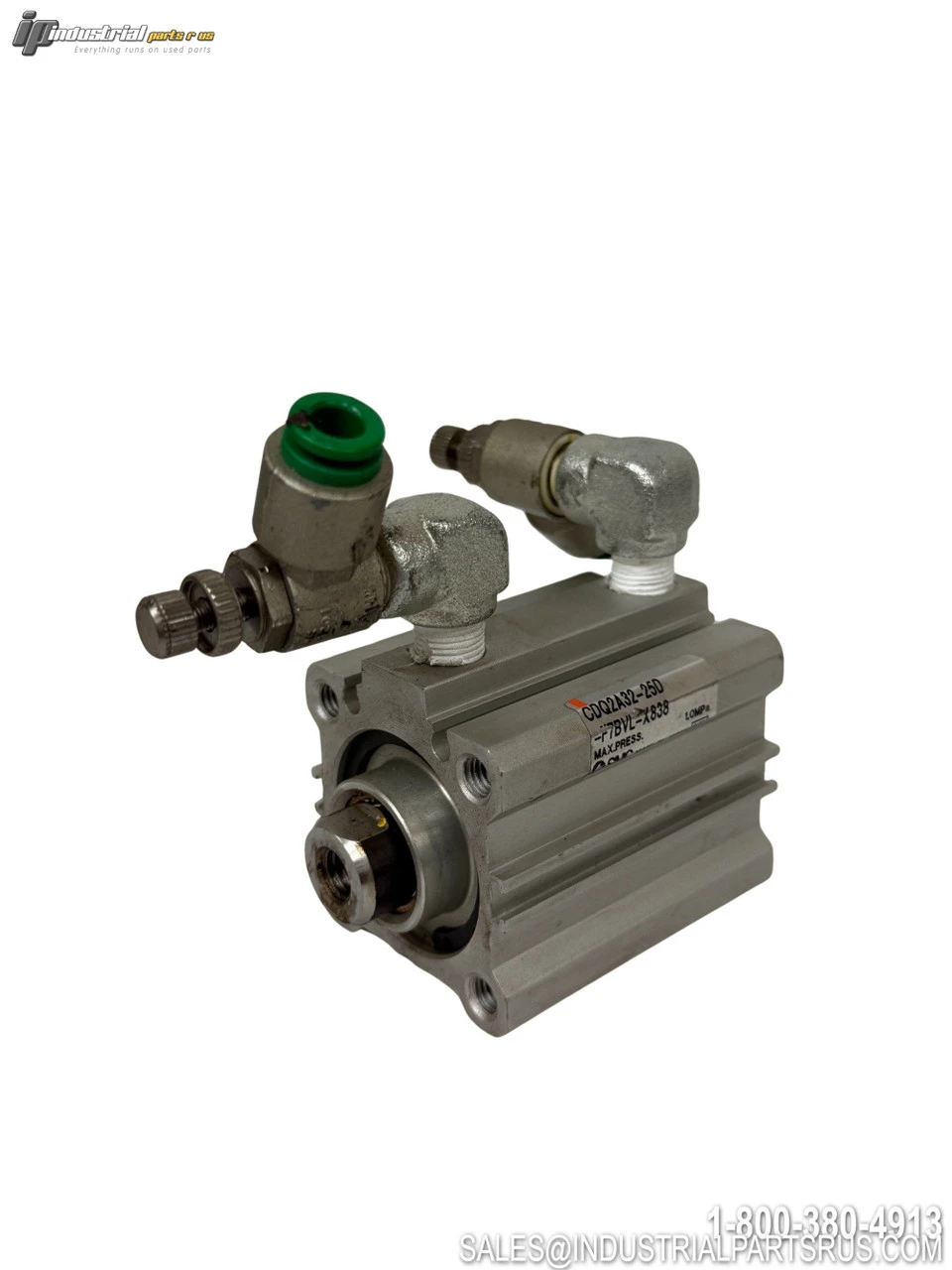

USED SMC CDQ2A32-25D
Overview
Description
The SMC CDQ2A32-25D is a compact pneumatic cylinder from SMC's CQ2 series, designed for space-saving applications in industrial automation. This double-acting, single-rod cylinder features a 32mm bore diameter with 25mm stroke length and both ends tapped mounting style. The CQ2 series offers reliable performance with rod end male thread and standard body construction.
Specification
Value
Brand
SMC
Model/Part Number
CDQ2A32-25D
Series
CQ2
Type
Compact Pneumatic Cylinder
Cylinder Action
Double Acting
Rod Configuration
Single Rod
Bore Diameter
32mm
Stroke Length
25mm
Mounting Style
Both Ends Tapped
Body Option
Rod End Male Thread
Port Thread Type
Rc Thread
Operating Pressure Range
0.1-1.0 MPa
Operating Temperature
-10°C to +60°C
Auto Switch Capability
Compatible (4 surfaces mount)
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1237
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Manufacturer: SMC
Part Number: CDQ2A32-25D
Shelf: A-11
Bore Diameter: 32 mm
Model: CDQ2A32-25D
MPN: CDQ2A32-25D
Type: Compact Cylinder
