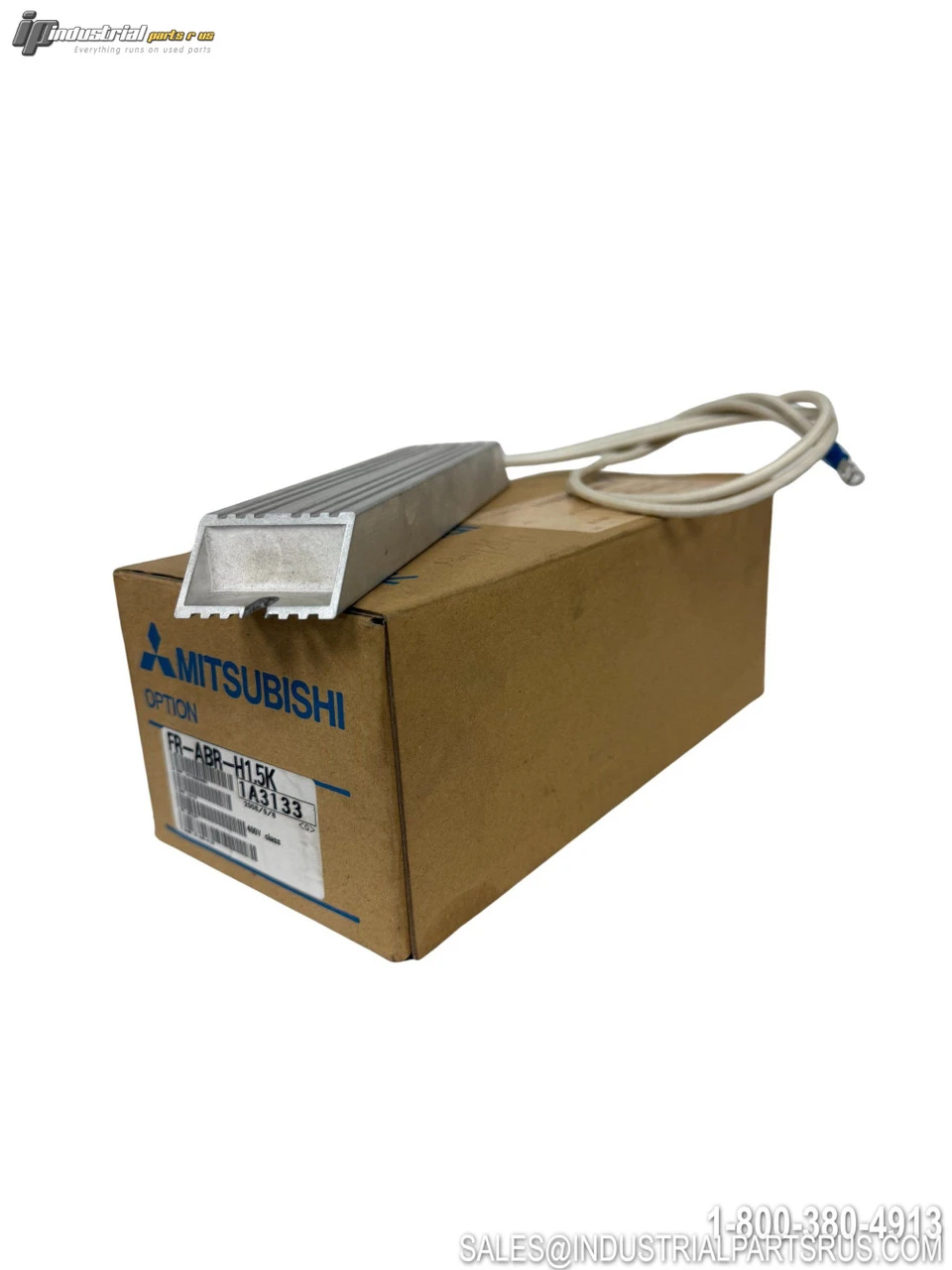

USED MITSUBISHI FR-ABR-H1.5K
Overview
Description
The Mitsubishi FR-ABR-H1.5K is an external high-duty brake resistor designed for use with Mitsubishi VFD inverters and frequency drives. This brake resistor is rated for 3-phase 400V class applications with 1.5kW/2HP power rating and 350Ω resistance. It functions as an external brake resistor that must be configured with the A740 series drives by turning off the internal resistor before fitting.
Specification
Value
Brand
Mitsubishi
Model/Part Number
FR-ABR-H1.5K
Product Type
External High-Duty Brake Resistor
Voltage Class
400V
Phase
3-Phase
Power Rating
1.5kW / 2HP
Resistance
350Ω
Continuous Duty Power
115W
Compatible Drive Capacity
2.2kW
Alternative Part Number
FRABRH15K
Weight
0.26 lbs
Application
Inverter/VFD Brake Resistor
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: AI1248
UPC: 679523686222
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 12.00
(in)
Height: 10.00
(in)
Depth: 15.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686222
Manufacturer: Mitsubishi
Part Number: FR-ABR-H1.5K
Shelf: D-11
Model: FR-ABR-H1.5K
MPN: FR-ABR-H1.5K
Type: Inverter
