USED 2013 HAAS EC-400

Low Hours

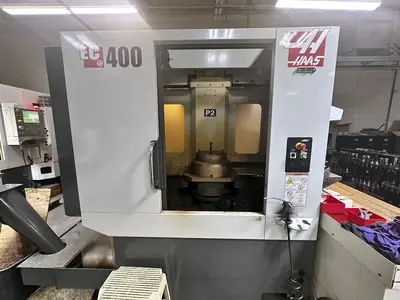

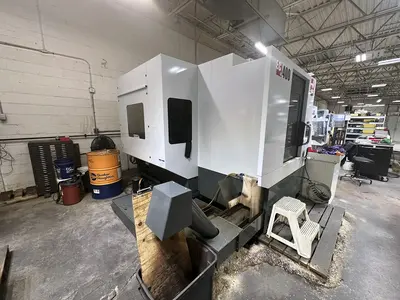

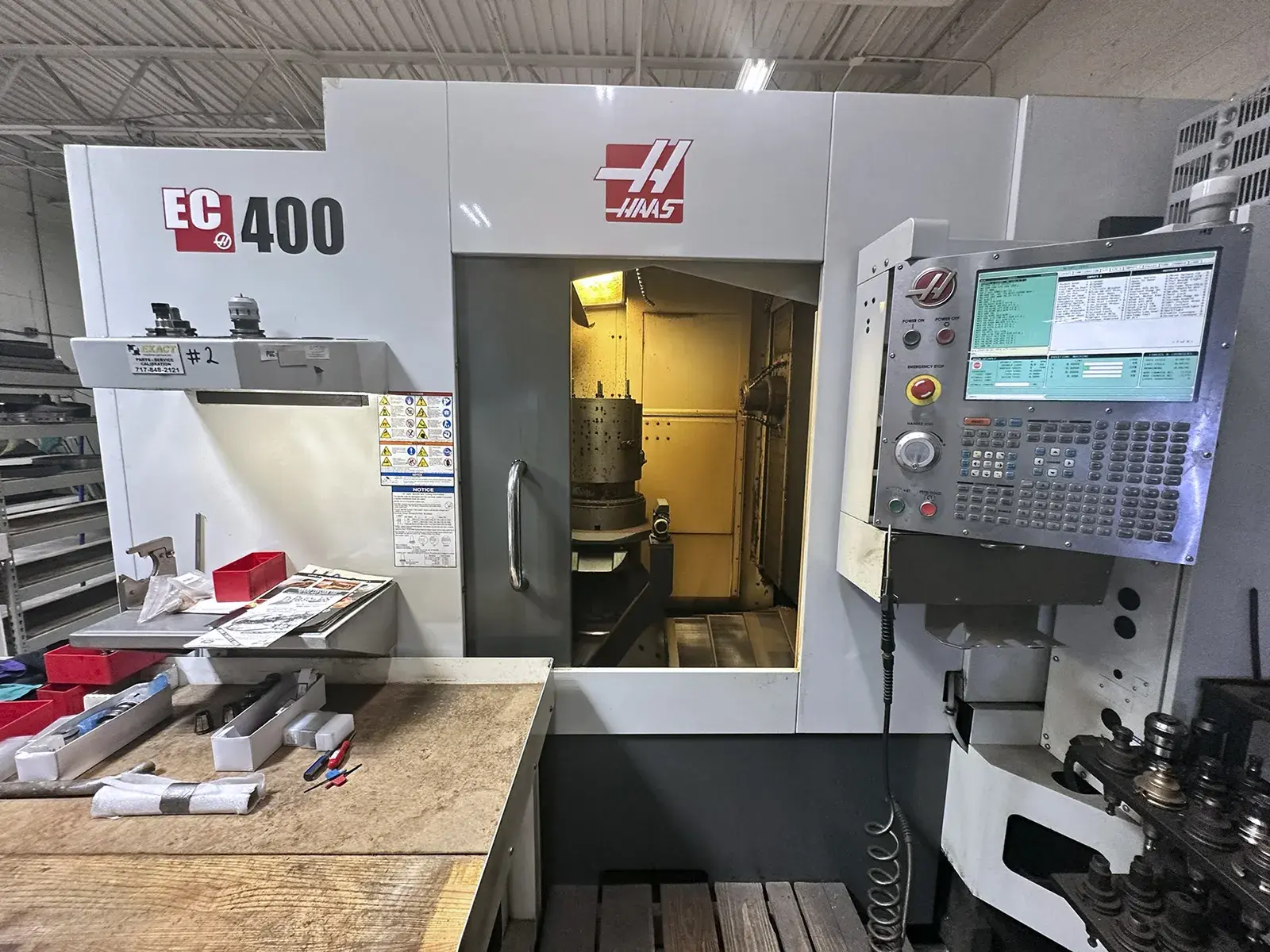

The Haas EC-400 Horizontal Machining Center (2013) is engineered for high-volume production and lights-out manufacturing. Designed for complex, multi-face machining, it efficiently produces housings, manifolds, and structural components. With reliable performance, precision accuracy, and versatile material handling, it’s ideal for demanding CNC environments seeking consistent, high-output results.

X-Axis Travel: 22"
Y-Axis Travel: 25"
Z-Axis Travel: 22"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Pallet Load: 1000 LBS
Spindle Speed: 12,000 RPM
Spindle Motor: 20 HP
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Pallet Size: 15.75" x 15.75"
Overall Dimensions: 201" x 102" x 115"
Weight: 24,480 LBS

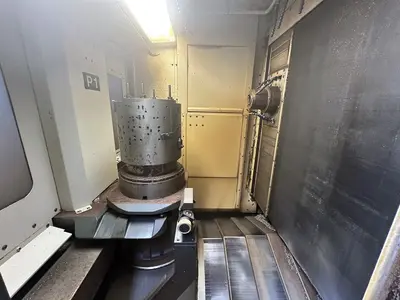

360 Degree Full 4th Axis
Chip Conveyor
80 Gallon Coolant Tank
Renishaw Probe
Tool Presetter
