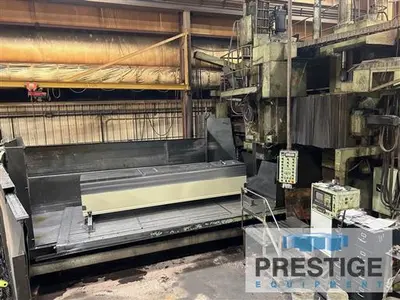

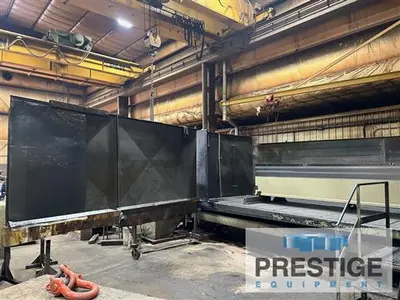

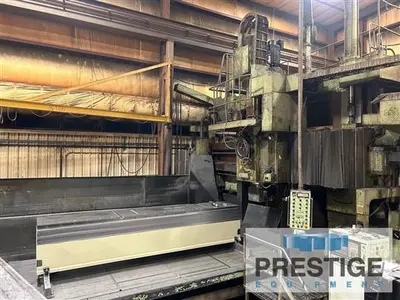

Okuma 5-Face CNC Bridge Mill

SPECIFICATIONS:
X-Axis Table Travel................... 196.85": 196.85"
Y-Axis Head Cross Travel.............. 86.61": 86.61"
Z-Axis Ram Vertical Travel: 31.49"
W-Axis Cross Rail Vertical Travel: 32.37"
Width Between Columns: 100"
Working Surface: 89" x 184"
Spindle Speeds: 2,000 RPM
Spindle Taper: #50
Spindle Drive Motor: 30 HP

Equipped With:
OSP-5020 CNC Control
112-Position Automatic Tool Changer

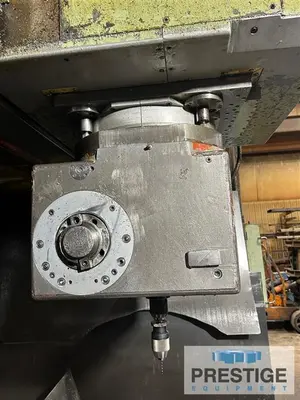

(1) Vertical Head with Vertical Spindle and Horizontal Spindle with 360 Deg. Rotation
Coolant-Thru-Spindle
Chip Conveyor

NOTE:
Inspect In Plant Under Power, Disassembly and Loading on Trucks Included

Features:
OSP-5020 CNC Control
112-Position Automatic Tool Changer
(1) Vertical Head with Vertical Spindle and Horizontal Spindle with 360 Deg. Rotation
Coolant-Thru-Spindle
Chip Conveyor
