USED 2026 GANESH GANESH

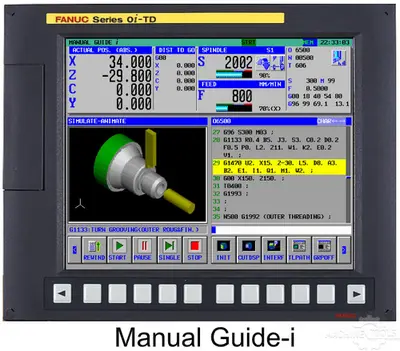

30” X 160” CNC Lathe with Fanuc 0i-TF Digital Control, 8 - Position Hydraulic Vertical Turret, Front & Rear A2-11 Spindle Nose for Mounting Chucks on Front & Rear of Spindle, Inch / Metric Left or Right - Hand Threading, Air Conditioner for Electrical Enclosure and Instruction Manual.GENERAL SPECIFICATIONS Swing Over Bed:                        30”Turning Diameter:                        22”Swing Over Cross - Slide:                    19”Turning Length:                        146”Center Height:                        15”Bed Width of Ways:                        18”Bed Casting Height:                        15.75”SpindleSpindle Motor Horsepower:                30 HPSpindle Speed:                        30 - 1,000 RPMRPM Spindle Bore:                        6.69”Spindle Nose (Front & Rear) / Bearing:            A2-11 / Taper Roller BearingSpindle Torque - Low / High Gear:            18 - 186 RPM / 60 - 600 RPMAxisRapid Traverse Feedrate X & Z:                394 IPMX - Axis Cross Slide Travel:                    19-⅝”Z - Axis Travel:                        157”X - Axis Ballscrew Diameter / Servo Motor Power:    1.25” / 2.0 HPZ - Axis Ballscrew Diameter / Servo Motor Power:    2” / 4.0 HPX - Axis Thrust:                        2020 LbsZ - Axis Thrust:                        3020 LbsCross Slide Dimensions:                    39” X 10”Minimum Input Unit:                    0.0001”Tool TurretTool Stations:                            4.92”Quill Stroke:                            7.87”Quill Taper:                            MT-6Electrical / Hydraulic / Coolant SystemsFanuc Control, Motors & Drives:                30 kVA, 220 VACHydraulic Pressure:                        435 PSI Coolant Pump:                        ¾ HPMachine Dimensions:                    324” X 85” X 80” / 20,944 LbsINCLUDES: Fanuc 0i-TF Digital Control, 8 - Position Hydraulic Vertical Turret, Front & Rear A2-11 Spindle Nose for Mounting Chucks on Front & Rear of Spindle, Inch / Metric Left or Right - Hand Threading, Air Conditioner for Electrical Enclosure and Instruction Manual.
