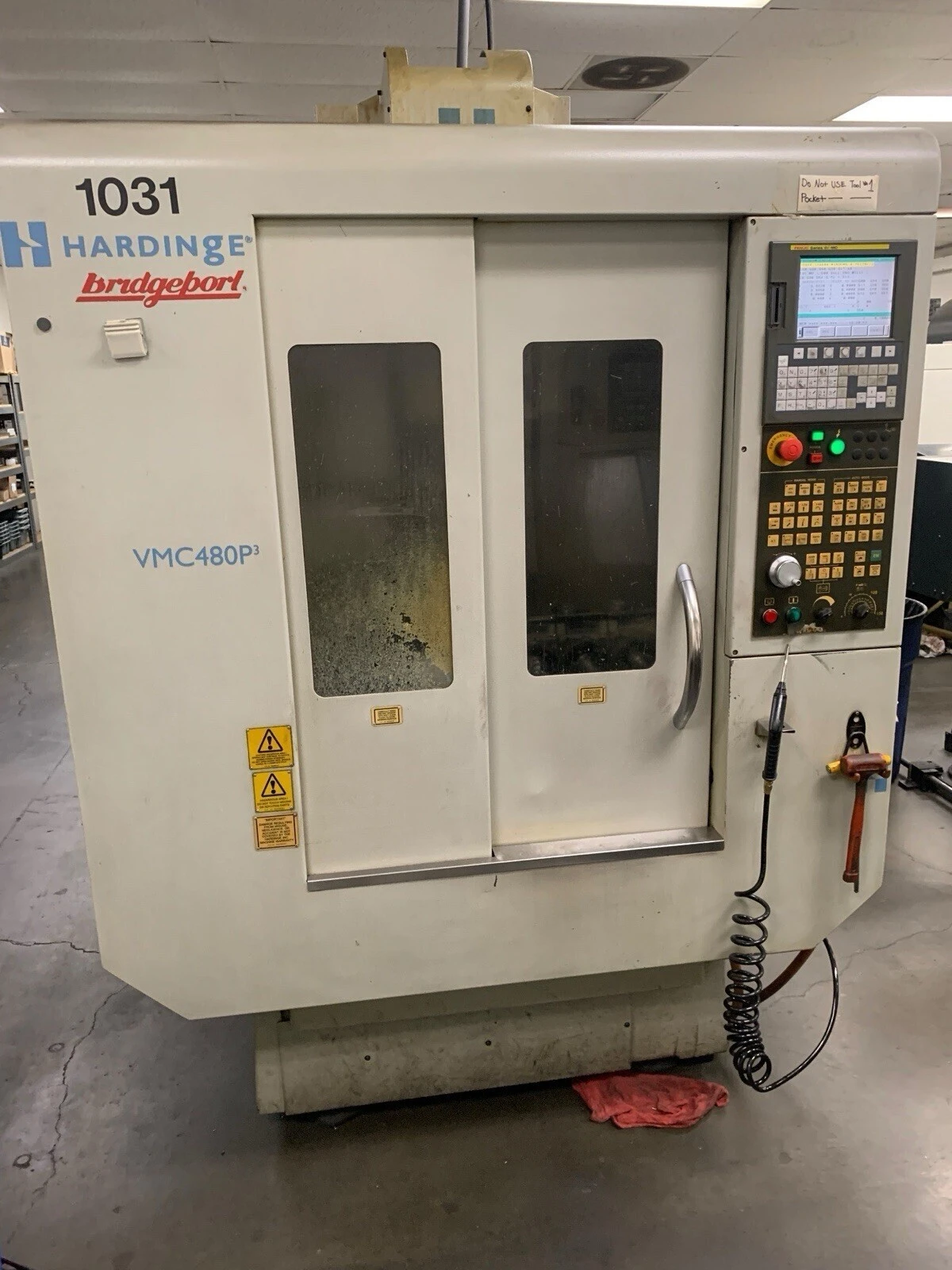

Used Vertical Machining Center features a 10 hp spindle, 10,000 RPM, and 20-tool ATC. With CAT 40 taper and 4-axis capability, it offers 18.9" X, 15.75" Y, and 16.93" Z movements. Includes a 3 Station 5C Indexer.
| X | 18.9" | 480.06 mm |
| Y | 15.75" | 400.05 mm |
| Z | 16.93" | 430.02 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 15.75" | 400.05 mm |
| Table-L | 23.62" | 599.95 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
3 Station 5C Indexer
