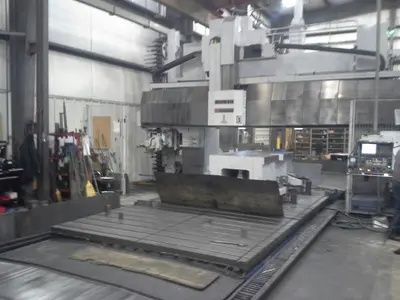

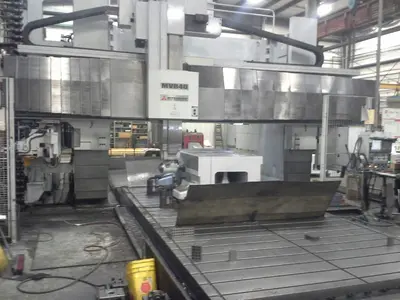

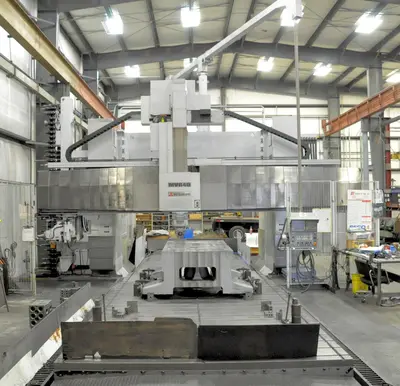

USED 2014 MITSUBISHI MVR40
Specs

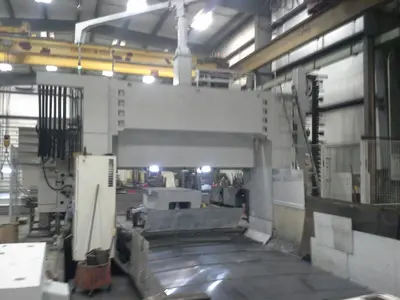

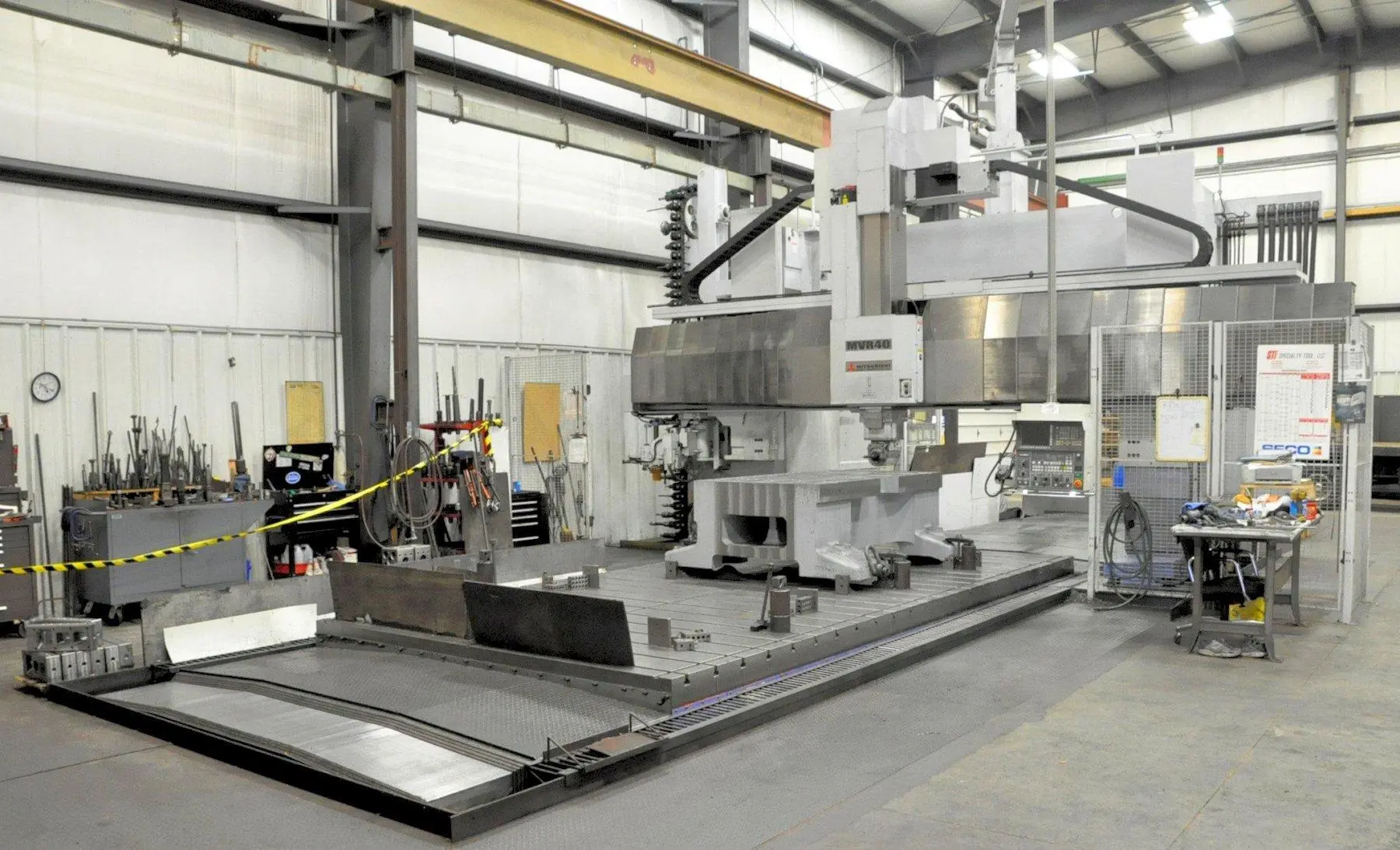

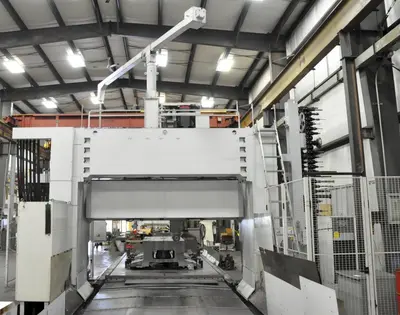

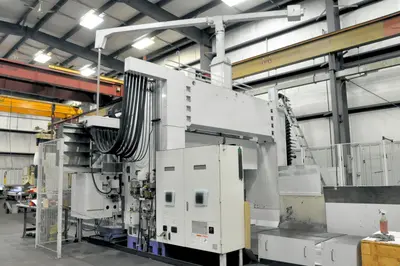

2014 Mitsubishi MVR-40 CNC Vertical Bridge Mill
Table: 118.1" x 236.2"
Load Capacity: 77,000 Lbs
Travels: W-43.8"
X-244"
Y-157.5"
Z-31.5"
Ram Size: 13.8" Square

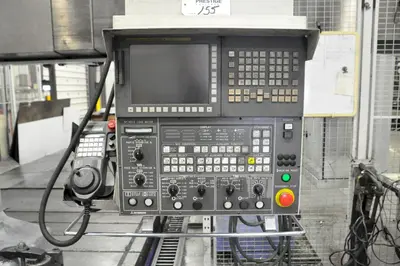

Fanuc 31i CNC Control
Spindle Nose to Table: 84.6" (Column Riser Blocks)
Width Between Columns: 147.6"
Geared Head Spindle
40 H.P. @ 17-4,000 RPM

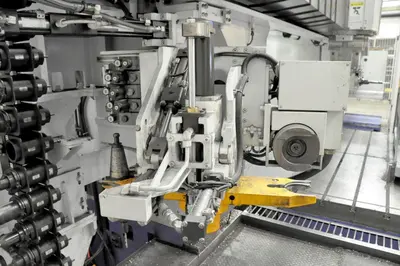

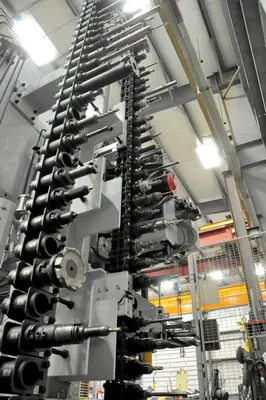

80 Tool Capacity with Right Angle Head, 1 Degree Indexing
CV 50 Tooling
5-Face Machining Software included
Inch/Metric Conversion, Helical Interpolation
Rigid Tapping including 3 Dimensional Tapping
Coolant/Air through Spindle @ 141 PSI
Chip Conveyors
Prepped for Workpiece Probing
