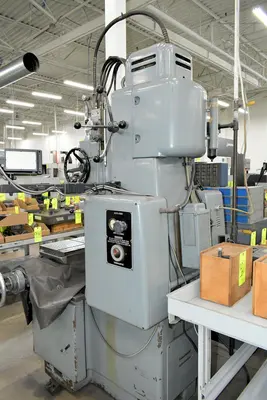

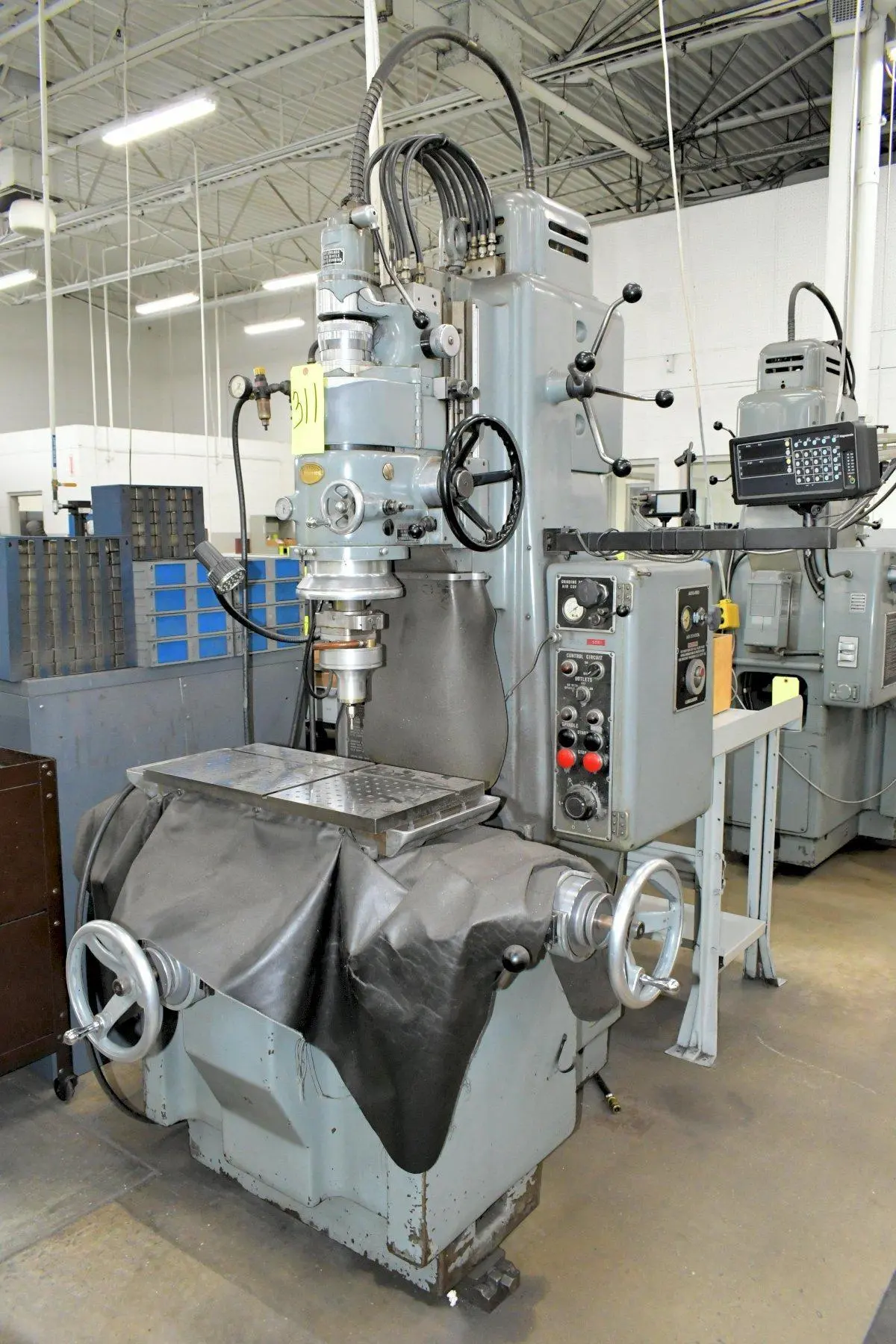

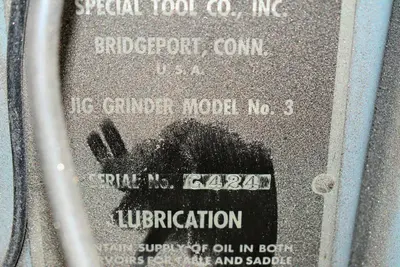

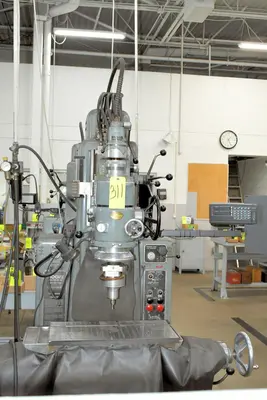

Moore #3 Jig Grinder
Table size: 11" X 24"
Table travels:
Longitudinal - 19"
Cross - 11"
Table to wheel collet: 24" max., 2" min.
Spindle column ways: 10"
Spindle speeds from 40 to 250 RPM,
Infinite Spindle feeds from 4 to 240 SPM Spindle travel: 3 5/8"
Machine equipped with:

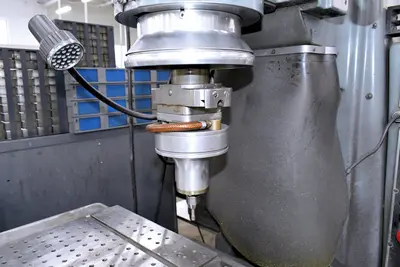

Moore 40,000 RPM spindle
Electrical motors and controls
Dimensions: FB X RL - 80" X 65"
Height: 102"
Est. weight: 3800#

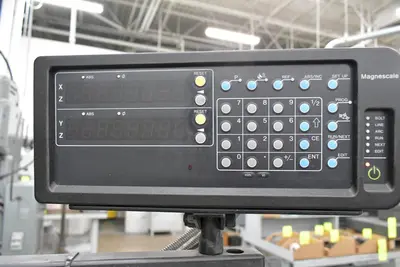

2-Axis Magnescale Digital Readout
