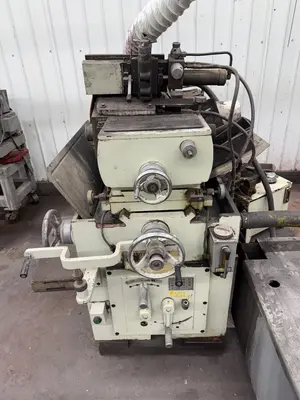

Supertec Model STC-12 Centerless Grinder
Grinding Diameter of Standard Workrest: 20-30mm (0.787-1.18")
Grinding Diameter of Special Workrest: 30-60mm (1.18-2.36")
Grinding Wheel Size: 305 x 140 x 120mm (12 x 5.52 x 4.728")
Regulating Wheel Size: 180 x 140 x 90mm (7 x 5.512 x 3.546")
Grinding Wheel Speeds: 1730 RPM
Regulating Wheel Speeds: 15-310 RPM
Truing for both Wheels: Hydraulic Power Feed
Swivelling Angle of Regulating Wheel: +/- 5 Degree

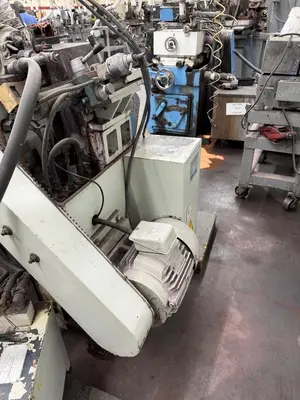

Grinding Wheel Drive Motor: 5 H.P.
