NEW 2010 HANKOOK VTC-5060Y
Overview
Description

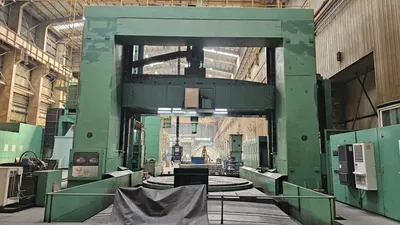

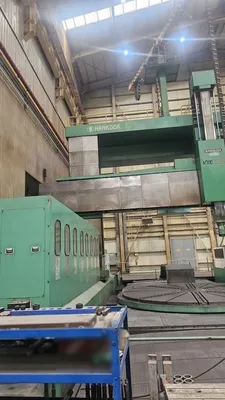

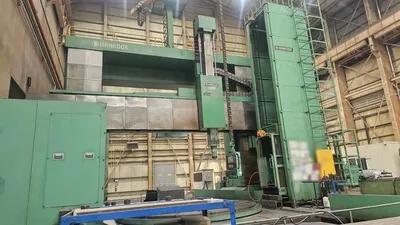

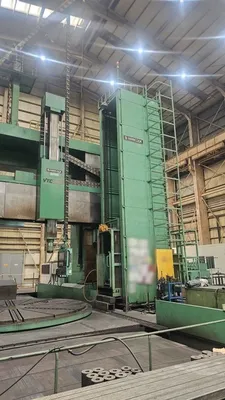

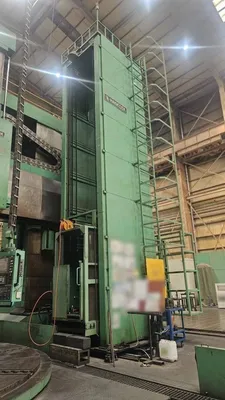

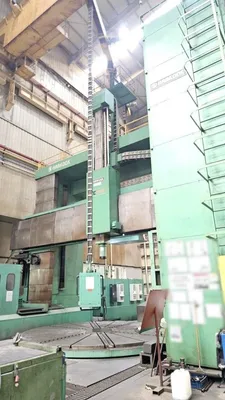

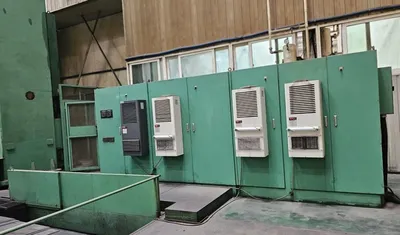

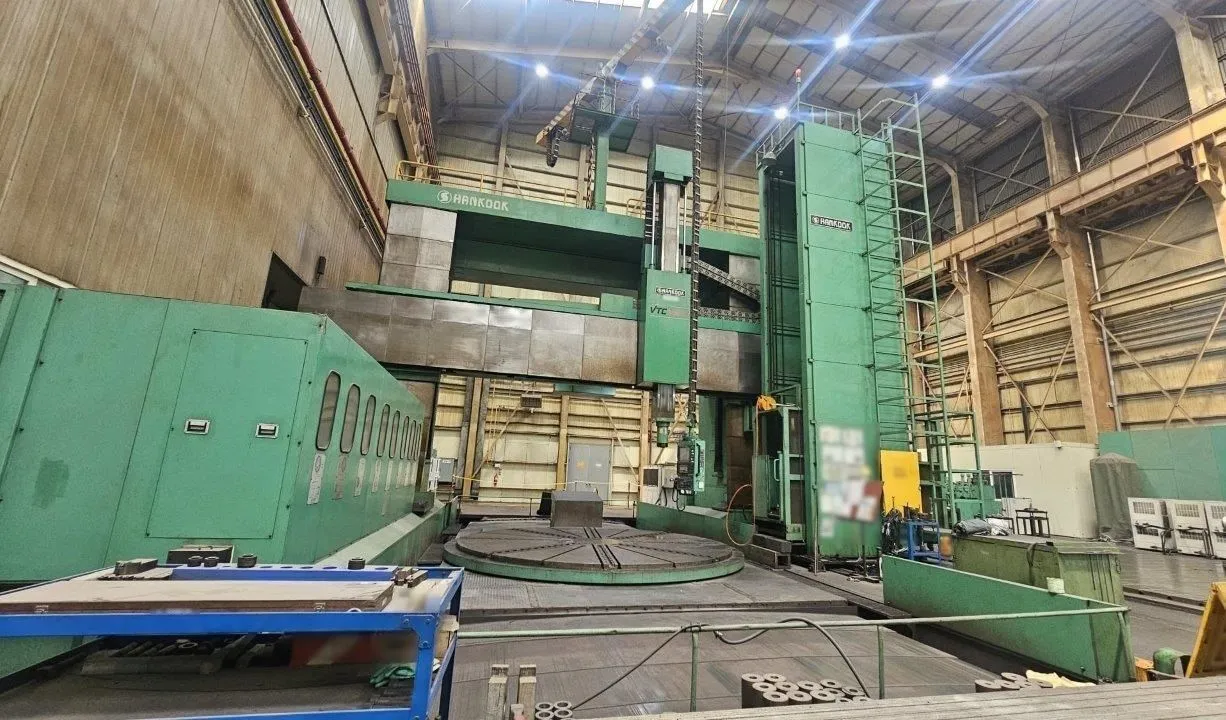

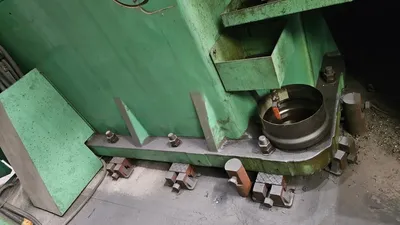

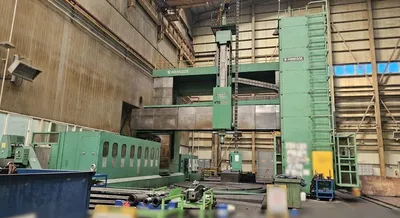

2010 HANKOOK Double Column Vertical Boring & Turning Machine w/ Traveling Table & Live Tools + Y axis

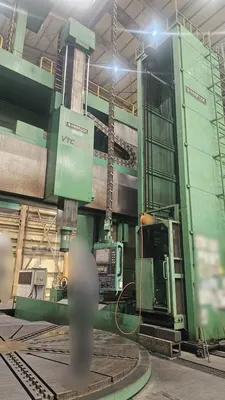

The 2010 Hankook VTC-5060Y is a heavy-duty, double-column CNC vertical boring and turning machine featuring a traveling table (Y-axis), live spindle for milling, and C-axis positioning.
Founded in 1969 in South Korea (initially as a joint venture with Japan's Dainichi Kinzoku Kogyo in 1967), Hankook Machine Tools Co., Ltd. is a leading manufacturer specializing in large-scale, heavy-duty lathes and vertical boring machines. Headquartered in Changwon, they have supplied high-tech CNC machines to over 70 countries, focusing on industries requiring massive turning and machining, such as energy and shipbuilding.
Specifications
| Table Dia | 196.8" | 4,998.7 mm |
|---|---|---|
| Swing | 236.2" | 5,999.5 mm |
| Work Ht-U/R | 177.16" | 4,499.9 mm |
| Power | 206 hp | 153.6 kW |
| RPM | 50 RPM | 50 RPM |
| Control | CNC (FANUC 31i A) | CNC (FANUC 31i A) |
| Dimensions | 889" x 551" x 442" | 889" x 551" x 442" |
| Weight | 507,000 lbs | 507,000 lbs |
Key 2010 VTC-5060Y Specifications:

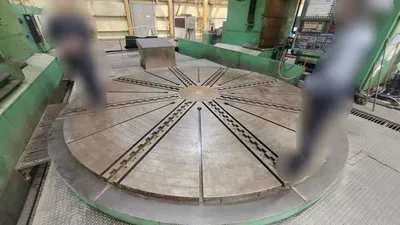

Table Diameter: 5,000 mm 196.85"
Maximum Swing: 6,000 mm 236.22"
Maximum Turning Height: 4,000 mm 157.16"
Table Load Capacity: 100 M Tonnes 220,000 lbs
Swing Ø between columns max. 6310 mm (with the column covers on)
Swing Ø between columns max. 6920 mm (without the column covers)
Height from spindle nose to table surface max. 4500 mm 177.17"
Ram size 400 x 400 mm 15.7" x 15.7"
Table Speeds: 0 - 50 RPM (2-Range)
Main Table Motor: 150kW 200HP
X-Axis Cross Travel Crossrail vertical travel: 166.73 inches (4,235 mm)
Z-Axis Ram Stroke: 98.42 inches (2,500 mm)
X-Axis Table Traverse, Ram Saddle Facing: 330.90 inches (8,405 mm)
Y-Axis Table longitudinal travel 195.85" (5000 mm)
Feeds X 1 – 8000 mm/min.
Y,Z 1 – 6000 mm/min.
W 1 – 3000 mm/min.
Live Spindle Speed: 30-3,000 RPM
Milling Spindle Motor: 50 HP
C-Axis feeds max. 0.333 rpm
Milling tool taper ISO 50
Milling spindle drive motor 60HP (37 / 45 KW)
Torque max. 2000 Nm

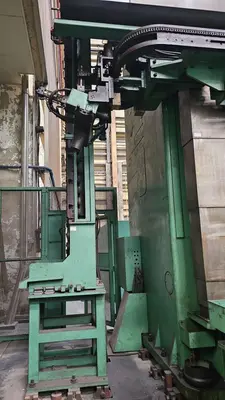

ATC Capacity: 60-Station Auto Tool Changer

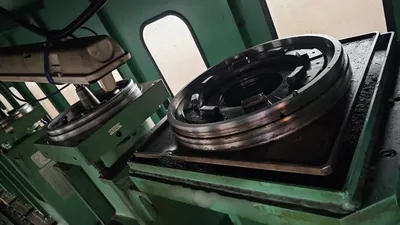

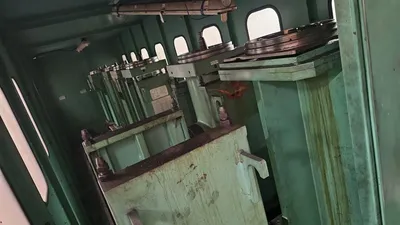

Automatic Attachment Changer (AAC)Head Mag: 8-Station

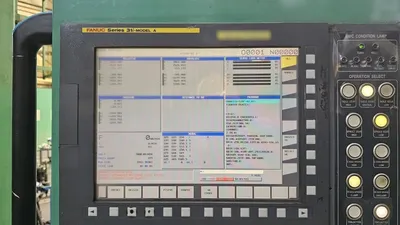

Control: Fanuc 31i-A CNC
Floor space requirement L x W 889" x 551" 22600 mm x 14000 mm
Machine height H: 442" 11232 mm
Machine weight approx. 230 Tons 230 000 kgs
Equipped With
Machine Features & Components:
Equipped With:
Fanuc 31i-A CNC Control
Power Head

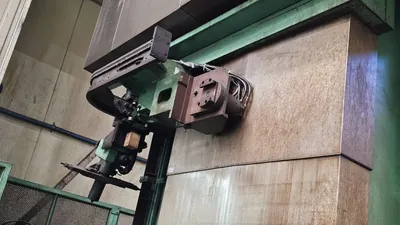

Universal Head (angle setting is manual)
Ram With Live Spindle
196.85" Independent 4-Jaw Chuck
60-Station Automatic Tool Changer

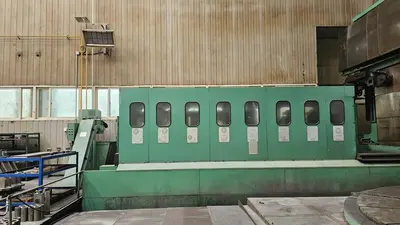

8-Station Automatic Attachment Changer (AAC)
High Pressure Coolant Thru Spindle/Tool (426 PSI)
Linear Scales (X/Z Axis)
C-Axis Contouring Table
Y-Axis Table Motion
Power Attachment
Extension Attachment
Operators Platform
Chip Conveyor
Splash Guard
Steel Sliding Way Covers
Condition Excellent
