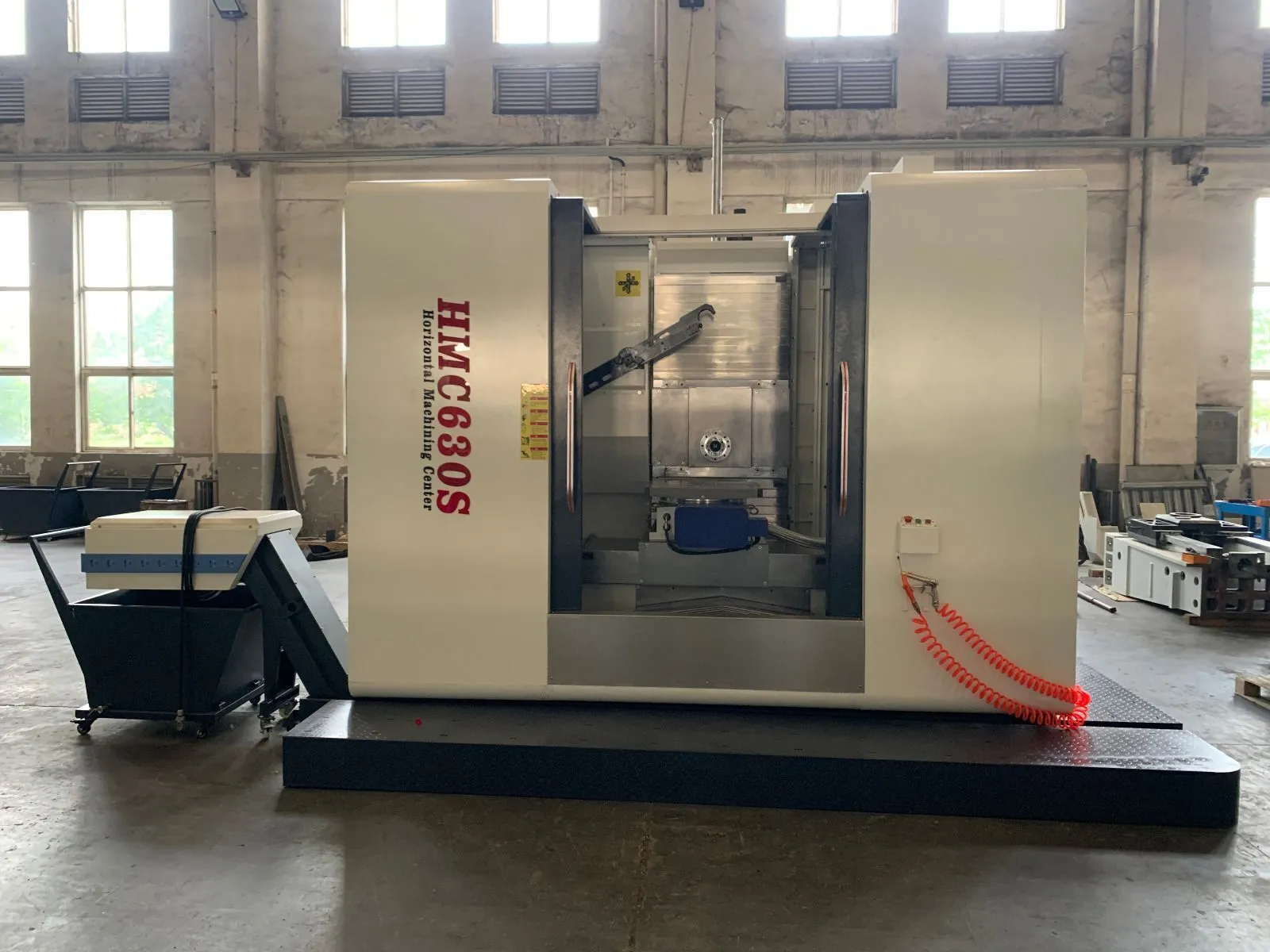

Machine is manufactured by our regular and reliable supplier in China.
Fanuc control system
Linear guideways for 3 axes: X-axis φ45 roller guide, Z-axis φ55
roller guide, Y-axis hard guideway
BT50 spindle
30-tool disc type tool magazine
Fanuc system
Taiwan-made 630×630 rotary table
Automatic chip conveyor
Taiwan-made BT50-190 spindle, 6000 rpm
Spindle oil cooling system
China Taiwan-made ball screws
Fanuc control system
Main motor: 15 kW
Delivery approx 90 days from receipt of order.
| X | 1,000 mm | 39.37" |
| Y | 750" | 19,050 mm |
| Z | 600" | 15,240 mm |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 4285×3120×3280mm | 4285×3120×3280mm |
| Weight | 12000 | 12000 |
X-Axis Travel：1000mm
Y-Axis Travel:750mm
Z-Axis Travel:600mm
Distance from Spindle Nose to Table Center 90–690mm
Distance from Spindle Center to Table Surface:-
50–800mm
Spindle Taper:BT50
Spindle Speed:8000rpm
Cutting Feed Rate:1–8000,mm/min
Rapid Traverse (X/Y/Z),m/min,20/12/20m/min
X/Y/Z Axis Motors,Nm,18/18/18Nm
Positioning Accuracy:0.01mm
Repeat Positioning Accuracy:0.006mm
Spindle Motor:15–18.5kW
Table Size:630×630mm
T-Slots (Pitch × Width × Number):122×18×5mm
Tool Magazine(Optional),Tool Magazine Type,
Arm TypeTool Capacity:30 pcs
Max. Tool Weight,kg,20
Max. Tool Length,mm,350
Max. Tool Diameter,mm,Φ110 / Φ180 (adjacent empty)
Tool Change Time,sec,7 (tool to tool)
Air Pressure Requirement, kg/cm²,8
Power Supply Requirement,kVA,50
Approx. Machine Net Weight:8000kg
Machine Overall Dimensions:4285×3120×3280mm
