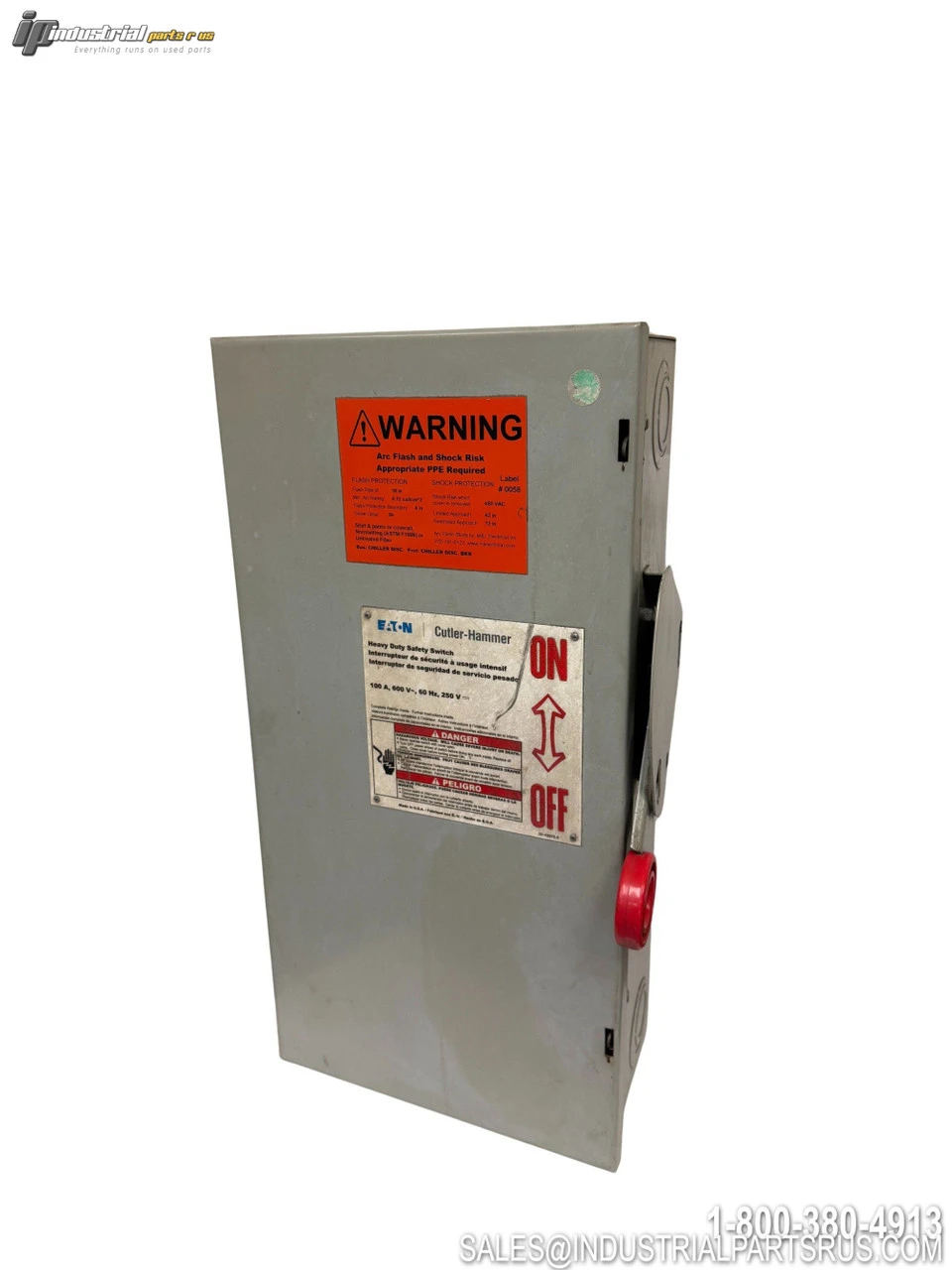

USED CUTLER-HAMMER DH363FGK

The Cutler-Hammer DH363FGK is a Series DH heavy duty fusible safety disconnect switch designed for demanding commercial and industrial applications where reliable performance and service continuity are critical. This 3-pole, 100 amp switch provides manual circuit control and overcurrent protection via installed Class H fuses, featuring visible ON/OFF indication and mechanical interlocking for enhanced safety.
Specification
Value
Brand
Cutler-Hammer
Model/Part Number
DH363FGK
Manufacturer
Eaton Corporation
Series
DH
Current Rating
100 A
Voltage AC
480-600 VAC
Voltage DC
250 VDC
Number of Poles
3
Contact Configuration
3PST
Switch Type
Fusible Heavy Duty Single Throw
Fuse Type
Class H Cartridge Time Delay
NEMA Rating
NEMA 1
Enclosure Material
Painted Steel
Mounting Type
Surface/Panel Mount
Dimensions (W x H x D)
11.13" x 21.69" x 10"
Weight
21-27 lbs
Number of Wires
3-Wire
Short Circuit Rating
100 kA RMS at 600V
Horsepower 1-Phase 480V
30 HP
Horsepower 1-Phase 600V
40 HP
Horsepower 3-Phase 480V
60 HP
Horsepower 3-Phase 600V
75 HP
Wire Range
#14-#1/0 Cu/Al
UPC
782113206417
