Or as low as $328.76 USD/month over 60 months

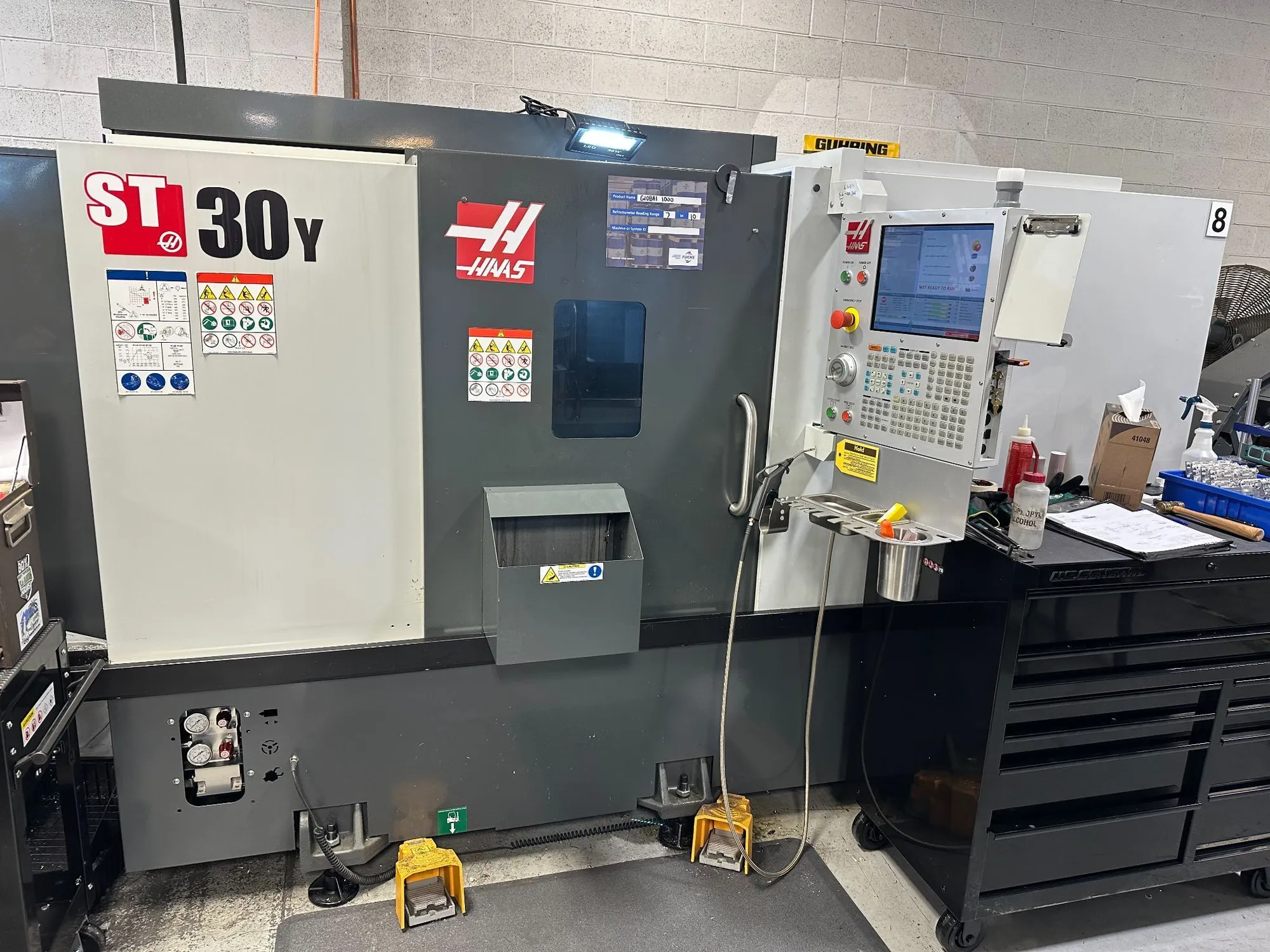

The Haas ST-30Y is a high-performance Y-axis CNC turning center designed for medium-sized parts, offering enhanced capabilities for milling, drilling, and tapping. It features a 30 hp vector drive spindle, 10" chuck (3.0" bar capacity), and a 12-station BMT65 turret, offering exceptional value for versatile "done-in-one" machining.
| Swing | 31.75" | 806.45 mm |
| Machining Length | 584.2 mm | 23" |
| # Axis | 5 | 5 |
| Bar Capacity | 3" | 76.2 mm |
| Chuck Size | 10" | 254 mm |
| Turning Diameter | 18" | 457.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| # of Turrets | 1 | 1 |
| Hole Thru | 3.5 in | |
| Control | CNC (HAAS) | CNC (HAAS) |
Bar Feeder
2 Live tool holders
Chip Conveyor
Lighting
Sub Spindle
Tool Pre-Setter
Parts Catcher
High Pressure Coolant
