2019 ACRA 1440C Engine Lathe available. Model 1440C, in used condition. Ideal for machining tasks, this lathe from ACRA, a well-known manufacturer, combines quality and performance.
| Swing | 14" | 355.6 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Swing Over Cross Slide | 8.625" | 219.07 mm |
| Dimensions | 83 x 34 x 50 | 83 x 34 x 50 |
| Weight | 2700 lbs | 2700 lbs |

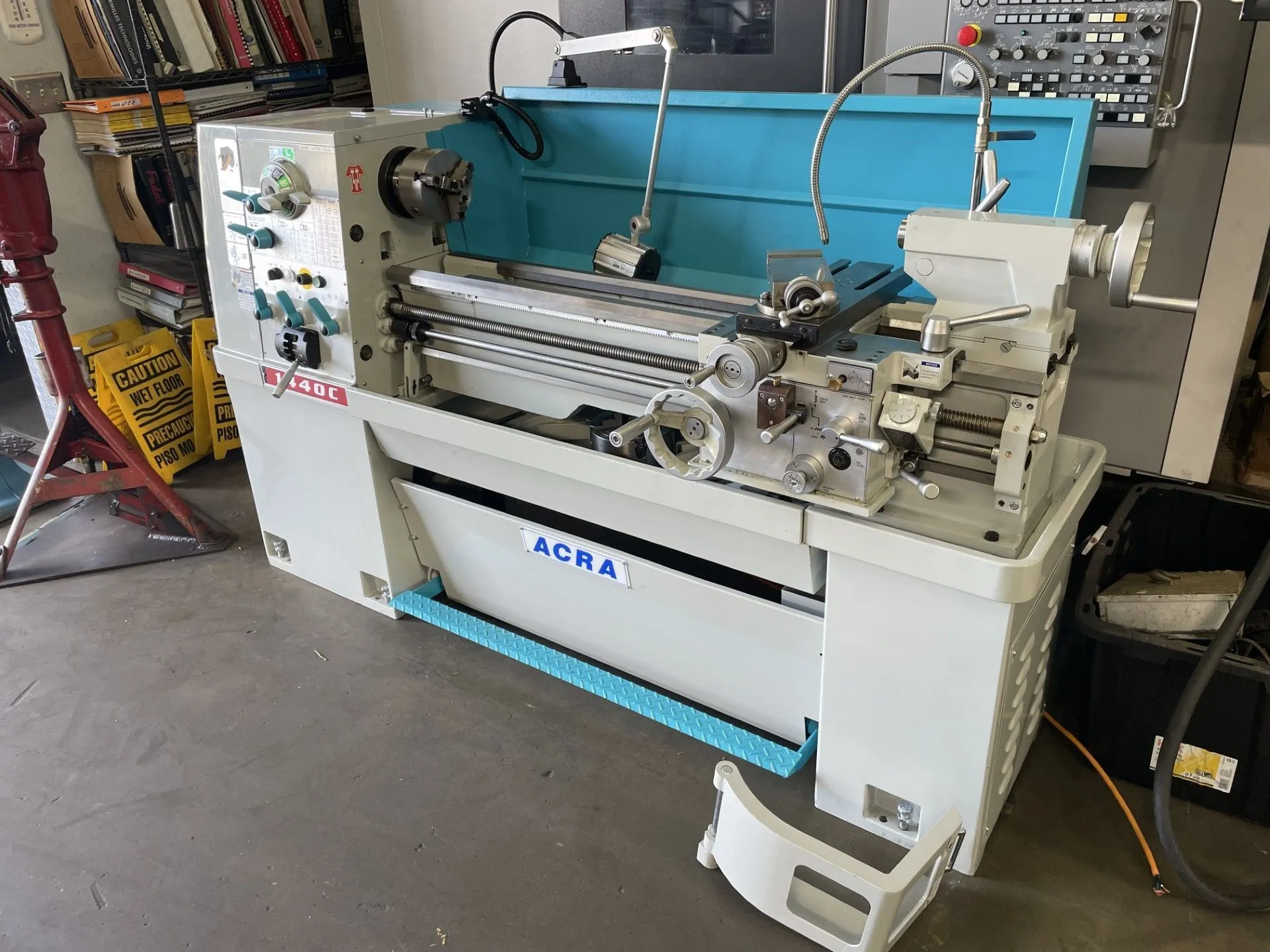

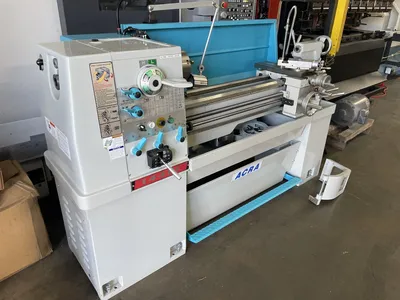

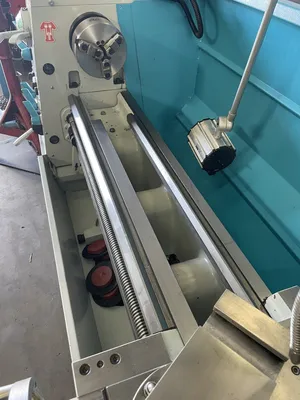

2019 ACRA 1440C Engine Lathe #8184 #1
SPECIFICATIONS:
Series: 1440C
Swing over Bed: 14"
Swing over Cross Slide: 8-5/8"
Distance Between Centers: 40"
Swing in Gap: 20"
Spindle Bore: 1-1/2"
Spindle Nose: D1-4
Spindle RPM: 80 ~ 2,000
Number of Speeds: 8
Main Motor: 5 HP
Voltage: 230/460V AC ~ 3 PH
Dimensions: 83" x 34" x 50"
Weight: 2700 lbs.
Country of Origin: Taiwan
