USED WHITING TIGER 6 MOTOR

SERIAL ....................... 12787
NEW .......................... 2002
MAIN HOOK CAPACITY ........... 70 TON (63.5 METRIC TON)
AUXILIARY HOOK CAPACITY ...... 35 TON
SPAN ......................... 74'9"
MODEL ........................ TIGER 6 MOTOR
CRANE HEADROOM ............... 6'6" (WHEEL BOTTOM TO TOP OF CRANE)
LENGTH OF 8 WHEEL END TRUCK .. 31'6"
PENDANT CONTROL .............. YES
AVAILABLE LIFT ............... 49'
BRIDGE SPEED ................. 200 FPM
TROLLEY SPEED ................ 150 FPM
MAIN HOIST SPEED ............. 18 FPM
AUXILIARY HOIST SPEED ........ 17 FPM

BRIDGE MOTORS ................ 2 @ 20 HP
TROLLEY MOTORS ............... 2 @10 HP
MAIN HOIST MOTOR ............. 100 HP
AUXILIARY HOIST MOTOR ........ 40 HP

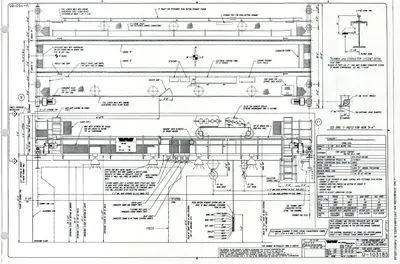

*** DRAWINGS AVAIALBLE ***

Brand
WHITING
Type
Cranes, Bridge & Overhead
Stock No.
13211
Contact Us
